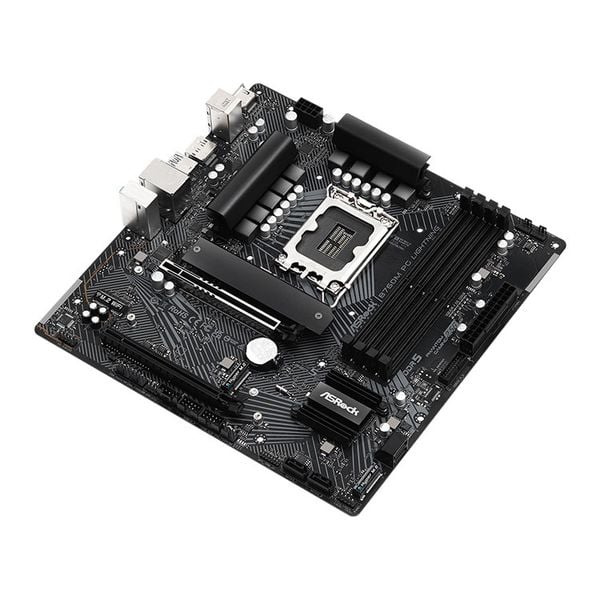

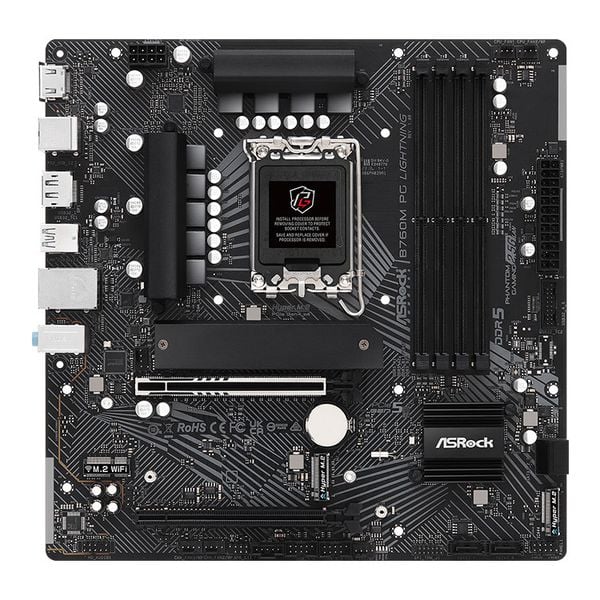

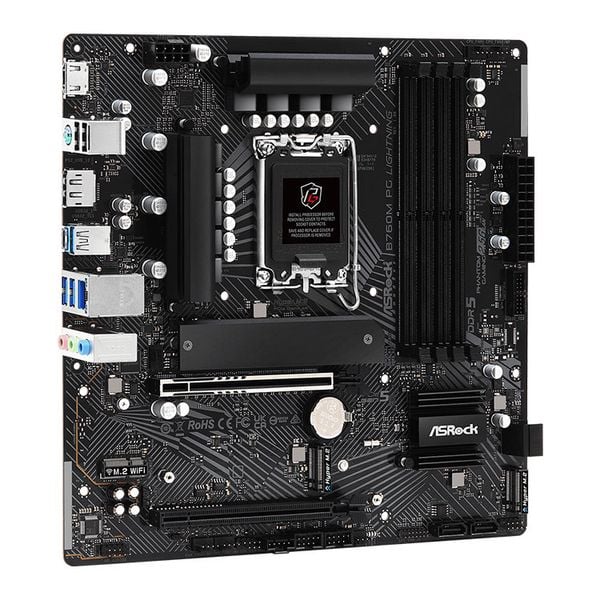

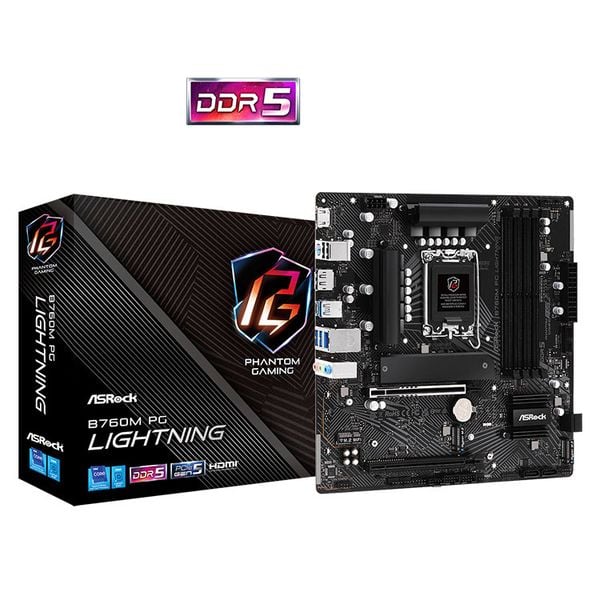

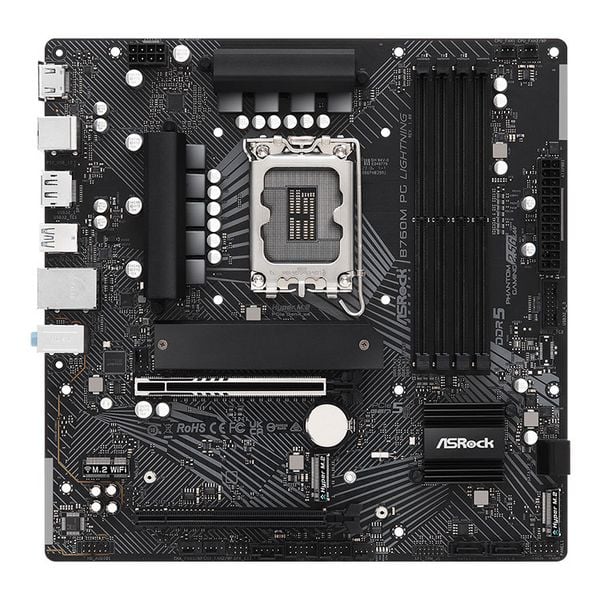

Mainboard ASRock B760M PG Lightning | Intel B760, Socket 1700, Micro ATX, 4 khe DDR5

Đóng
  • Bài viết đánh giá



⚙ THÔNG SỐ SẢN PHẨM:

  • Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700)
  • 7+1+1 Power Phase, Dr.MOS for VCore+GT
  • Supports DDR5 7200MHz (OC)
  • 1 PCIe 5.0 x16, 1 PCIe 3.0 x16, 1 M.2 Key E for WiFi

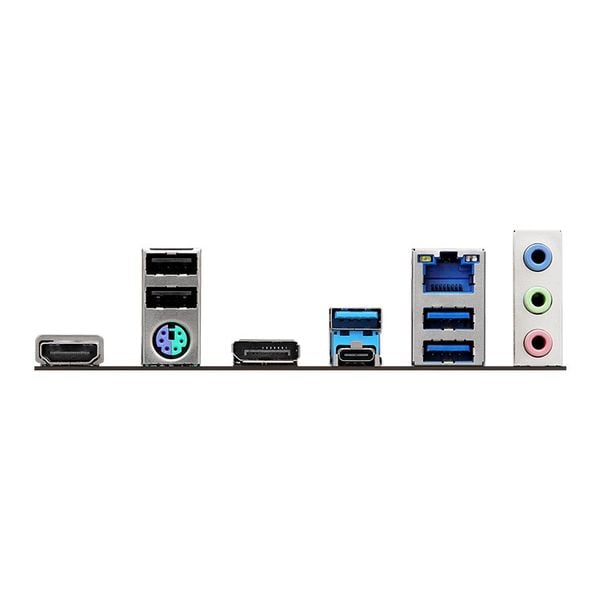

  • Graphics Output Options: HDMI, DisplayPort
  • Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
  • 4 SATA3, 3 Hyper M.2 (PCIe Gen4x4)
  • 1 USB 3.2 Gen1 Type-C (Rear),
  • 5 USB 3.2 Gen1 Type-A (3 Rear, 2 Front),
  • 6 USB 2.0 (2 Rear, 4 Front)
  • Dragon 2.5G LAN
  • Supports ASRock Auto Driver Installer
    Unique Feature    Superb Productivity
    - PCIe Gen5 (Graphics)
    - Dual Channel DDR5
    Rock-Solid Durability
    - 7+1+1 Power Phase, 50A Dr.MOS for VCore+GT
    Ultrafast Connectivity
    - 2.5G LAN EZ Update
    - ASRock Auto Driver Installer
    EZ Troubleshooter
    - ASRock Post Status Checker
    CPU    - Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700)
    - Supports Intel® Hybrid Technology
    - Supports Intel® Turbo Boost Max 3.0 Technology
    - Supports Intel® Thermal Velocity Boost (TVB)
    - Supports Intel® Adaptive Boost Technology (ABT)
    Chipset    - Intel® B760
    Memory    - Dual Channel DDR5 Memory Technology
    - 4 x DDR5 DIMM Slots
    - Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)*
    - Max. capacity of system memory: 192GB
    - Supports Intel® Extreme Memory Profile (XMP) 3.0
    *1DPC 1R Up to 7200+ MHz (OC), 4800 MHz Natively.
    1DPC 2R Up to 6000+ MHz (OC), 4400 MHz Natively.
    2DPC 1R Up to 5600+ MHz (OC), 4000 MHz Natively.
    2DPC 2R Up to 4800+ MHz (OC), 3600 MHz Natively.
    BIOS    - 128Mb AMI UEFI Legal BIOS with GUI support
    Graphics    - Intel® Xe Graphics Architecture (Gen 12)
    - 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
    - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
    Audio    - 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
    - Nahimic Audio
    LAN    - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
    - Dragon RTL8125BG
    - Supports Phantom Gaming LAN Software
    - Smart Auto Adjust Bandwidth Control
    - Visual User Friendly UI
    - Visual Network Usage Statistics
    - Optimized Default Setting for Game, Browser, and Streaming Modes
    - User Customized Priority Control
    Slots    CPU:
    - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
    Chipset:
    - 1 x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode*
    - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)
    - Supports AMD CrossFire™
    Storage    CPU:
    - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
    Chipset:
    - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*











 Xem thêm các sản phẩm khác giá ưu đãi tại Tin Học Ngôi SaoAsus ROG Strix Z590 Artx 3070tiamd ryzen 5 3600Intel Core i5 12600KAsus H510M Kamd radeon graphicsAsus TUF Gaming B550M Plus DDR4adm athlon 3000gGigabyte H510M S2H V2LG 27MP400 BLC24F390FHEXXVGigabyte H610M H V2rtx 3080 tirtx 3090tiỔ cứng SSD Samsung 980 500GSeagate BarraCuda ST2000DM008MZ 77E500BWram ddr4cpu core i5Màn hình máy tính GamingMZ V8P500BWIntel Core i5 13600Kcard màn hình 570Dell E2223HNi9 13900kGA Z690 Aero GSamsung LS22A336NHEXXVram kingmax 8gbcách tắt bàn phím laptopLF24T350FHEXXVchuột không dây giá rẻ



2,888,000₫

Mã sản phẩm: M.AR.B760M.PG.LN.D5



      ⚙ THÔNG SỐ SẢN PHẨM:

      • Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700)
      • 7+1+1 Power Phase, Dr.MOS for VCore+GT
      • Supports DDR5 7200MHz (OC)
      • 1 PCIe 5.0 x16, 1 PCIe 3.0 x16, 1 M.2 Key E for WiFi
      • Graphics Output Options: HDMI, DisplayPort
      • Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
      • 4 SATA3, 3 Hyper M.2 (PCIe Gen4x4)
      • 1 USB 3.2 Gen1 Type-C (Rear),
      • 5 USB 3.2 Gen1 Type-A (3 Rear, 2 Front),
      • 6 USB 2.0 (2 Rear, 4 Front)
      • Dragon 2.5G LAN
      • Supports ASRock Auto Driver Installer
      Xem thêm cấu hình chi tiết

      Gọi đặt mua 1900 0243 (8:30 - 21:00)

          Unique Feature    Superb Productivity
          - PCIe Gen5 (Graphics)
          - Dual Channel DDR5
          Rock-Solid Durability
          - 7+1+1 Power Phase, 50A Dr.MOS for VCore+GT
          Ultrafast Connectivity
          - 2.5G LAN EZ Update
          - ASRock Auto Driver Installer
          EZ Troubleshooter
          - ASRock Post Status Checker
          CPU    - Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700)
          - Supports Intel® Hybrid Technology
          - Supports Intel® Turbo Boost Max 3.0 Technology
          - Supports Intel® Thermal Velocity Boost (TVB)
          - Supports Intel® Adaptive Boost Technology (ABT)
          Chipset    - Intel® B760
          Memory    - Dual Channel DDR5 Memory Technology
          - 4 x DDR5 DIMM Slots
          - Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)*
          - Max. capacity of system memory: 192GB
          - Supports Intel® Extreme Memory Profile (XMP) 3.0
          *1DPC 1R Up to 7200+ MHz (OC), 4800 MHz Natively.
          1DPC 2R Up to 6000+ MHz (OC), 4400 MHz Natively.
          2DPC 1R Up to 5600+ MHz (OC), 4000 MHz Natively.
          2DPC 2R Up to 4800+ MHz (OC), 3600 MHz Natively.
          BIOS    - 128Mb AMI UEFI Legal BIOS with GUI support
          Graphics    - Intel® Xe Graphics Architecture (Gen 12)
          - 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
          - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
          Audio    - 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
          - Nahimic Audio
          LAN    - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
          - Dragon RTL8125BG
          - Supports Phantom Gaming LAN Software
          - Smart Auto Adjust Bandwidth Control
          - Visual User Friendly UI
          - Visual Network Usage Statistics
          - Optimized Default Setting for Game, Browser, and Streaming Modes
          - User Customized Priority Control
          Slots    CPU:
          - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
          Chipset:
          - 1 x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode*
          - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)
          - Supports AMD CrossFire™
          Storage    CPU:
          - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
          Chipset:
          - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
