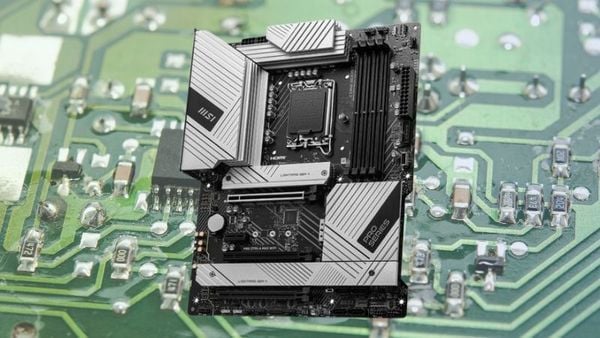

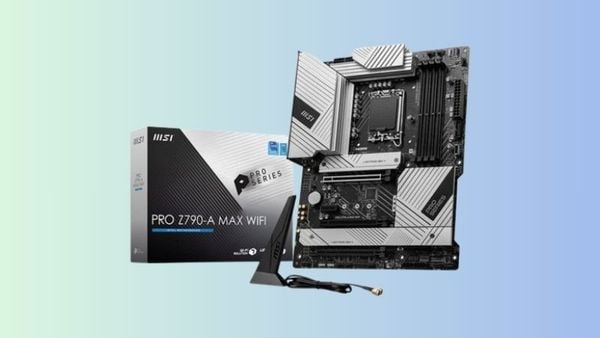

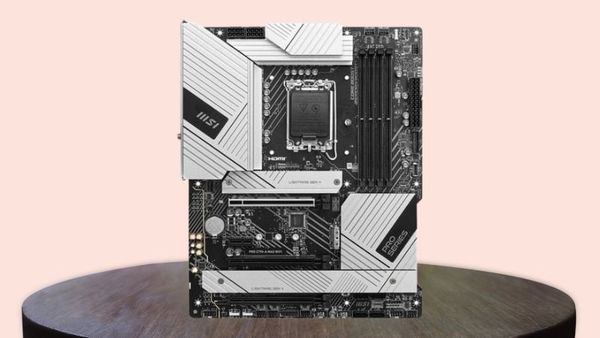

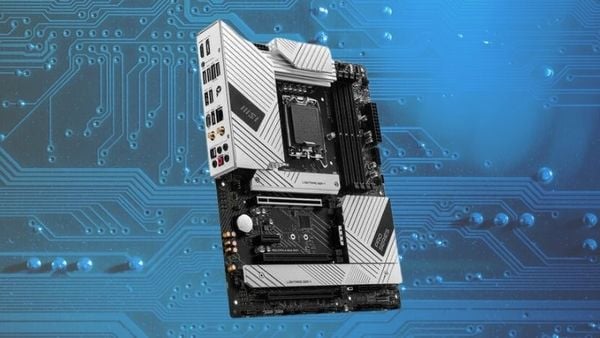

Mainboard MSI PRO Z790-A MAX WIFI

Đóng
  • Bài viết đánh giá

💰 HỖ TRỢ TRẢ GÓP THẺ TÍN DỤNG mPOS & CÔNG TY TÀI CHÍNH (XEM TẠI ĐÂY)


⚙ THÔNG SỐ CƠ BẢN:

  • Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
  • Supports DDR5 Memory, Dual Channel DDR5 7800+MHz (OC)
  • Enhanced Power Design: 16+1+1 DRPS with 80A SPS, dual 8-pin CPU power connectors, Core Boost, Memory Boost
  • Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
  • High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
  • Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2
  • Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
  • 2.5G LAN with Wi-Fi 7 Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience

🛒 Xem thêm các sản phẩm Mainboard - Bo mạch chủ tại đây



BẢNG THÔNG SỐ CHI TIẾT:

    CHIPSET    INTEL Z790
    CPU    Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
        LGA 1700
    MEMORY    4x DDR5 UDIMM, Maximum Memory Capacity 192GB
        Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
        Max. overclocking frequency:
        • 1DPC 1R Max speed up to 7800+ MHz
        • 1DPC 2R Max speed up to 6600+ MHz
        • 2DPC 1R Max speed up to 6400+ MHz
        • 2DPC 2R Max speed up to 5600+ MHz

        Supports Intel® XMP 3.0 OC
        Supports Dual-Controller Dual-Channel mode
        Supports non-ECC, un-buffered memory
    ONBOARD GRAPHICS    1x HDMI™
        Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz*
        1x DisplayPort
        Support DP 1.4, maximum resolution of 8K 60Hz*
        *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
    SLOT    3x PCI-E x16 slot
        1x PCI-E x1 slot
        PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
        PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
        PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
        PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
    STORAGE    4x M.2
        M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices
        M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
        M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
        M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
        6x SATA 6G
    RAID    Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
        Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
    USB    2x USB 2.0 (Rear)
        4x USB 2.0 (Front)
        2x USB 3.2 Gen1 Type A (Rear)
        2x USB 3.2 Gen1 Type A (Front)
        3x USB 3.2 Gen2 Type A (Rear)
        1x USB 3.2 Gen2 Type C (Front)
        1x USB 3.2 Gen2x2 Type C (Rear)
    LAN    Intel® 2.5Gbps LAN
    WIRELESS LAN & BLUETOOTH    Wi-Fi 7
        The Wireless module is pre-installed in the M.2 (Key-E) slot
        Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps
        Supports 802.11 a/ b/ g/ n/ ac/ ax/ be

        Supports Bluetooth® 5.4**, MLO, 4KQAM

        * 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 SV3.
        ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 support schedule depends on MSFT Windows 11 plan.
    AUDIO    Realtek® ALC4080 Codec
        7.1-Channel USB High Performance Audio
        Supports S/PDIF output
    INTERNAL IO    1x Power Connector(ATX_PWR)
        2x Power Connector(CPU_PWR)
        1x CPU Fan
        1x Pump Fan
        6x System Fan
        2x Front Panel (JFP)
        1x Chassis Intrusion (JCI)
        1x Front Audio (JAUD)
        1x TBT connector (JTBT, supports RTD3)
        1x Tuning Controller connector(JDASH)
        3x Addressable V2 RGB LED connector (JARGB_V2)
        1x RGB LED connector(JRGB)
        1x TPM pin header(Support TPM 2.0)
        4x USB 2.0 ports
        2x USB 3.2 Gen1 Type A ports
        1x USB 3.2 Gen2 Type C ports
        1x USB4 card connector (JTBT_U4_1, supports RTD3)
    LED FEATURE    4x EZ Debug LED
    BACK PANEL PORTS    DisplayPort
        USB 2.0
        2.5G LAN
        Wi-Fi / Bluetooth
        Audio Connectors
        HDMI™
        Flash BIOS Button
        USB 3.2 Gen 1 5Gbps (Type-A)
        USB 3.2 Gen 2 10Gbps (Type-A)
        USB 3.2 Gen 2x2 20Gbps (Type-C)
        S/PDIF-OUT

    OPERATING SYSTEM    Support for Windows® 11 64-bit
    PCB INFO    ATX
        243.84mmx304.8mm

6,839,000₫

Mã sản phẩm: M.MSI.Z790-A.MAX.WF.6E.D5

      💰 HỖ TRỢ TRẢ GÓP THẺ TÍN DỤNG mPOS & CÔNG TY TÀI CHÍNH (XEM TẠI ĐÂY)


      ⚙ THÔNG SỐ CƠ BẢN:

      • Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
      • Supports DDR5 Memory, Dual Channel DDR5 7800+MHz (OC)
      • Enhanced Power Design: 16+1+1 DRPS with 80A SPS, dual 8-pin CPU power connectors, Core Boost, Memory Boost
      • Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
      • High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
      • Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2
      • Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
      • 2.5G LAN with Wi-Fi 7 Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
      • AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience

      🛒 Xem thêm các sản phẩm Mainboard - Bo mạch chủ tại đây



      Xem thêm cấu hình chi tiết
      SẮP VỀ HÀNG (Vui lòng liên hệ trực tiếp)

      Gọi đặt mua 1900 0243 (8:30 - 21:00)

      BẢNG THÔNG SỐ CHI TIẾT:

          CHIPSET    INTEL Z790
          CPU    Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
              LGA 1700
          MEMORY    4x DDR5 UDIMM, Maximum Memory Capacity 192GB
              Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
              Max. overclocking frequency:
              • 1DPC 1R Max speed up to 7800+ MHz
              • 1DPC 2R Max speed up to 6600+ MHz
              • 2DPC 1R Max speed up to 6400+ MHz
              • 2DPC 2R Max speed up to 5600+ MHz

              Supports Intel® XMP 3.0 OC
              Supports Dual-Controller Dual-Channel mode
              Supports non-ECC, un-buffered memory
          ONBOARD GRAPHICS    1x HDMI™
              Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz*
              1x DisplayPort
              Support DP 1.4, maximum resolution of 8K 60Hz*
              *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
          SLOT    3x PCI-E x16 slot
              1x PCI-E x1 slot
              PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
              PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
              PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
              PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
          STORAGE    4x M.2
              M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices
              M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
              M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
              M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
              6x SATA 6G
          RAID    Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
              Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
          USB    2x USB 2.0 (Rear)
              4x USB 2.0 (Front)
              2x USB 3.2 Gen1 Type A (Rear)
              2x USB 3.2 Gen1 Type A (Front)
              3x USB 3.2 Gen2 Type A (Rear)
              1x USB 3.2 Gen2 Type C (Front)
              1x USB 3.2 Gen2x2 Type C (Rear)
          LAN    Intel® 2.5Gbps LAN
          WIRELESS LAN & BLUETOOTH    Wi-Fi 7
              The Wireless module is pre-installed in the M.2 (Key-E) slot
              Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps
              Supports 802.11 a/ b/ g/ n/ ac/ ax/ be

              Supports Bluetooth® 5.4**, MLO, 4KQAM

              * 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 SV3.
              ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 support schedule depends on MSFT Windows 11 plan.
          AUDIO    Realtek® ALC4080 Codec
              7.1-Channel USB High Performance Audio
              Supports S/PDIF output
          INTERNAL IO    1x Power Connector(ATX_PWR)
              2x Power Connector(CPU_PWR)
              1x CPU Fan
              1x Pump Fan
              6x System Fan
              2x Front Panel (JFP)
              1x Chassis Intrusion (JCI)
              1x Front Audio (JAUD)
              1x TBT connector (JTBT, supports RTD3)
              1x Tuning Controller connector(JDASH)
              3x Addressable V2 RGB LED connector (JARGB_V2)
              1x RGB LED connector(JRGB)
              1x TPM pin header(Support TPM 2.0)
              4x USB 2.0 ports
              2x USB 3.2 Gen1 Type A ports
              1x USB 3.2 Gen2 Type C ports
              1x USB4 card connector (JTBT_U4_1, supports RTD3)
          LED FEATURE    4x EZ Debug LED
          BACK PANEL PORTS    DisplayPort
              USB 2.0
              2.5G LAN
              Wi-Fi / Bluetooth
              Audio Connectors
              HDMI™
              Flash BIOS Button
              USB 3.2 Gen 1 5Gbps (Type-A)
              USB 3.2 Gen 2 10Gbps (Type-A)
              USB 3.2 Gen 2x2 20Gbps (Type-C)
              S/PDIF-OUT

          OPERATING SYSTEM    Support for Windows® 11 64-bit
          PCB INFO    ATX
              243.84mmx304.8mm
