Mainboard MSI PRO B760M-P | Intel B760, Socket 1700, mATX, 4 khe DDR5 – TINHOCNGOISAO.COM

Mainboard MSI PRO B760M-P | Intel B760, Socket 1700, mATX, 4 khe DDR5

Đóng
  • Bài viết đánh giá





⚙ THÔNG SỐ CƠ BẢN:

  • Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
  • Supports DDR5 Memory, Dual Channel DDR5 6800+MHz (OC)
  • Core Boost : With premium layout and digital power design to support more cores and provide better performance
  • Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
  • Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
  • AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
  • Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength

🛒 Xem thêm các sản phẩm Mainboard - Bo mạch chủ tại đây



BẢNG THÔNG SỐ CHI TIẾT:

    Chipset    INTEL B760
    CPU    Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
        LGA 1700
    MEMORY    4x DDR5, Maximum Memory Capacity 192GB
        Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/
        5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
        Max. overclocking frequency:
        • 1DPC 1R Max speed up to 6800+ MHz
        • 1DPC 2R Max speed up to 6400+ MHz
        • 2DPC 1R Max speed up to 6000+ MHz
        • 2DPC 2R Max speed up to 5600+ MHz
        Supports Intel® XMP 3.0 OC
        Supports Dual-Controller Dual-Channel mode
        Supports non-ECC, un-buffered memory
    ONBOARD GRAPHICS    1x HDMI™
        Support HDMI™ 1.4, maximum resolution of 4K 30Hz*
        1x DisplayPort
        Support DP 1.4, maximum resolution of 4K 60Hz*
        1x VGA
        Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
        *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
    SLOT    1x PCI-E x16 slot
        2x PCI-E x1 slot
        PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
        PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)
        PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset)
    STORAGE    2x M.2
        M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
        M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
        4x SATA 6G
        * SATA5 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
    RAID    Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
    USB    4x USB 2.0 (Rear)
        4x USB 2.0 (Front)
        1x USB 3.2 Gen1 Type A (Rear)
        2x USB 3.2 Gen1 Type A (Front)
        1x USB 3.2 Gen2 Type C (Rear)
    LAN    Realtek® RTL8111H Gigabit LAN
    AUDIO    Realtek® ALC897 Codec
        7.1-Channel High Definition Audio
    INTERNAL IO    1x Power Connector(ATX_PWR)
        1x Power Connector(CPU_PWR)
        1x CPU Fan
        2x System Fan
        2x Front Panel (JFP)
        1x Chassis Intrusion (JCI)
        1x Front Audio (JAUD)
        1x Printer Port (JLPT)
        1x Com Port (JCOM)
        1x RGB LED connector(JRGB)
        1x TPM pin header(Support TPM 2.0)
        4x USB 2.0 ports
        2x USB 3.2 Gen1 Type A ports
    LED FEATURE    4x EZ Debug LED

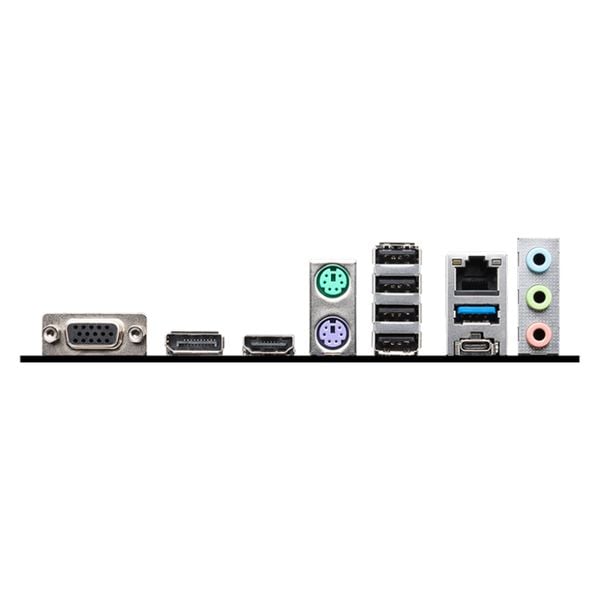

    BACK PANEL PORTS    VGA
        DisplayPort
        HDMI™
        Keyboard / Mouse
        USB 2.0
        LAN port
        Audio Connectors
        USB 3.2 Gen 1 5Gbps (Type-A)
        USB 3.2 Gen 2 10Gbps (Type-C)
    OPERATING SYSTEM    Support for Windows® 11 64-bit, Windows® 10 64-bit
    PCB INFO    mATX
        243.84mmx243.84mm

2,799,000₫

Mã sản phẩm: M.MSI.B760M.P.D5





      ⚙ THÔNG SỐ CƠ BẢN:

      • Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
      • Supports DDR5 Memory, Dual Channel DDR5 6800+MHz (OC)
      • Core Boost : With premium layout and digital power design to support more cores and provide better performance
      • Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
      • Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
      • AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
      • Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength

      🛒 Xem thêm các sản phẩm Mainboard - Bo mạch chủ tại đây



      Xem thêm cấu hình chi tiết

      Gọi đặt mua 1900 0243 (8:30 - 21:00)

      MÔ TẢ SẢN PHẨM
      BẢNG THÔNG SỐ CHI TIẾT:

          Chipset    INTEL B760
          CPU    Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
              LGA 1700
          MEMORY    4x DDR5, Maximum Memory Capacity 192GB
              Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/
              5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
              Max. overclocking frequency:
              • 1DPC 1R Max speed up to 6800+ MHz
              • 1DPC 2R Max speed up to 6400+ MHz
              • 2DPC 1R Max speed up to 6000+ MHz
              • 2DPC 2R Max speed up to 5600+ MHz
              Supports Intel® XMP 3.0 OC
              Supports Dual-Controller Dual-Channel mode
              Supports non-ECC, un-buffered memory
          ONBOARD GRAPHICS    1x HDMI™
              Support HDMI™ 1.4, maximum resolution of 4K 30Hz*
              1x DisplayPort
              Support DP 1.4, maximum resolution of 4K 60Hz*
              1x VGA
              Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
              *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
          SLOT    1x PCI-E x16 slot
              2x PCI-E x1 slot
              PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
              PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)
              PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset)
          STORAGE    2x M.2
              M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
              M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
              4x SATA 6G
              * SATA5 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
          RAID    Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
          USB    4x USB 2.0 (Rear)
              4x USB 2.0 (Front)
              1x USB 3.2 Gen1 Type A (Rear)
              2x USB 3.2 Gen1 Type A (Front)
              1x USB 3.2 Gen2 Type C (Rear)
          LAN    Realtek® RTL8111H Gigabit LAN
          AUDIO    Realtek® ALC897 Codec
              7.1-Channel High Definition Audio
          INTERNAL IO    1x Power Connector(ATX_PWR)
              1x Power Connector(CPU_PWR)
              1x CPU Fan
              2x System Fan
              2x Front Panel (JFP)
              1x Chassis Intrusion (JCI)
              1x Front Audio (JAUD)
              1x Printer Port (JLPT)
              1x Com Port (JCOM)
              1x RGB LED connector(JRGB)
              1x TPM pin header(Support TPM 2.0)
              4x USB 2.0 ports
              2x USB 3.2 Gen1 Type A ports
          LED FEATURE    4x EZ Debug LED
          BACK PANEL PORTS    VGA
              DisplayPort
              HDMI™
              Keyboard / Mouse
              USB 2.0
              LAN port
              Audio Connectors
              USB 3.2 Gen 1 5Gbps (Type-A)
              USB 3.2 Gen 2 10Gbps (Type-C)
          OPERATING SYSTEM    Support for Windows® 11 64-bit, Windows® 10 64-bit
          PCB INFO    mATX
              243.84mmx243.84mm
