Mainboard MSI B760M Gaming Plus WiFi – TINHOCNGOISAO.COM

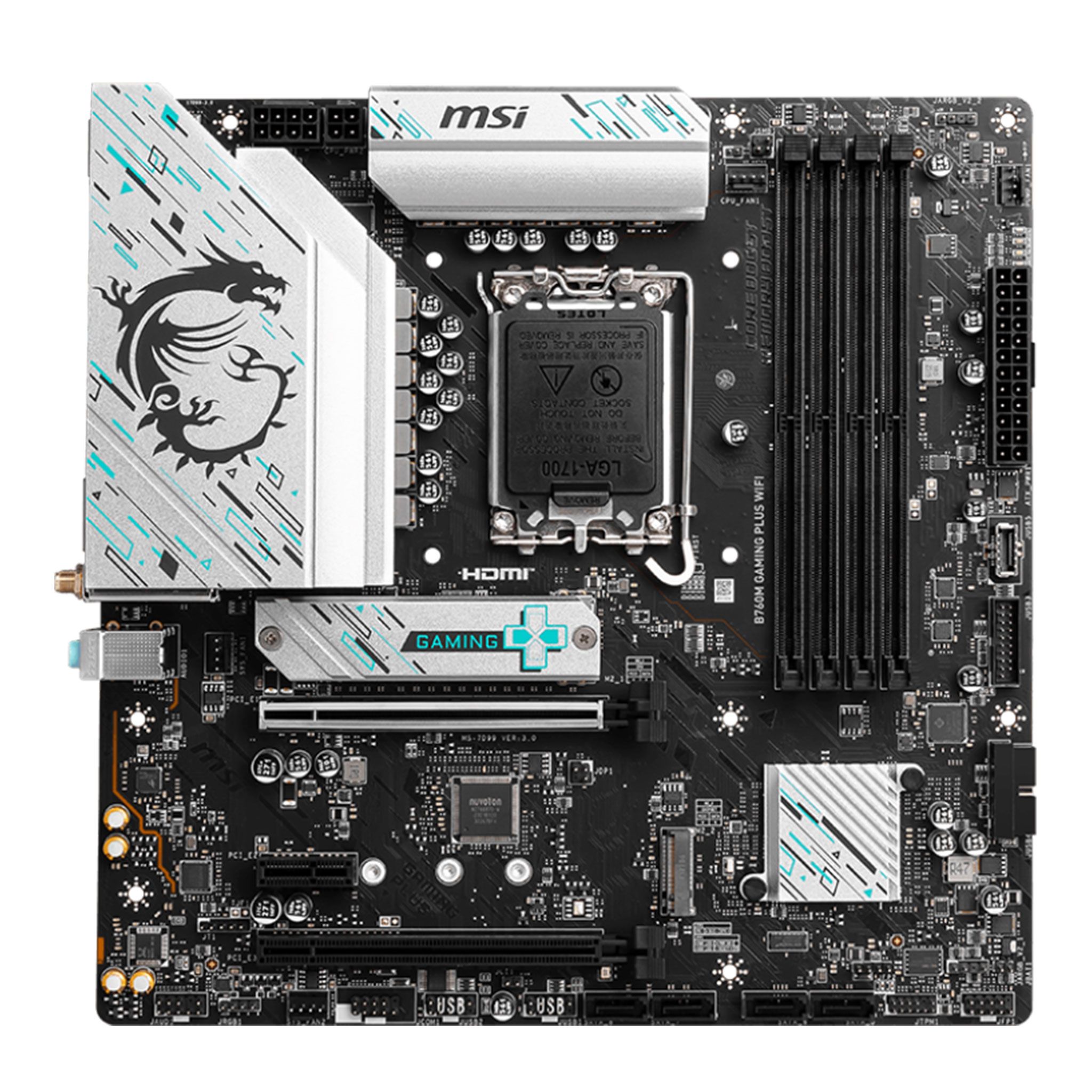

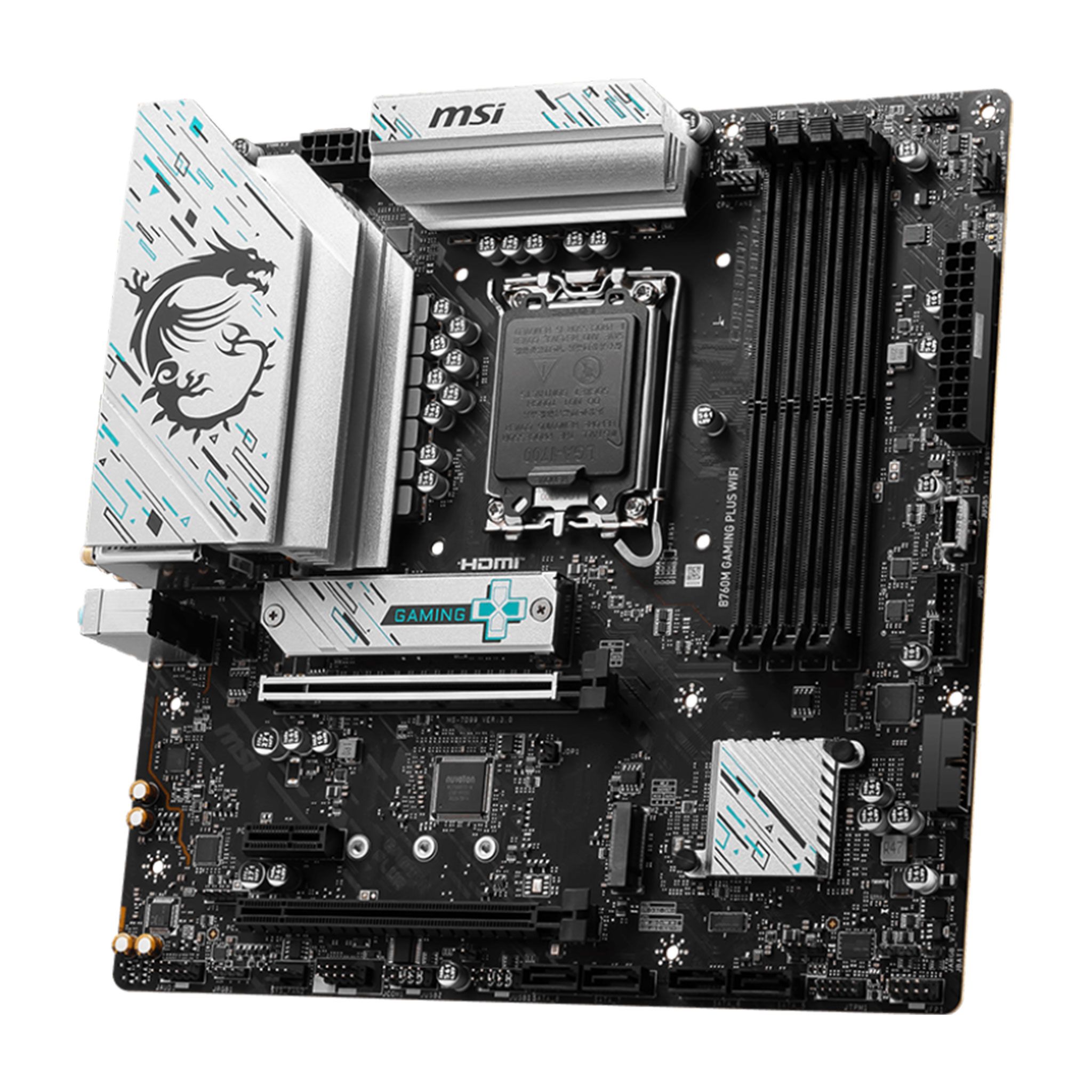

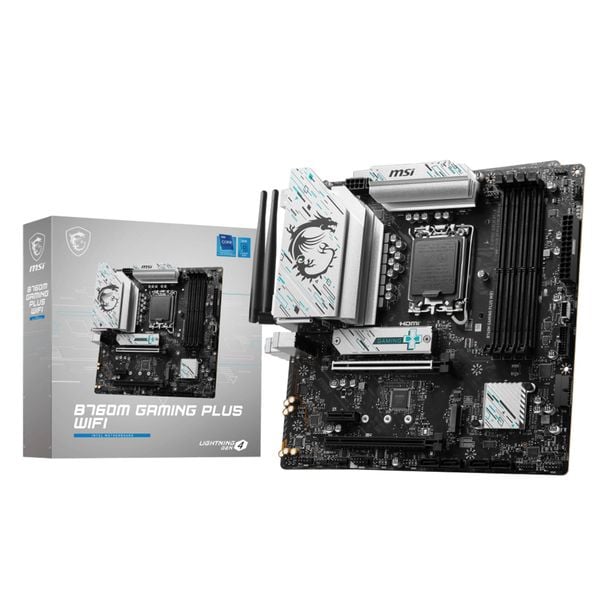

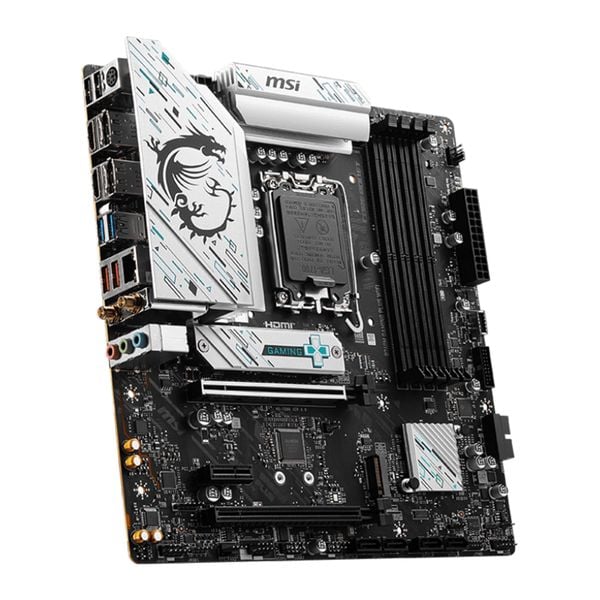

Mainboard MSI B760M Gaming Plus WiFi

Đóng
  • Bài viết đánh giá

💰 HỖ TRỢ TRẢ GÓP THẺ TÍN DỤNG mPOS & CÔNG TY TÀI CHÍNH (XEM TẠI ĐÂY)


⚙ THÔNG SỐ CƠ BẢN:

  • Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
  • Supports DDR5 Memory, Dual Channel DDR5 6800+MHz (OC)
  • Enhanced Power Design: 12+1 Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost
  • Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads are built for high performance system and non-stop gaming experience
  • Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, USB 3.2 Gen 2 10G
  • 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • High Quality PCB: 6-layer PCB made by 2oz thickened copper
  • Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
BẢNG THÔNG SỐ:

    CHIPSET    INTEL B760
    CPU    Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
        LGA 1700
    MEMORY    4x DDR5, Maximum Memory Capacity 192GB
        Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
        Max. overclocking frequency:
        • 1DPC 1R Max speed up to 6800+ MHz
        • 1DPC 2R Max speed up to 6400+ MHz
        • 2DPC 1R Max speed up to 6000+ MHz
        • 2DPC 2R Max speed up to 5600+ MHz

        Supports Intel® XMP 3.0 OC
        Supports Dual-Controller Dual-Channel mode
        Supports non-ECC, un-buffered memory
    ONBOARD GRAPHICS    2x HDMI™
        Support HDMI™ 2.1, maximum resolution of 4K 60Hz*
        2x DisplayPort
        Support DP 1.4, maximum resolution of 4K 60Hz*
        *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
    SLOT    2x PCI-E x16 slot
        1x PCI-E x1 slot
        PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
        PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
        PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
    STORAGE    2x M.2
        M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
        M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
        4x SATA 6G
        * SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
    RAID    Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
    USB    2x USB 2.0 (Rear)
        4x USB 2.0 (Front)
        2x USB 3.2 Gen1 Type A (Rear)
        4x USB 3.2 Gen1 Type A (Front)
        1x USB 3.2 Gen1 Type C (Front)
        2x USB 3.2 Gen2 Type A (Rear)
    LAN    Realtek® RTL8125BG 2.5G LAN
    WIRELESS LAN & BLUETOOTH    Intel® Wi-Fi 6E
        The Wireless module is pre-installed in the M.2 (Key-E) slot
        Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
        Supports 802.11 a/ b/ g/ n/ ac/ ax

        Supports Bluetooth® 5.3, FIPS, FISMA

        * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
        ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
    AUDIO    Realtek® ALC897 Codec
        7.1-Channel High Definition Audio
    INTERNAL IO    1x Power Connector(ATX_PWR)
        2x Power Connector(CPU_PWR)
        1x CPU Fan
        1x Pump Fan
        2x System Fan
        2x Front Panel (JFP)
        1x Chassis Intrusion (JCI)
        1x Front Audio (JAUD)
        1x Com Port (JCOM)
        2x Addressable V2 RGB LED connector (JARGB_V2)
        1x RGB LED connector(JRGB)
        1x TPM pin header(Support TPM 2.0)
        4x USB 2.0 ports
        4x USB 3.2 Gen1 Type A ports
        1x USB 3.2 Gen1 Type C ports
    LED FEATURE    4x EZ Debug LED

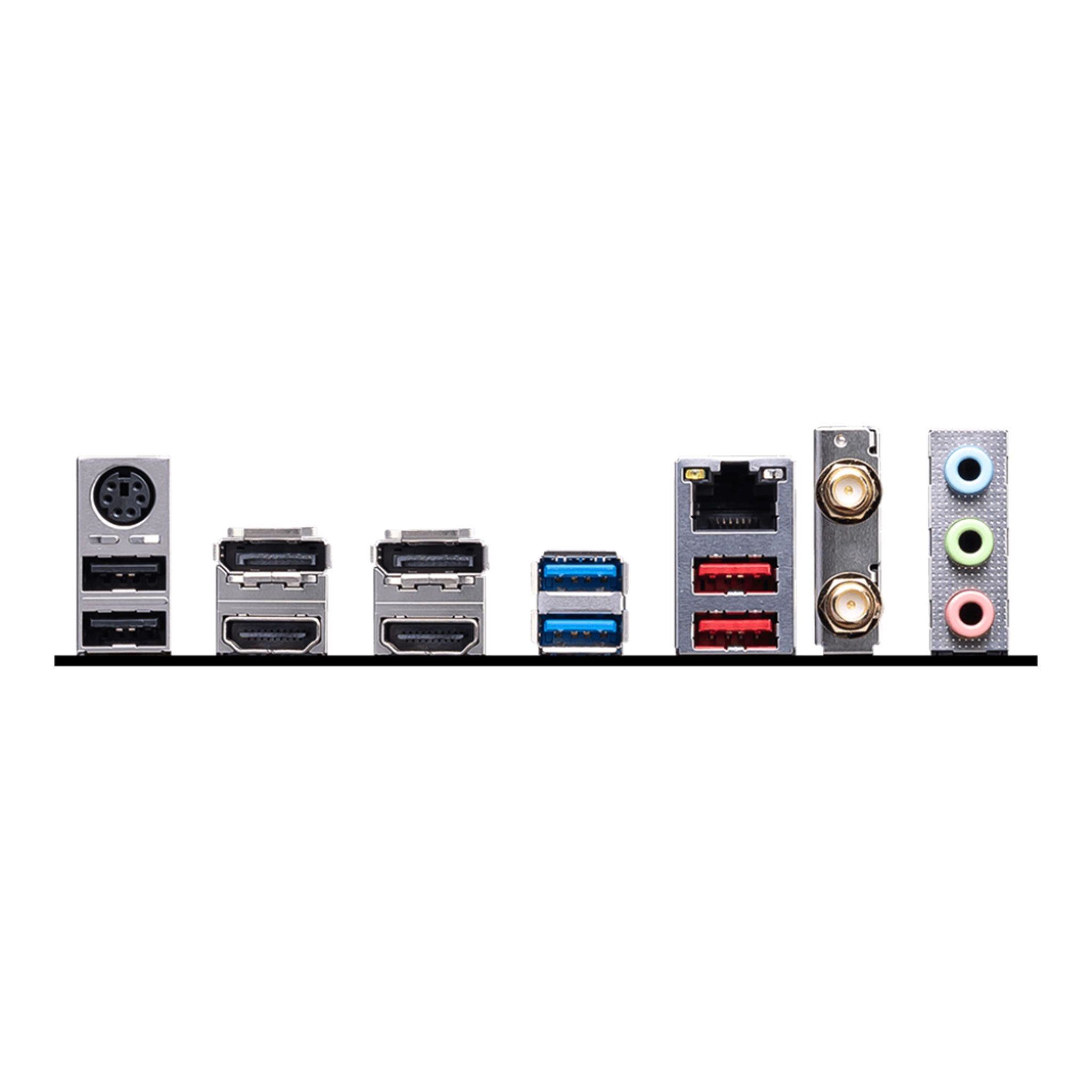

    BACK PANEL PORTS    Keyboard / Mouse
        DisplayPort
        USB 3.2 Gen 1 5Gbps (Type-A)
        2.5G LAN
        Wi-Fi / Bluetooth
        USB 2.0
        HDMI™
        USB 3.2 Gen 2 10Gbps (Type-A)
        Audio Connectors

    OPERATING SYSTEM    Support for Windows® 11 64-bit, Windows® 10 64-bit
    PCB INFO    mATX
        243.84mmx243.84mm

3,650,000₫

Mã sản phẩm: M.MSI.B760M.GM.PL.WF.D5

      💰 HỖ TRỢ TRẢ GÓP THẺ TÍN DỤNG mPOS & CÔNG TY TÀI CHÍNH (XEM TẠI ĐÂY)


      ⚙ THÔNG SỐ CƠ BẢN:

      • Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
      • Supports DDR5 Memory, Dual Channel DDR5 6800+MHz (OC)
      • Enhanced Power Design: 12+1 Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost
      • Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads are built for high performance system and non-stop gaming experience
      • Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, USB 3.2 Gen 2 10G
      • 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
      • High Quality PCB: 6-layer PCB made by 2oz thickened copper
      • Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
      Xem thêm cấu hình chi tiết

      Gọi đặt mua 1900 0243 (8:30 - 21:00)

      BẢNG THÔNG SỐ:

          CHIPSET    INTEL B760
          CPU    Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
              LGA 1700
          MEMORY    4x DDR5, Maximum Memory Capacity 192GB
              Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
              Max. overclocking frequency:
              • 1DPC 1R Max speed up to 6800+ MHz
              • 1DPC 2R Max speed up to 6400+ MHz
              • 2DPC 1R Max speed up to 6000+ MHz
              • 2DPC 2R Max speed up to 5600+ MHz

              Supports Intel® XMP 3.0 OC
              Supports Dual-Controller Dual-Channel mode
              Supports non-ECC, un-buffered memory
          ONBOARD GRAPHICS    2x HDMI™
              Support HDMI™ 2.1, maximum resolution of 4K 60Hz*
              2x DisplayPort
              Support DP 1.4, maximum resolution of 4K 60Hz*
              *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
          SLOT    2x PCI-E x16 slot
              1x PCI-E x1 slot
              PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
              PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
              PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
          STORAGE    2x M.2
              M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
              M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
              4x SATA 6G
              * SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
          RAID    Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
          USB    2x USB 2.0 (Rear)
              4x USB 2.0 (Front)
              2x USB 3.2 Gen1 Type A (Rear)
              4x USB 3.2 Gen1 Type A (Front)
              1x USB 3.2 Gen1 Type C (Front)
              2x USB 3.2 Gen2 Type A (Rear)
          LAN    Realtek® RTL8125BG 2.5G LAN
          WIRELESS LAN & BLUETOOTH    Intel® Wi-Fi 6E
              The Wireless module is pre-installed in the M.2 (Key-E) slot
              Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
              Supports 802.11 a/ b/ g/ n/ ac/ ax

              Supports Bluetooth® 5.3, FIPS, FISMA

              * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
              ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
          AUDIO    Realtek® ALC897 Codec
              7.1-Channel High Definition Audio
          INTERNAL IO    1x Power Connector(ATX_PWR)
              2x Power Connector(CPU_PWR)
              1x CPU Fan
              1x Pump Fan
              2x System Fan
              2x Front Panel (JFP)
              1x Chassis Intrusion (JCI)
              1x Front Audio (JAUD)
              1x Com Port (JCOM)
              2x Addressable V2 RGB LED connector (JARGB_V2)
              1x RGB LED connector(JRGB)
              1x TPM pin header(Support TPM 2.0)
              4x USB 2.0 ports
              4x USB 3.2 Gen1 Type A ports
              1x USB 3.2 Gen1 Type C ports
          LED FEATURE    4x EZ Debug LED
          BACK PANEL PORTS    Keyboard / Mouse
              DisplayPort
              USB 3.2 Gen 1 5Gbps (Type-A)
              2.5G LAN
              Wi-Fi / Bluetooth
              USB 2.0
              HDMI™
              USB 3.2 Gen 2 10Gbps (Type-A)
              Audio Connectors

          OPERATING SYSTEM    Support for Windows® 11 64-bit, Windows® 10 64-bit
          PCB INFO    mATX
              243.84mmx243.84mm
