Mainboard HUANANZHI B760M-D4 A – TINHOCNGOISAO.COM

Mainboard HUANANZHI B760M-D4 A

Đóng
  • Bài viết đánh giá

⚙ THÔNG SỐ CƠ BẢN:

  • Support Intel LGA1700
  • 2 x DDR4 memory slot,Max support 64GB
  • Support Dual channels DDR4 3200/2666/2400/2133MHz
  • 4xSATA3.0 6Gbps interfaces
  • 1xPCI Expressx164.0@5.0,1xPCI Expressx4 4.0
  • 2xM.2 22110 NVME PCIE X4 4.0
  • 10-phase power supply
  • 1 xCOMPIN,1x Debug pin

🛒 Xem thêm các sản phẩm Mainboard - Bo mạch chủ tại đây



BẢNG THÔNG SỐ CHI TIẾT:

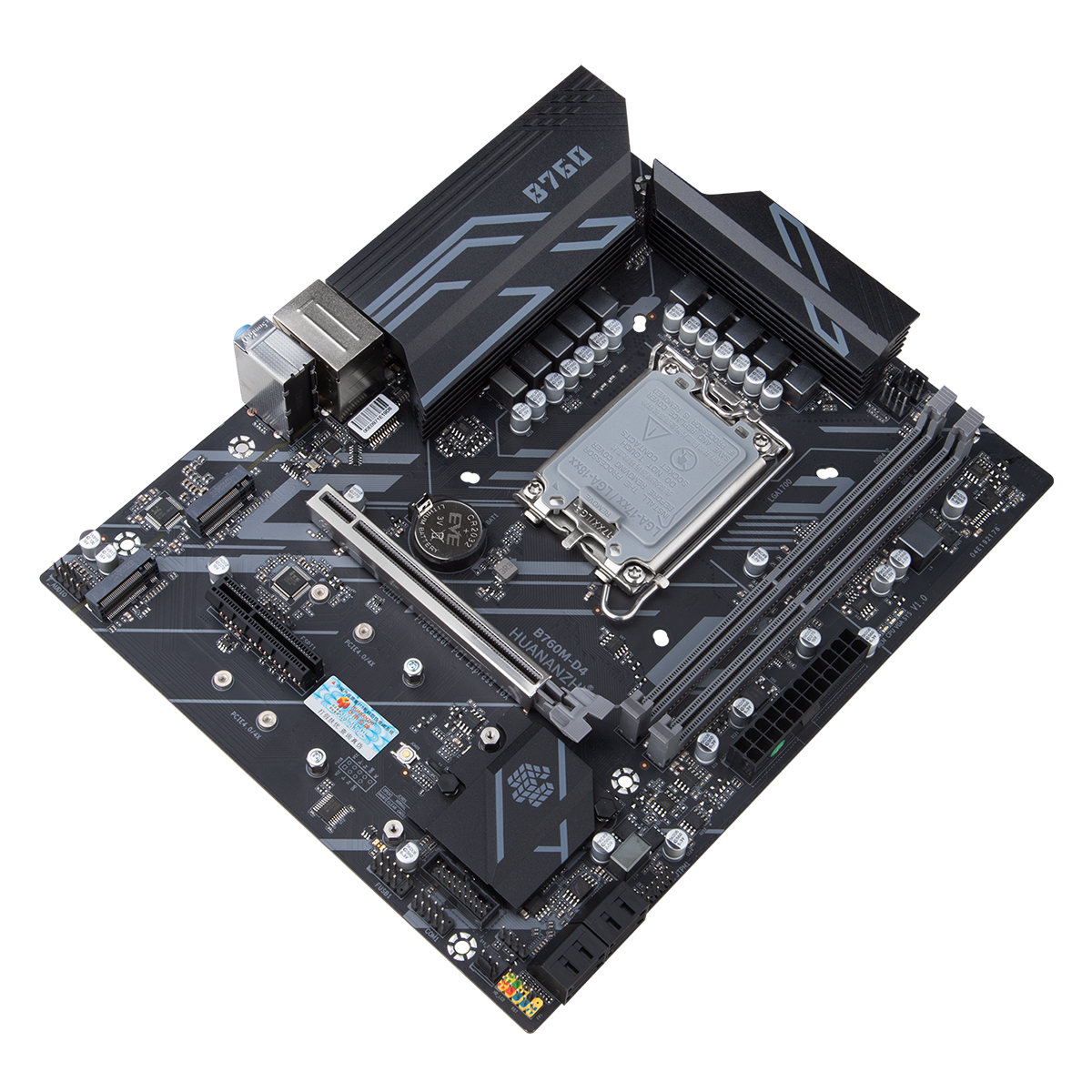

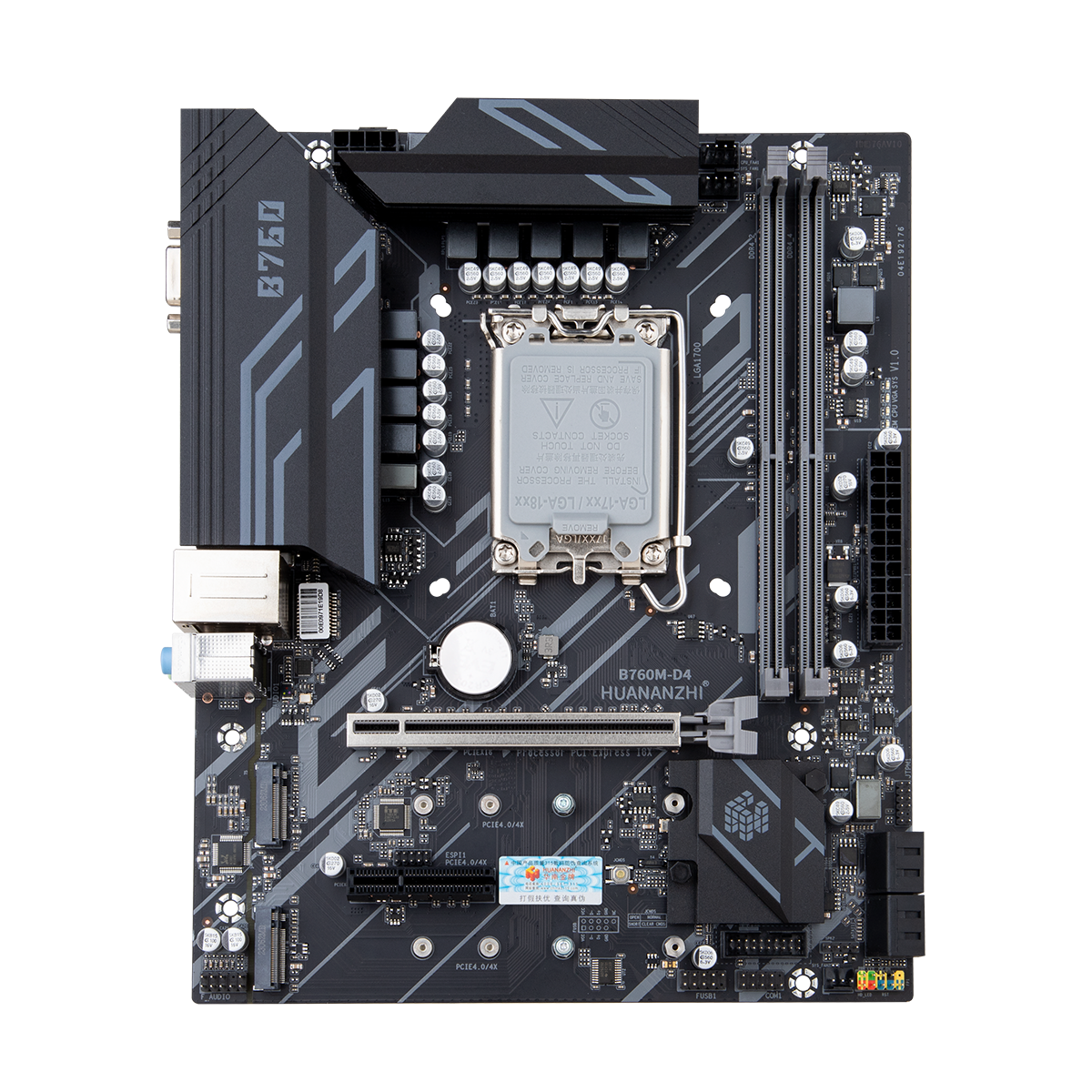

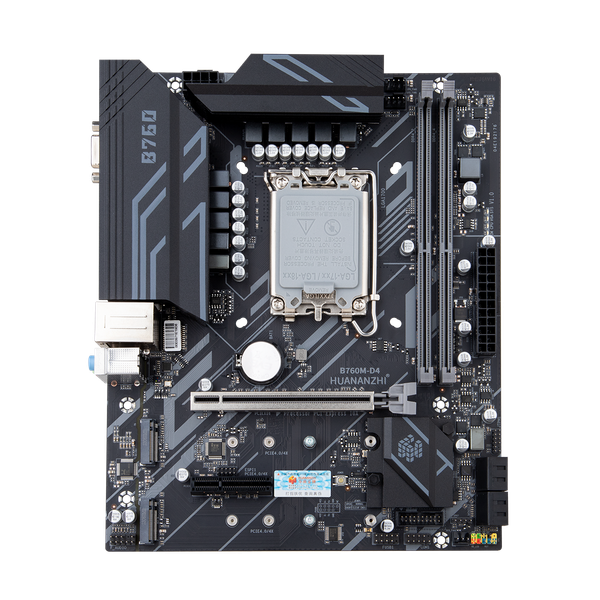

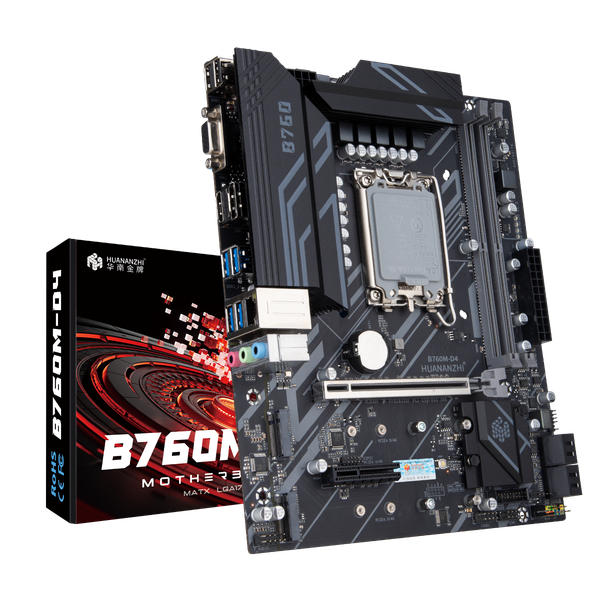

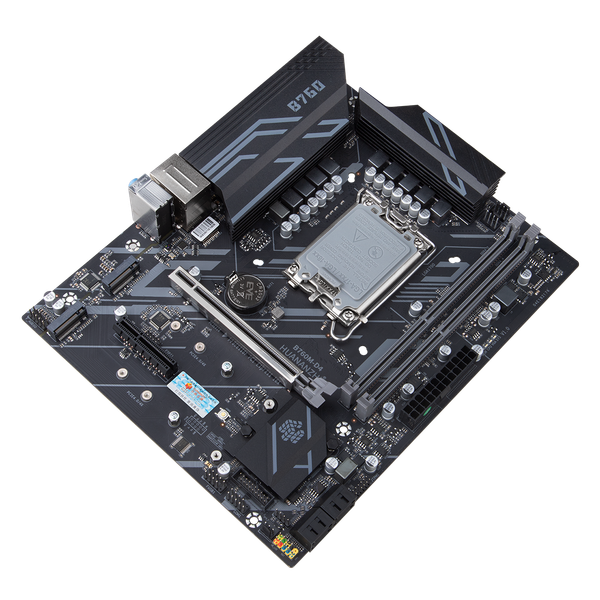

    Model    HUANANZHI B760M-D4 Motherboard
    Main chipset    Intel B760
    CPU Socket    Support Intel LGA1700
    Memory slot    2 x DDR4 memory slot
    Memory standard    Support Dual channels DDR4 3200/2666/2400/2133MHz (Supports XMP overclocking/CPU dependent),Max support 64GB
    Storage interface    4xSATA3.0 6Gbps interfaces
    Expansion Slots    1xPCI Expressx16 4.0,1xPCI Expressx4 4.0
    Expansion interface    2xM.2 22110 NVME PCIE X4 4.0
    Soud Track    Realtek High Fidelity Audio
    Network Card    Realtek Gigabit Network Card
    Power interface    24pin+8pin
    FAN PIN    1xCPU_FAN PIN,2xSYS_FAN PIN
    power supply    10-phase power supply
    PCB layers    6-layer PCB
    Dimension    235*195MM M-ATX

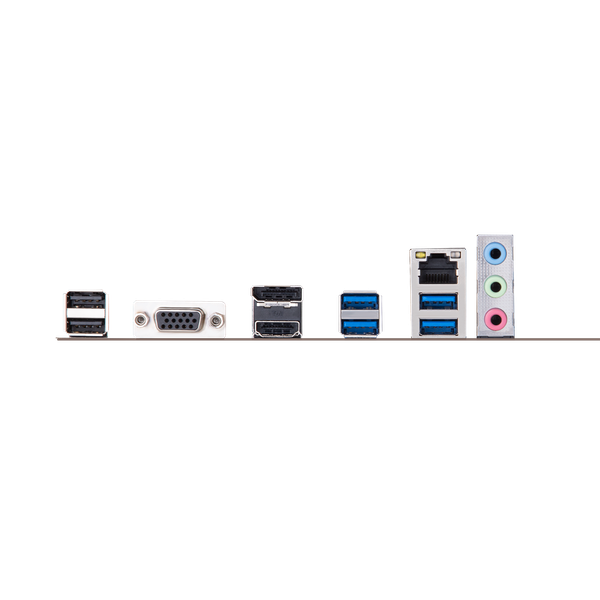

    Rear panel interface    2xUSB3.2 Gen2 10Gb/s,2xUSB2.0 480Mbps,1xVGA,1xHDMI2.1,1xDP1.4 ,1x Network card interface,1x3-hole audio interface
    Front panel interface    1 x USB2.0 PIN 480Mbps,1 x USB3.2 PIN Gen1x15Gb/s,1 x Front audio PIN,1 xCOMPIN,1x Debug pin
    Support system    Windows10 Windows11
    BIOS    AMI UEFI BIOS
    Packing list    1 x Motherboard,1x SATA data cable,1xWarranty card

1,790,000₫

Mã sản phẩm: M.HNZ.B760M-A.D4.CT

      ⚙ THÔNG SỐ CƠ BẢN:

      • Support Intel LGA1700
      • 2 x DDR4 memory slot,Max support 64GB
      • Support Dual channels DDR4 3200/2666/2400/2133MHz
      • 4xSATA3.0 6Gbps interfaces
      • 1xPCI Expressx164.0@5.0,1xPCI Expressx4 4.0
      • 2xM.2 22110 NVME PCIE X4 4.0
      • 10-phase power supply
      • 1 xCOMPIN,1x Debug pin

      🛒 Xem thêm các sản phẩm Mainboard - Bo mạch chủ tại đây



      Xem thêm cấu hình chi tiết

      Gọi đặt mua 1900 0243 (8:30 - 21:00)

      BẢNG THÔNG SỐ CHI TIẾT:

          Model    HUANANZHI B760M-D4 Motherboard
          Main chipset    Intel B760
          CPU Socket    Support Intel LGA1700
          Memory slot    2 x DDR4 memory slot
          Memory standard    Support Dual channels DDR4 3200/2666/2400/2133MHz (Supports XMP overclocking/CPU dependent),Max support 64GB
          Storage interface    4xSATA3.0 6Gbps interfaces
          Expansion Slots    1xPCI Expressx16 4.0,1xPCI Expressx4 4.0
          Expansion interface    2xM.2 22110 NVME PCIE X4 4.0
          Soud Track    Realtek High Fidelity Audio
          Network Card    Realtek Gigabit Network Card
          Power interface    24pin+8pin
          FAN PIN    1xCPU_FAN PIN,2xSYS_FAN PIN
          power supply    10-phase power supply
          PCB layers    6-layer PCB
          Dimension    235*195MM M-ATX
          Rear panel interface    2xUSB3.2 Gen2 10Gb/s,2xUSB2.0 480Mbps,1xVGA,1xHDMI2.1,1xDP1.4 ,1x Network card interface,1x3-hole audio interface
          Front panel interface    1 x USB2.0 PIN 480Mbps,1 x USB3.2 PIN Gen1x15Gb/s,1 x Front audio PIN,1 xCOMPIN,1x Debug pin
          Support system    Windows10 Windows11
          BIOS    AMI UEFI BIOS
          Packing list    1 x Motherboard,1x SATA data cable,1xWarranty card
