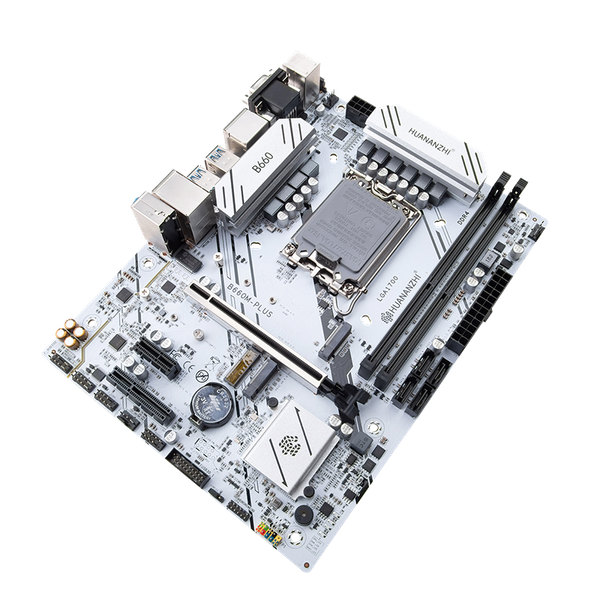

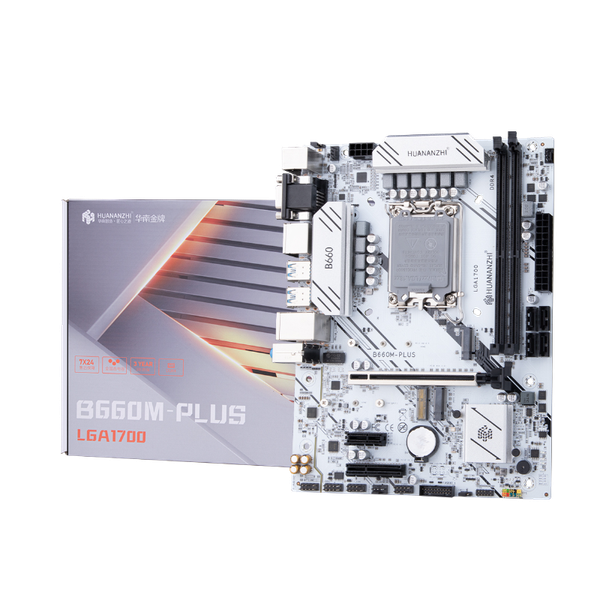

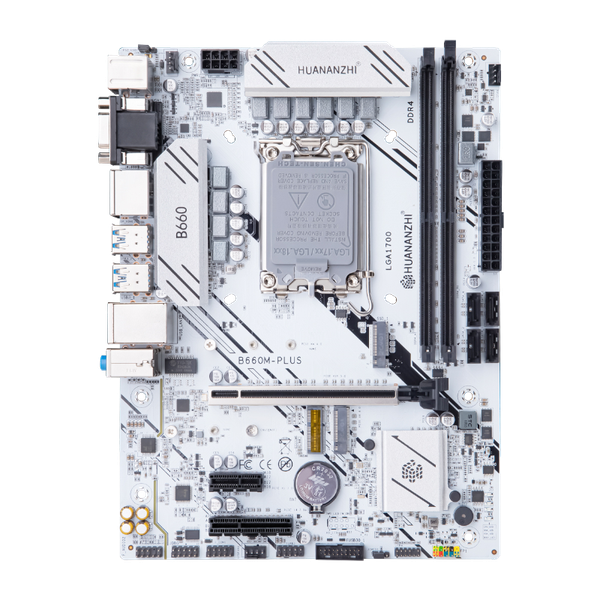

Mainboard HUANANZHI B660M-PLUS

Đóng
  • Bài viết đánh giá

⚙ THÔNG SỐ CƠ BẢN:

  • Support Intel LGA1700 platform processor
  • 2 x DDR4 memory slot,Max support 64 GB
  • 1 x PCI Expressx164.0@5.0,1 xPCI Expressx13.0,1 xPCI Expressx4 3.0
  • 2 x M.2 2280 NVME PCIE X44.0,1 x M.2 WIFI (Support NGFF/CNVI)
  • Realtek High Fidelity Audio,Realtek RTL8125BG 2.5Gbps LAN
  • 1x VGA,2x HDMI2.0,1xDP1.4
  • 4xUSB2.0,4xUSB3.2,1 x USB2.0 PIN,1 x USB3.2 PIN

🛒 Xem thêm các sản phẩm Mainboard - Bo mạch chủ tại đây



BẢNG THÔNG SỐ CHI TIẾT:

    Model    HUANANZHI B660M-PLUS Motherboard
    Main chipset    IntelB660
    CPU Socket    Support Intel LGA1700 platform processor
    Memory slot    2 x DDR4 memory slot
    Memory standard    Support dual channels DDR4 3600/3200/2933/2666/2400/2133MHz Memory(Depends on CPU/supports XMP),Max support 64 GB
    Storage interface    4 x SATA 3.0 6Gbps(Support RAID0/ 1/ 5/ 10)
    Expansion Slots    1 x PCI Expressx164.0@5.0,1 xPCI Expressx13.0,1 xPCI Expressx4 3.0
    Expansion interface    2 x M.2 2280 NVME PCIE X44.0,1 x M.2 WIFI (Support NGFF/CNVI)
    Soud Track    Realtek High Fidelity Audio
    Network Card    Realtek RTL8125BG 2.5Gbps LAN
    Power interface    24PIN+8PIN
    FAN PIN    1xCPU_FAN PIN,2xSYS_FAN PIN
    power supply    10-phase power supply
    PCB layers    6-layer PCB
    Dimension    240*180MM M-ATX

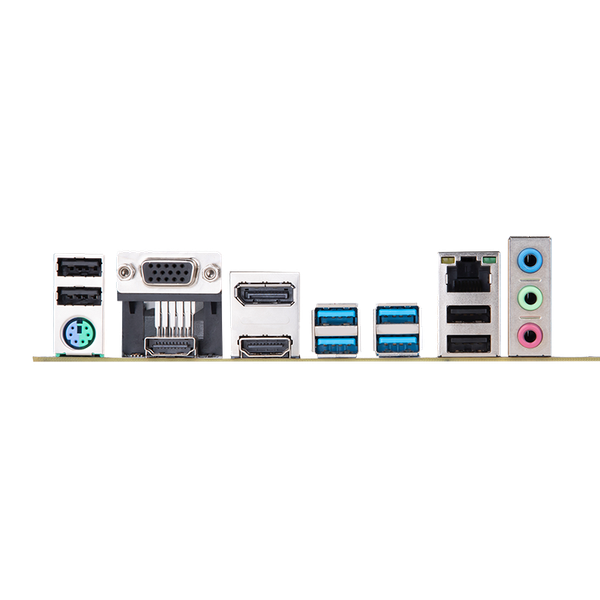

    Rear panel interface    1xPS/2 Mouse and Keyboard port,4xUSB2.0,4xUSB3.2,1xRJ45Network card interface,1x3-hole audio interface
        1x VGA,2x HDMI2.0,1xDP1.4(Support processor core display four-screen output)
    Front panel interface    1 x USB2.0 PIN,1 x USB3.2 PIN,1 xFront audioPIN,1xCOM PIN,1 x Debug indicator,1 xPower on/restart PIN,1xMotherboard buzzer,1 xTPM2.0
    Support system    Windows10 Windows11
    BIOS    AMI UEFI BIOS
    Packing list    1 x Motherboard,1 x SATA data cable,1xWarranty card,1xI/O shield back plat

1,850,000₫

Mã sản phẩm: M.HNZ.B660M.PL.CT

      ⚙ THÔNG SỐ CƠ BẢN:

      • Support Intel LGA1700 platform processor
      • 2 x DDR4 memory slot,Max support 64 GB
      • 1 x PCI Expressx164.0@5.0,1 xPCI Expressx13.0,1 xPCI Expressx4 3.0
      • 2 x M.2 2280 NVME PCIE X44.0,1 x M.2 WIFI (Support NGFF/CNVI)
      • Realtek High Fidelity Audio,Realtek RTL8125BG 2.5Gbps LAN
      • 1x VGA,2x HDMI2.0,1xDP1.4
      • 4xUSB2.0,4xUSB3.2,1 x USB2.0 PIN,1 x USB3.2 PIN

      🛒 Xem thêm các sản phẩm Mainboard - Bo mạch chủ tại đây



      Xem thêm cấu hình chi tiết

      Gọi đặt mua 1900 0243 (8:30 - 21:00)

      BẢNG THÔNG SỐ CHI TIẾT:

          Model    HUANANZHI B660M-PLUS Motherboard
          Main chipset    IntelB660
          CPU Socket    Support Intel LGA1700 platform processor
          Memory slot    2 x DDR4 memory slot
          Memory standard    Support dual channels DDR4 3600/3200/2933/2666/2400/2133MHz Memory(Depends on CPU/supports XMP),Max support 64 GB
          Storage interface    4 x SATA 3.0 6Gbps(Support RAID0/ 1/ 5/ 10)
          Expansion Slots    1 x PCI Expressx164.0@5.0,1 xPCI Expressx13.0,1 xPCI Expressx4 3.0
          Expansion interface    2 x M.2 2280 NVME PCIE X44.0,1 x M.2 WIFI (Support NGFF/CNVI)
          Soud Track    Realtek High Fidelity Audio
          Network Card    Realtek RTL8125BG 2.5Gbps LAN
          Power interface    24PIN+8PIN
          FAN PIN    1xCPU_FAN PIN,2xSYS_FAN PIN
          power supply    10-phase power supply
          PCB layers    6-layer PCB
          Dimension    240*180MM M-ATX
          Rear panel interface    1xPS/2 Mouse and Keyboard port,4xUSB2.0,4xUSB3.2,1xRJ45Network card interface,1x3-hole audio interface
              1x VGA,2x HDMI2.0,1xDP1.4(Support processor core display four-screen output)
          Front panel interface    1 x USB2.0 PIN,1 x USB3.2 PIN,1 xFront audioPIN,1xCOM PIN,1 x Debug indicator,1 xPower on/restart PIN,1xMotherboard buzzer,1 xTPM2.0
          Support system    Windows10 Windows11
          BIOS    AMI UEFI BIOS
          Packing list    1 x Motherboard,1 x SATA data cable,1xWarranty card,1xI/O shield back plat
