Mainboard Gigabyte Z790I AORUS ULTRA (rev. 1.0) | Intel Z790, Socket 1 – TINHOCNGOISAO.COM

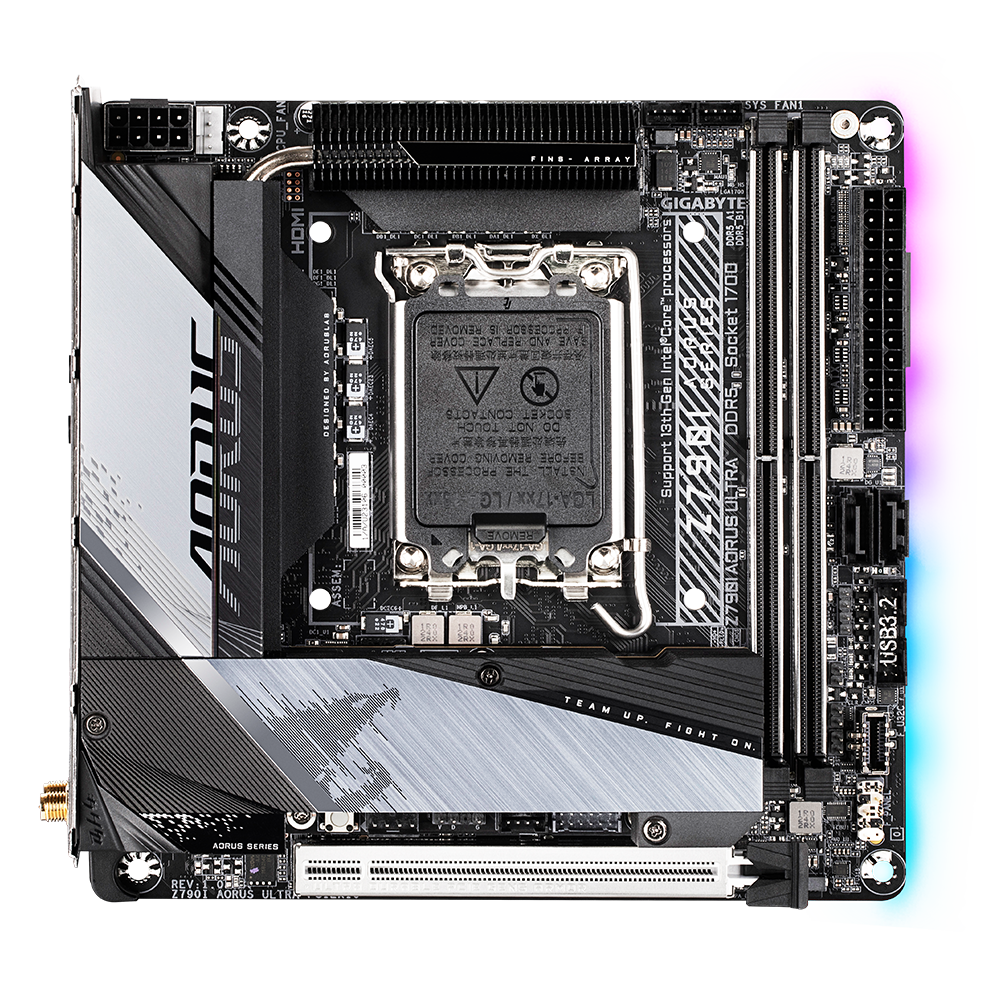

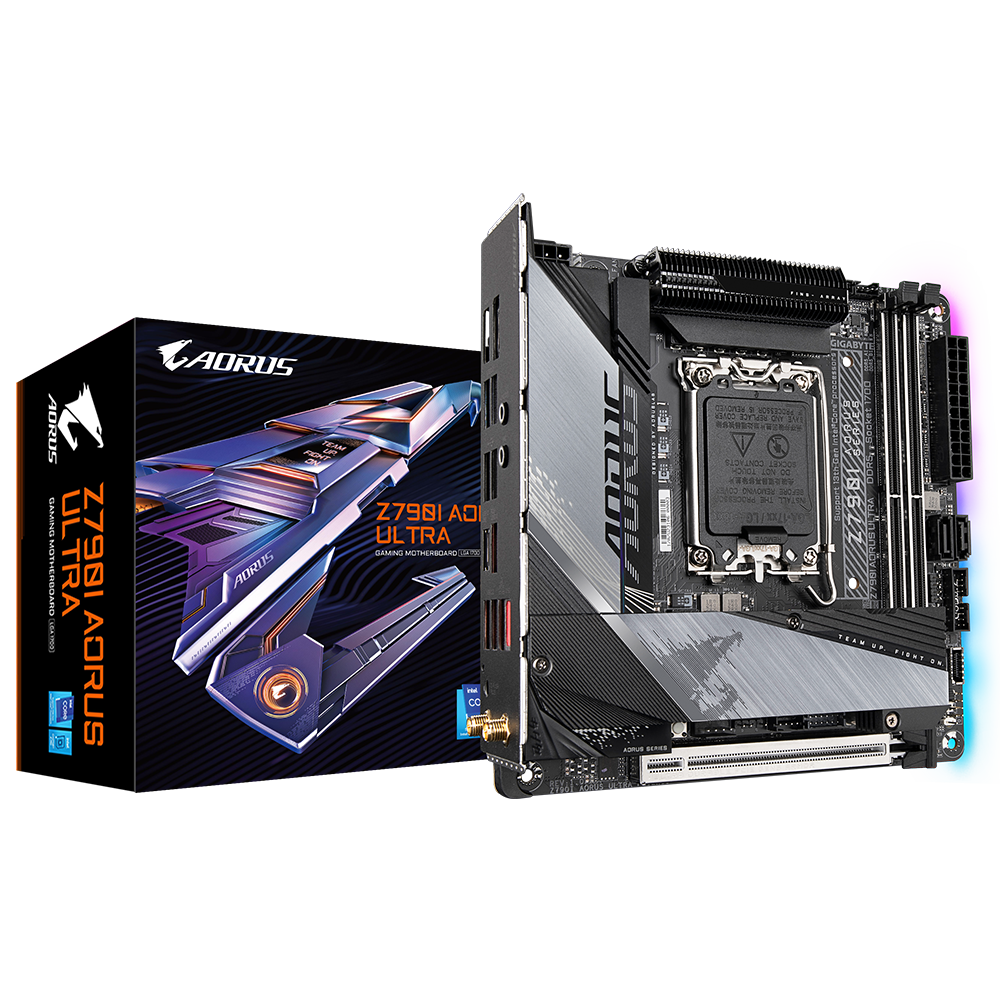

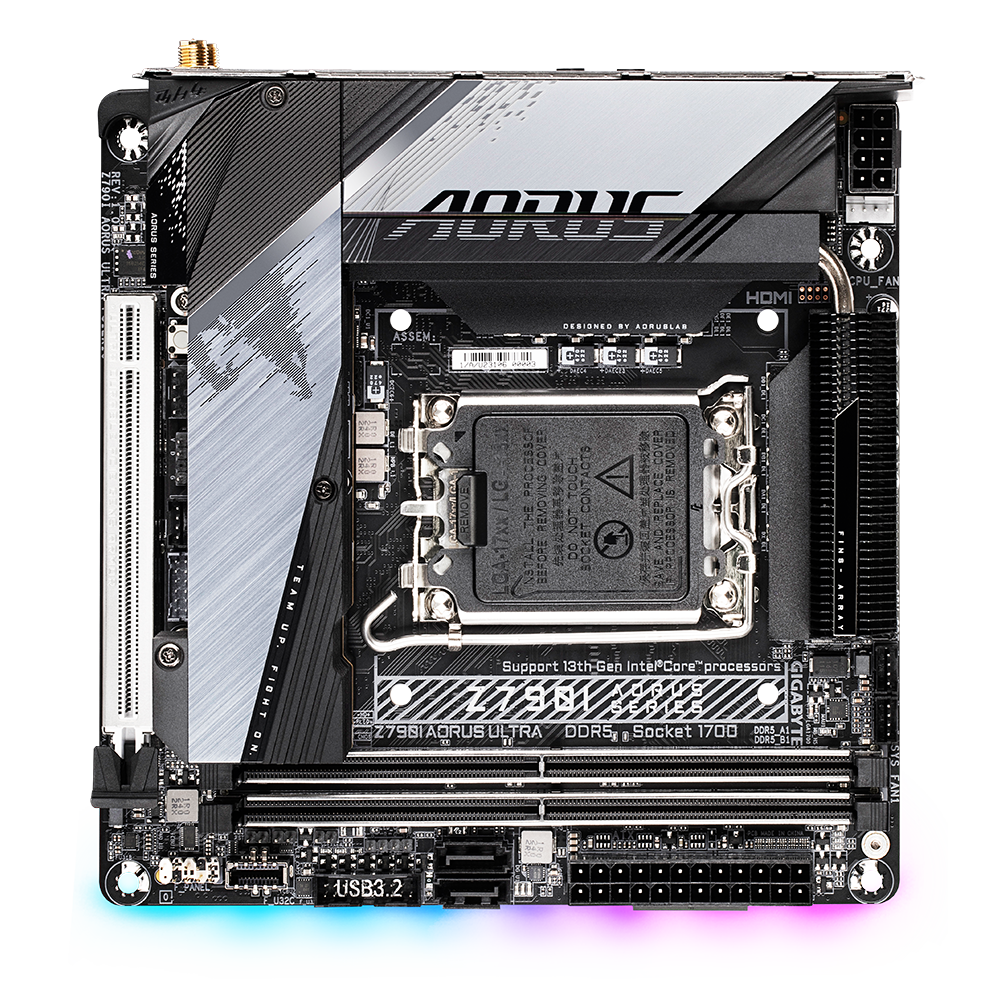

Mainboard Gigabyte Z790I Aorus Ultra (rev. 1.0) | Intel Z790, Socket 1700, Mini-ITX, 2 khe DDR5

Đóng
  • Bài viết đánh giá

💰 HỖ TRỢ TRẢ GÓP THẺ TÍN DỤNG mPOS & CÔNG TY TÀI CHÍNH (XEM TẠI ĐÂY)


⚙ THÔNG SỐ CƠ BẢN:

  • Intel® Socket LGA 1700:Support 13th and 12th Gen Series Processors​
  • Unparalleled Performance:Direct 10+1+2 Phases Digital VRM Solution​
  • Dual Channel DDR5:2*SMD DIMMs with XMP 3.0 Memory Module Support​
  • Next Generation Storage:2*PCIe 4.0 x4 M.2 Connectors​
  • Advanced Thermal Design & M.2 Thermal Guard III: To Ensure VRM Power Stability & M.2 SSD Performance​
  • EZ-Latch Plus:M.2 Connectors with Quick Release & Screwless Design​
  • Fast Networks:2.5GbE LAN & Wi-Fi 6E 802.11ax​
  • Extended Connectivity:DP, HDMI, Front USB-C® 10Gb/s, Rear USB-C® 20Gb/s​
  • Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP​
  • Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card​

CPU Support:

  • LGA1700 socket supporting 13th and 12th Generation Intel Core, Pentium Gold, and Celeron Processors.
  • L3 cache varies with the CPU.
  • Support for a wide range of Intel processors. Refer to the "CPU Support List" for compatibility details.

Memory:

  • Supports DDR5 memory modules with speeds ranging from 4400 MT/s to 8000 MT/s (overclockable).
  • 2 DDR5 DIMM sockets supporting up to 96 GB of system memory.
  • Dual-channel memory architecture.
  • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode).
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules.
  • Support for Extreme Memory Profile (XMP) memory modules.
  • Memory configuration may depend on CPU and affect supported types and speeds.

Integrated Graphics:

  • Integrated Graphics Processor-Intel HD Graphics support.
  • HDMI and DisplayPort output options.
  • Supports HDMI 2.0 version and HDCP 2.3.
  • Supports DisplayPort 1.4 version and HDCP 2.3.

Audio:

  • Realtek ALC4080 CODEC for high-quality audio.
  • Support for DTS:X Ultra.
  • 2-channel High Definition Audio.

LAN and Wireless:

  • Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps).
  • Intel Killer Wi-Fi 6E AX1690 for fast wireless connectivity.
  • Bluetooth 5.3 support.
  • Supports multiple Wi-Fi frequencies, including 2.4/5/6 GHz carrier frequency bands.

Expansion Slots:

  • CPU: 1 x PCI Express x16 slot supporting PCIe 5.0 at x16.

Storage Interface:

  • CPU: 1 x M.2 connector on the back and 1 x M.2 connector on the front for storage expansion.
  • Support for NVMe SSD storage devices.
  • Support for RAID 0 and RAID 1 for both NVMe SSD and SATA storage devices.
  • 2 x SATA 6Gb/s connectors.

USB:

  • Various USB ports, including USB Type-C, USB 3.2 Gen 2x2, USB 3.2 Gen 2, and USB 2.0.

Internal Connectors:

  • Multiple power connectors, fan headers, LED strip headers, and more.
  • Front panel audio header routed from the adapter card on the rear panel.

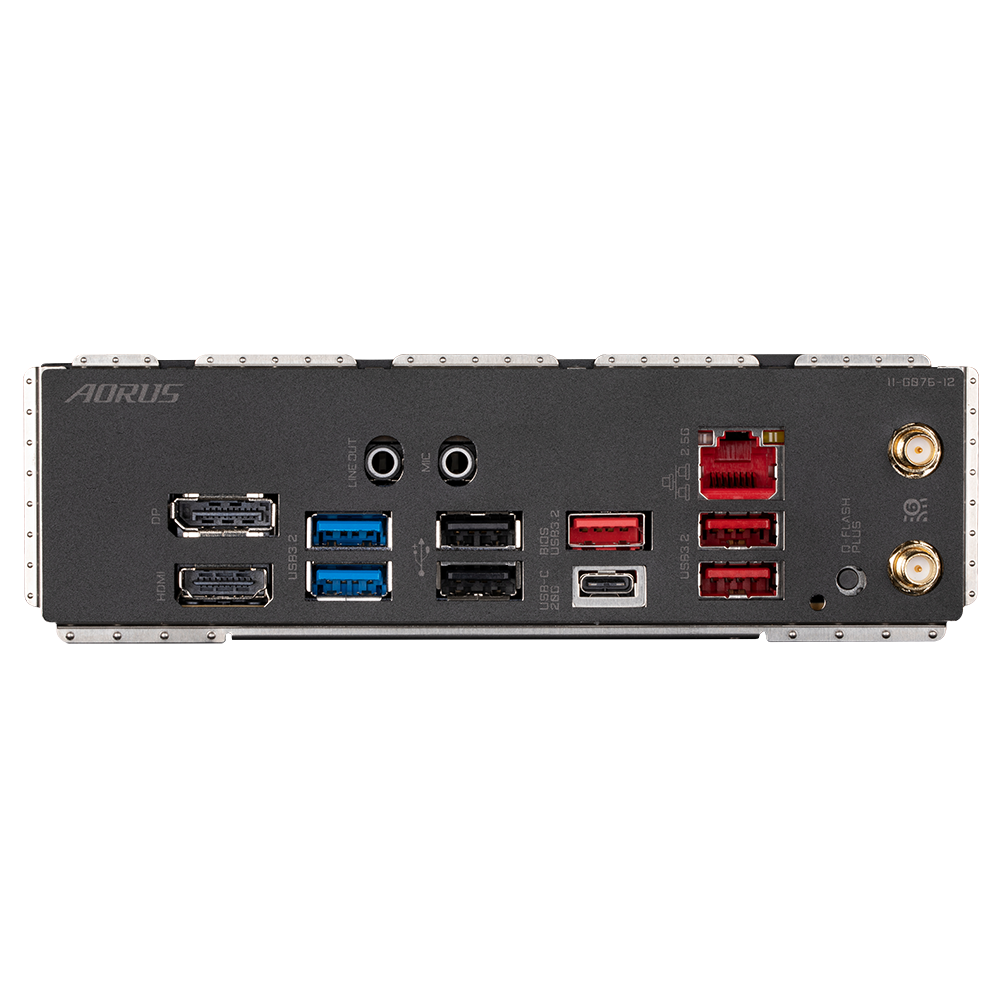

Rear I/O Ports:

  • Include HDMI, DisplayPort, USB ports, LAN ports, audio jacks, and more.

I/O Controller:

  • iTE I/O Controller Chip for hardware monitoring, including voltage, temperature, fan speed, and more.

BIOS:

  • 256 Mbit flash.
  • Use of licensed AMI UEFI BIOS.
  • Support for various standards and features.

Unique Features:

  • Support for GIGABYTE Control Center (GCC) with various applications.
  • Support for Q-Flash, Q-Flash Plus, and Smart Backup.

Bundled Software:

  • Norton Internet Security (OEM version).
  • LAN bandwidth management software.

Operating System Support:

  • Compatible with Windows 11 64-bit and Windows 10 64-bit.

Form Factor:

  • Mini-ITX Form Factor measuring 17.0cm x 17.0cm.

8,766,000₫

Mã sản phẩm: M.GG.Z790.I.Ultra.D5

      💰 HỖ TRỢ TRẢ GÓP THẺ TÍN DỤNG mPOS & CÔNG TY TÀI CHÍNH (XEM TẠI ĐÂY)


      ⚙ THÔNG SỐ CƠ BẢN:

      • Intel® Socket LGA 1700:Support 13th and 12th Gen Series Processors​
      • Unparalleled Performance:Direct 10+1+2 Phases Digital VRM Solution​
      • Dual Channel DDR5:2*SMD DIMMs with XMP 3.0 Memory Module Support​
      • Next Generation Storage:2*PCIe 4.0 x4 M.2 Connectors​
      • Advanced Thermal Design & M.2 Thermal Guard III: To Ensure VRM Power Stability & M.2 SSD Performance​
      • EZ-Latch Plus:M.2 Connectors with Quick Release & Screwless Design​
      • Fast Networks:2.5GbE LAN & Wi-Fi 6E 802.11ax​
      • Extended Connectivity:DP, HDMI, Front USB-C® 10Gb/s, Rear USB-C® 20Gb/s​
      • Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP​
      • Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card​
      Xem thêm cấu hình chi tiết
      SẮP VỀ HÀNG (Vui lòng liên hệ trực tiếp)

      Gọi đặt mua 1900 0243 (8:30 - 21:00)
