⚙ THÔNG SỐ CƠ BẢN

  • Socket: LGA1700 hỗ trợ CPU Intel thế hệ 13, Intel thế hệ thứ 12, Pentium® Gold and Celeron® Processors
  • Kích thước: ATX
  • Khe cắm RAM: 4 khe (Tối đa 128GB)
  • Khe cắm mở rộng: 1 x PCI Express 5.0 x16 slot, 2 x PCI Express 4.0 x16 slots
  • Khe cắm ổ cứng: 4 x M.2 slots, 6 x SATA 6Gb/s ports
    Sản phẩm    Bo mạch chủ
    Tên Hãng    Gigabyte
    Model    Z790 AORUS ELITE AX DDR5
    CPU hỗ trợ    Intel
    Chipset    Z790
    RAM hỗ trợ    Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules
        4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity)
    Khe cắm mở rộng    CPU:
        1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)

        2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2)
    Ổ cứng hỗ trợ    CPU:
        1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
        Chipset:
        2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB)
        1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB)
        4 x SATA 6Gb/s connectors
    Cổng kết nối (Internal)    1 x 24-pin ATX main power connector
        2 x 8-pin ATX 12V power connectors
        1 x CPU fan header
        1 x water cooling CPU fan header
        3 x system fan headers
        1 x system fan/water cooling pump header
        2 x addressable LED strip headers
        2 x RGB LED strip headers
        4 x M.2 Socket 3 connectors
        4 x SATA 6Gb/s connectors
        1 x front panel header
        1 x front panel audio header

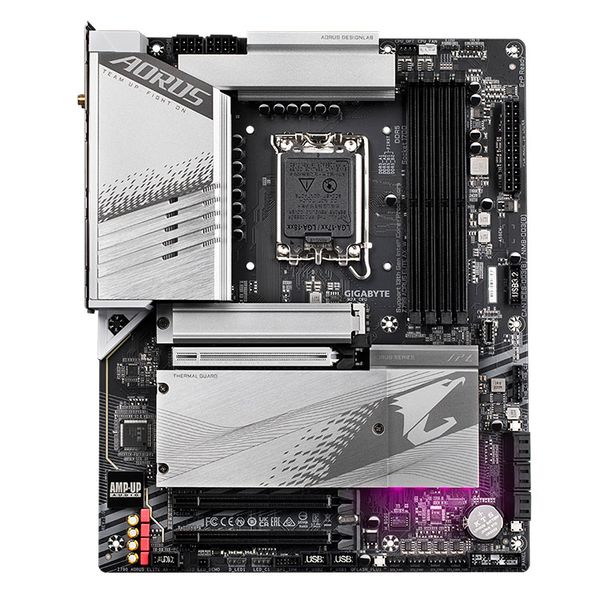

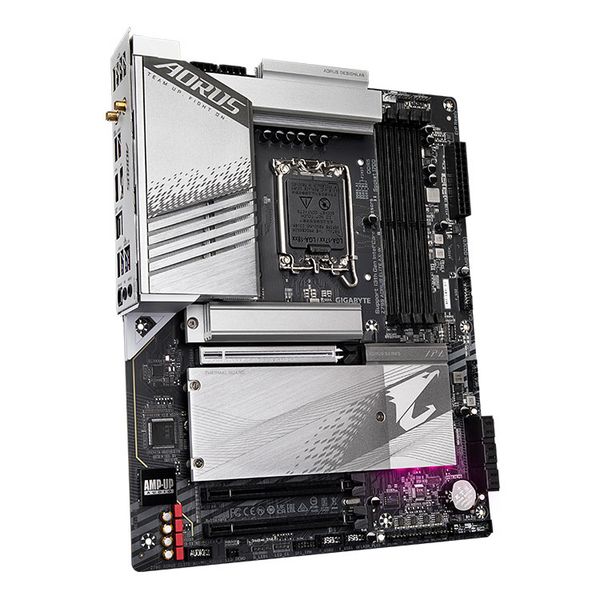

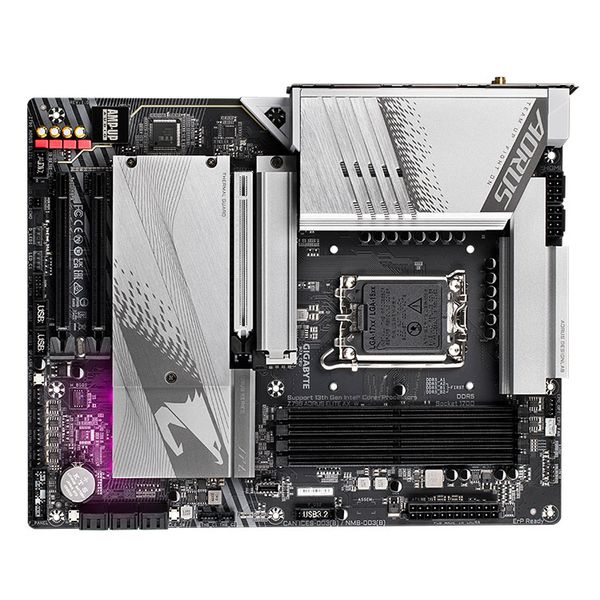

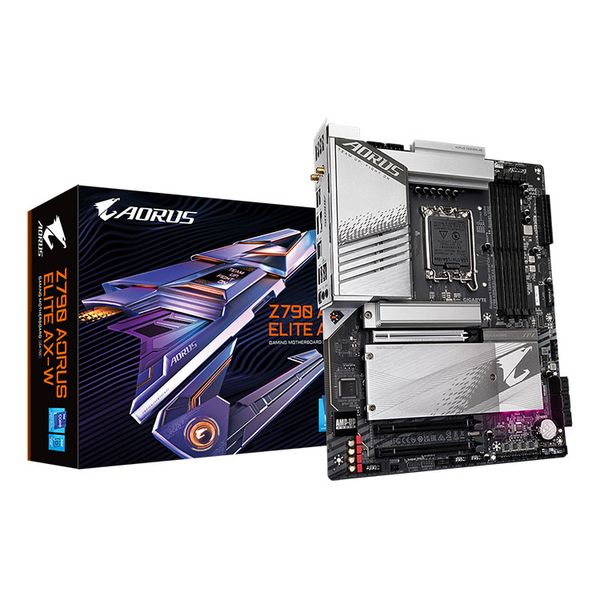

Mainboard Gigabyte Z790 Aorus Elite AX DDR5 - White

Mã sản phẩm: M.GG.Z790.AR.EL.AX.D5.WHITE
Giá:
Liên hệ

Đăng ký nhận thông tin khi có hàng

Khuyến mãi - ưu đãi Khuyến mãi - ưu đãi
    Gọi đặt mua: 1900 0243 (8:30 - 21:00)
    SẮP VỀ HÀNG (Vui lòng liên hệ trực tiếp)

    Thông số kỹ thuật




    ⚙ THÔNG SỐ CƠ BẢN

    • Socket: LGA1700 hỗ trợ CPU Intel thế hệ 13, Intel thế hệ thứ 12, Pentium® Gold and Celeron® Processors
    • Kích thước: ATX
    • Khe cắm RAM: 4 khe (Tối đa 128GB)
    • Khe cắm mở rộng: 1 x PCI Express 5.0 x16 slot, 2 x PCI Express 4.0 x16 slots
    • Khe cắm ổ cứng: 4 x M.2 slots, 6 x SATA 6Gb/s ports
    Xem thêm cấu hình chi tiết
    MÔ TẢ SẢN PHẨM
        Sản phẩm    Bo mạch chủ
        Tên Hãng    Gigabyte
        Model    Z790 AORUS ELITE AX DDR5
        CPU hỗ trợ    Intel
        Chipset    Z790
        RAM hỗ trợ    Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules
            4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity)
        Khe cắm mở rộng    CPU:
            1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)

            2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2)
        Ổ cứng hỗ trợ    CPU:
            1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
            Chipset:
            2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB)
            1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB)
            4 x SATA 6Gb/s connectors
        Cổng kết nối (Internal)    1 x 24-pin ATX main power connector
            2 x 8-pin ATX 12V power connectors
            1 x CPU fan header
            1 x water cooling CPU fan header
            3 x system fan headers
            1 x system fan/water cooling pump header
            2 x addressable LED strip headers
            2 x RGB LED strip headers
            4 x M.2 Socket 3 connectors
            4 x SATA 6Gb/s connectors
            1 x front panel header
            1 x front panel audio header
