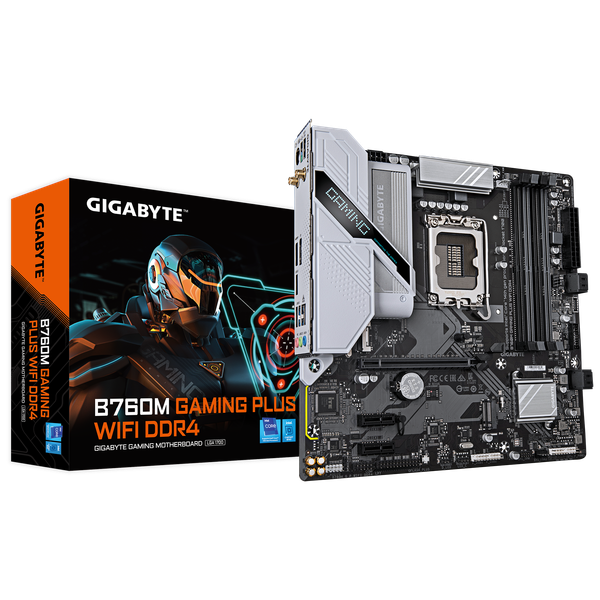

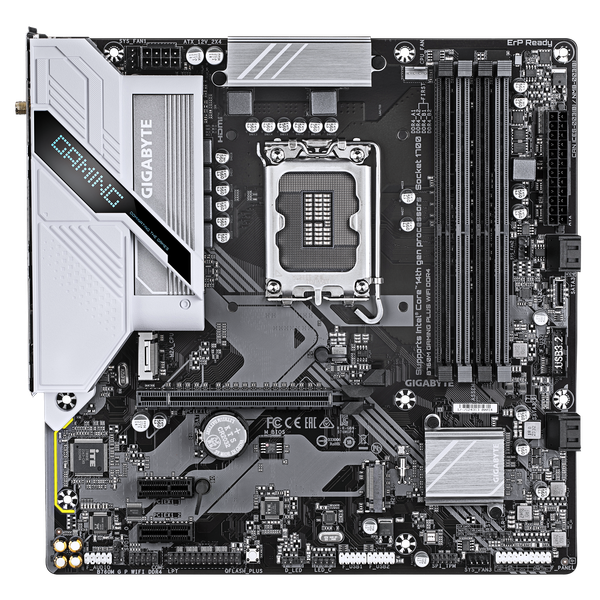

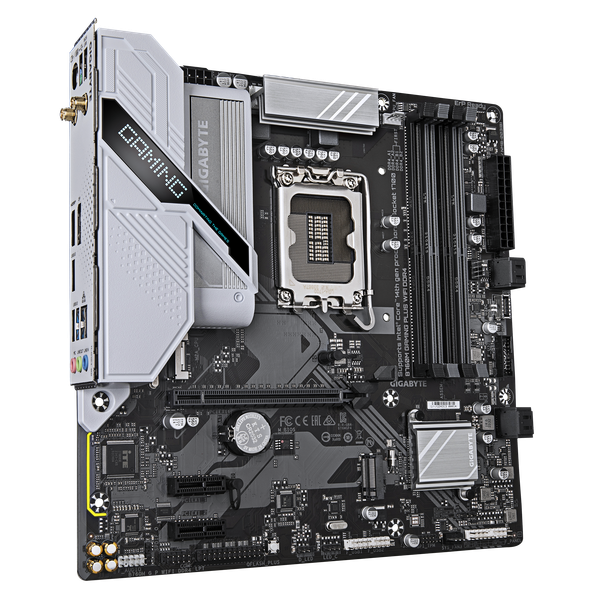

Mainboard Gigabyte B760M Gaming Plus Wifi DDR4

Đóng
  • Bài viết đánh giá

⚙ THÔNG SỐ CƠ BẢN:

  • Supports Intel® Core™ 14th/ 13th /12th processors
  • Unparalleled Performance:Hybrid 4+1+1 Phases Digital VRM Solution
  • Dual Channel DDR4:4*DIMMs XMP Memory Module Support
  • Next Generation Storage:2*PCIe 4.0 x4 M.2 Connectors
  • Fast Networks:Wi-Fi 6 802.11ax, GbE LAN
  • Extended Connectivity:Front USB-C® 5Gb/s, DP, HDMI
  • Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card

🛒 Xem thêm các sản phẩm Mainboard - Bo mạch chủ tại đây

CPU

  • Socket: LGA1700
  • Compatible CPUs: 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
  • L3 cache varies depending on CPU (check "CPU Support List" for details)

Chipset

  • Intel® B760 Express Chipset

Memory

  • Supports DDR4 memory at speeds up to 5333MHz (overclocked)
  • 4 DDR4 DIMM slots, supporting up to 128GB (32GB per DIMM)
  • Dual channel memory architecture
  • Supports ECC and non-ECC memory
  • XMP memory profile support
  • Refer to "Memory Support List" for detailed compatibility information

Integrated Graphics

  • Intel® HD Graphics support
  • 1 x HDMI port (max resolution 4096x2160@60Hz) with HDMI 2.1 and HDCP 2.3 support
  • 1 x DisplayPort (max resolution 4096x2304@60Hz) with DisplayPort 1.2 and HDCP 2.3 support
  • Supports up to 3 simultaneous displays

Audio

  • Realtek® ALC audio codec
  • High Definition Audio
  • Supports 2/4/5.1/7.1 channel audio
  • S/PDIF Out support

LAN

  • Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)

Wireless

  • Realtek® Wi-Fi 6 RTL8851BE module
  • Wi-Fi a/b/g/n/ac/ax (2.4/5 GHz)
  • Bluetooth 5.3
  • Supports 11ax 160MHz wireless standard (actual speeds may vary)

Expansion Slots

  • 1 x PCI Express x16 slot (PCIe 4.0 x16) for graphics card or NVMe SSD
  • 2 x PCI Express x1 slots (PCIe 3.0 x1)

Storage

  • 2 x M.2 connectors (M key, type 2280) supporting PCIe 4.0 x4/x2 SSDs
  • 4 x SATA 6Gb/s connectors
  • Supports RAID 0, 1, 5, and 10 for SATA storage

USB

  • 1 x USB Type-C® port (internal header) with USB 3.2 Gen 1 support
  • 5 x USB 3.2 Gen 1 ports (3 rear panel, 2 internal headers)
  • 2 x USB 2.0/1.1 ports (rear panel)
  • 4 x USB 2.0/1.1 ports (internal headers)

Internal Connectors

  • Standard ATX power connectors (24-pin and 8-pin)
  • Fan headers (CPU, system x3)
  • Addressable and RGB LED strip headers
  • M.2 connectors (2x)
  • SATA connectors (4x)
  • Various other headers for front panel connections, audio, USB, TPM, serial, parallel port, S/PDIF Out, Q-Flash Plus, reset and clear CMOS jumpers

Rear Panel Connectors

  • 2 x USB 2.0/1.1 ports
  • 1 x PS/2 keyboard/mouse port
  • 2 x SMA antenna connectors (Wi-Fi)
  • 1 x DisplayPort
  • 1 x HDMI port
  • 3 x USB 3.2 Gen 1 ports
  • 1 x RJ-45 LAN port
  • 3 x audio jacks

I/O Controller

  • iTE® I/O Controller Chip

Hardware Monitoring

  • Voltage, temperature, fan speed, water cooling flow (if applicable)
  • Fan speed control (dependent on fan model)

BIOS

  • 128 Mbit flash memory
  • Licensed AMI UEFI BIOS

Unique Features

  • Support for GIGABYTE Control Center (GCC) - features may vary by model
  • Q-Flash and Q-Flash Plus support

Software

  • Norton® Internet Security (OEM version)
  • LAN bandwidth management software

Operating System

  • Windows 11 64-bit
  • Windows 10 64-bit

Form Factor

  • Micro ATX (24.4cm x 24.4cm)

2,990,000₫

3,190,000₫

-6%

Mã sản phẩm: M.GG.B760M.GM.PL.WF.D4

      ⚙ THÔNG SỐ CƠ BẢN:

      • Supports Intel® Core™ 14th/ 13th /12th processors
      • Unparalleled Performance:Hybrid 4+1+1 Phases Digital VRM Solution
      • Dual Channel DDR4:4*DIMMs XMP Memory Module Support
      • Next Generation Storage:2*PCIe 4.0 x4 M.2 Connectors
      • Fast Networks:Wi-Fi 6 802.11ax, GbE LAN
      • Extended Connectivity:Front USB-C® 5Gb/s, DP, HDMI
      • Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
      • Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card

      🛒 Xem thêm các sản phẩm Mainboard - Bo mạch chủ tại đây

      Xem thêm cấu hình chi tiết

      Gọi đặt mua 1900 0243 (8:30 - 21:00)

      MÔ TẢ SẢN PHẨM

      CPU

      • Socket: LGA1700
      • Compatible CPUs: 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
      • L3 cache varies depending on CPU (check "CPU Support List" for details)

      Chipset

      • Intel® B760 Express Chipset

      Memory

      • Supports DDR4 memory at speeds up to 5333MHz (overclocked)
      • 4 DDR4 DIMM slots, supporting up to 128GB (32GB per DIMM)
      • Dual channel memory architecture
      • Supports ECC and non-ECC memory
      • XMP memory profile support
      • Refer to "Memory Support List" for detailed compatibility information

      Integrated Graphics

      • Intel® HD Graphics support
      • 1 x HDMI port (max resolution 4096x2160@60Hz) with HDMI 2.1 and HDCP 2.3 support
      • 1 x DisplayPort (max resolution 4096x2304@60Hz) with DisplayPort 1.2 and HDCP 2.3 support
      • Supports up to 3 simultaneous displays

      Audio

      • Realtek® ALC audio codec
      • High Definition Audio
      • Supports 2/4/5.1/7.1 channel audio
      • S/PDIF Out support

      LAN

      • Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)

      Wireless

      • Realtek® Wi-Fi 6 RTL8851BE module
      • Wi-Fi a/b/g/n/ac/ax (2.4/5 GHz)
      • Bluetooth 5.3
      • Supports 11ax 160MHz wireless standard (actual speeds may vary)

      Expansion Slots

      • 1 x PCI Express x16 slot (PCIe 4.0 x16) for graphics card or NVMe SSD
      • 2 x PCI Express x1 slots (PCIe 3.0 x1)

      Storage

      • 2 x M.2 connectors (M key, type 2280) supporting PCIe 4.0 x4/x2 SSDs
      • 4 x SATA 6Gb/s connectors
      • Supports RAID 0, 1, 5, and 10 for SATA storage

      USB

      • 1 x USB Type-C® port (internal header) with USB 3.2 Gen 1 support
      • 5 x USB 3.2 Gen 1 ports (3 rear panel, 2 internal headers)
      • 2 x USB 2.0/1.1 ports (rear panel)
      • 4 x USB 2.0/1.1 ports (internal headers)

      Internal Connectors

      • Standard ATX power connectors (24-pin and 8-pin)
      • Fan headers (CPU, system x3)
      • Addressable and RGB LED strip headers
      • M.2 connectors (2x)
      • SATA connectors (4x)
      • Various other headers for front panel connections, audio, USB, TPM, serial, parallel port, S/PDIF Out, Q-Flash Plus, reset and clear CMOS jumpers

      Rear Panel Connectors

      • 2 x USB 2.0/1.1 ports
      • 1 x PS/2 keyboard/mouse port
      • 2 x SMA antenna connectors (Wi-Fi)
      • 1 x DisplayPort
      • 1 x HDMI port
      • 3 x USB 3.2 Gen 1 ports
      • 1 x RJ-45 LAN port
      • 3 x audio jacks

      I/O Controller

      • iTE® I/O Controller Chip

      Hardware Monitoring

      • Voltage, temperature, fan speed, water cooling flow (if applicable)
      • Fan speed control (dependent on fan model)

      BIOS

      • 128 Mbit flash memory
      • Licensed AMI UEFI BIOS

      Unique Features

      • Support for GIGABYTE Control Center (GCC) - features may vary by model
      • Q-Flash and Q-Flash Plus support

      Software

      • Norton® Internet Security (OEM version)
      • LAN bandwidth management software

      Operating System

      • Windows 11 64-bit
      • Windows 10 64-bit

      Form Factor

      • Micro ATX (24.4cm x 24.4cm)
