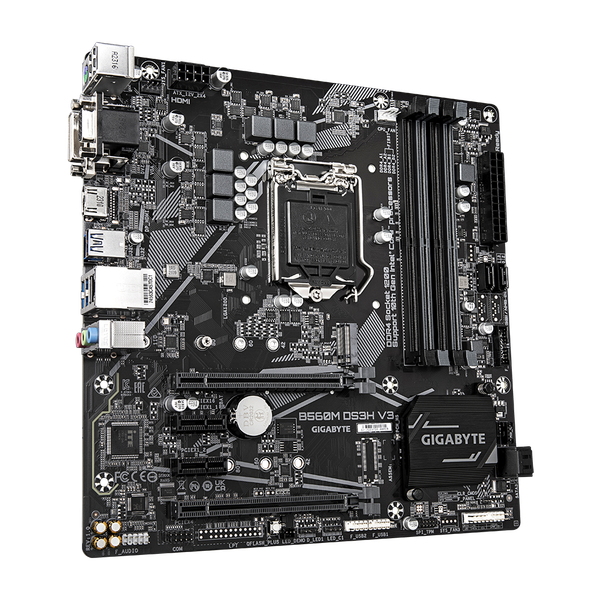

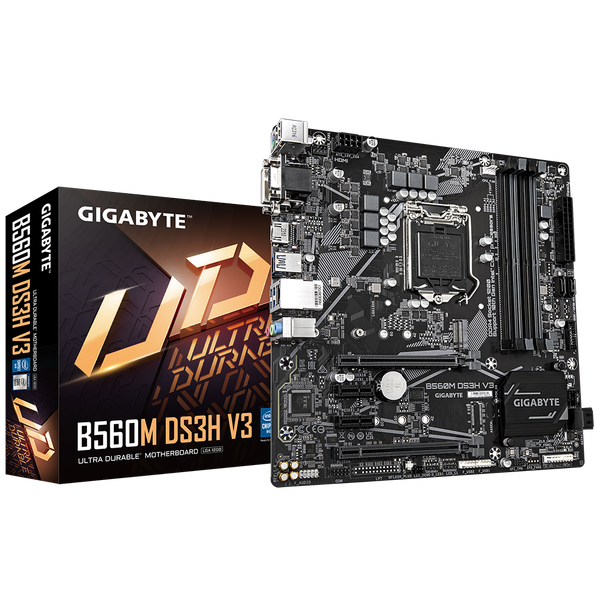

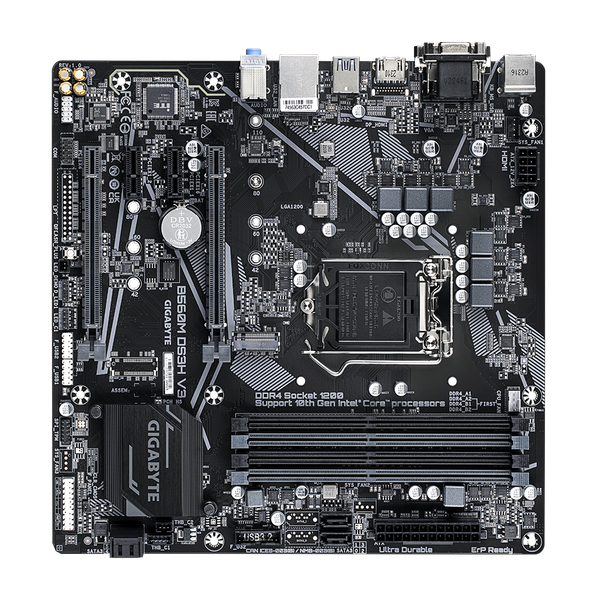

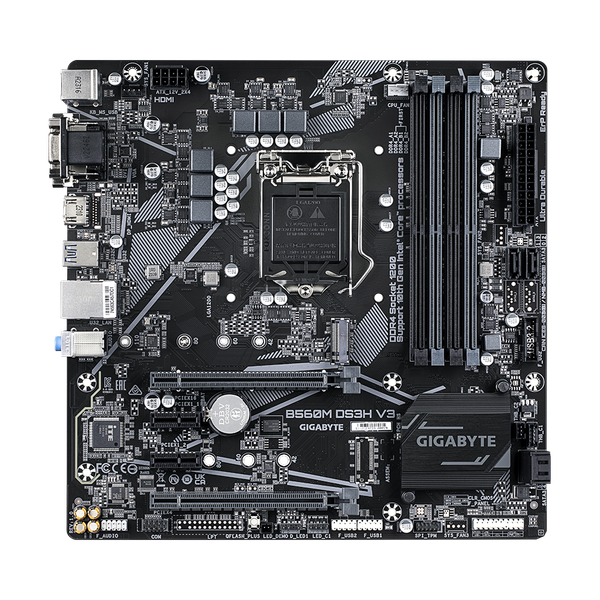

Mainboard Gigabyte B560M DS3H V3 (rev. 1.0)

Đóng
  • Bài viết đánh giá

⚙ THÔNG SỐ CƠ BẢN:

  • Supports 10th Gen Intel® Core™ Processors and 11th Gen Intel® Core™ Processors*
  • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
  • NVMe PCIe Gen3 X4 M.2 Connectors
  • Smart Fan 5 Features Multiple Temperature Sensors,Hybrid Fan Headers with FAN STOP
  • Intel® Optane™ Memory Ready
  • Intel® GbE LAN with cFosSpeed Internet Accelerator Software
  • 3 Display Interfaces Support
  • RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
  • Anti-Sulfur Resistors Design
  • Q-Flash Plus Update BIOS without Installing the CPU、Memory and Graphics Card
    Component    Specification
    CPU Support    - 11th and 10th Generation Intel Core i9, i7, i5, i3, Pentium, and Celeron processors. - L3 cache varies with the CPU.
    Memory Support    - Supports DDR4 memory modules with varying speeds depending on the processor generation. - 4 DDR4 DIMM sockets supporting up to 128 GB of system memory. - Dual channel memory architecture. - Support for ECC Un-buffered DIMM and Extreme Memory Profile (XMP) memory modules.
    Integrated Graphics    - Intel HD Graphics support with multiple display outputs, including D-Sub, DVI-D, and HDMI ports. - Support for up to 3 displays at the same time. - Maximum shared memory of 512 MB.
    Audio    - Realtek Audio CODEC. - High Definition Audio with support for 2/4/5.1/7.1-channel audio. - Configurable audio jack functionality.
    LAN    - Intel GbE LAN chip with support for 1 Gbps/10 Mbps/100 Mbps.
    Expansion Slots    - 1 x PCI Express x16 slot running at x16 (PCIEX16). - 1 x PCI Express x16 slot running at x4 (PCIEX4). - 2 x PCI Express x1 slots (all conform to PCI Express 3.0 standard).
    Storage    - 1 x M.2 connector for PCIe x4/x2 SSD support. - 4 x SATA 6Gb/s connectors with support for RAID 0, 1, 5, and 10.
    USB Ports    - 5 x USB 3.2 Gen 1 ports (3 on the back panel, 2 through internal headers). - 6 x USB 2.0/1.1 ports (2 on the back panel, 4 through internal headers).

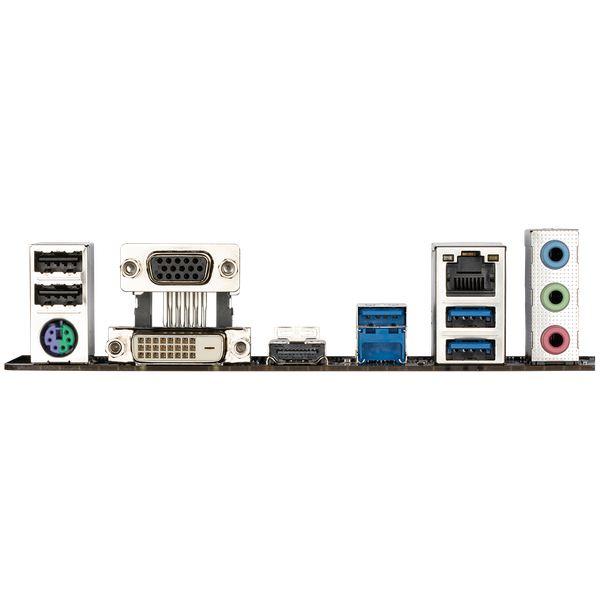

    Connectors    - Various internal connectors, including power connectors, fan headers, LED strip headers, and more. - Rear I/O includes a variety of ports, including PS/2, USB, audio, and display outputs.
    BIOS    - AMI UEFI BIOS with various features.
    Software    - Support for the APP Center with various applications like @BIOS, EasyTune, RGB Fusion, and more.
    Operating System Support    - Supports Windows 11 64-bit and Windows 10 64-bit.
    Form Factor    - Micro ATX Form Factor, measuring 24.4cm x 24.4cm.

2,090,000₫

Mã sản phẩm: M.GG.B560M.DS3H.V3

      ⚙ THÔNG SỐ CƠ BẢN:

      • Supports 10th Gen Intel® Core™ Processors and 11th Gen Intel® Core™ Processors*
      • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
      • NVMe PCIe Gen3 X4 M.2 Connectors
      • Smart Fan 5 Features Multiple Temperature Sensors,Hybrid Fan Headers with FAN STOP
      • Intel® Optane™ Memory Ready
      • Intel® GbE LAN with cFosSpeed Internet Accelerator Software
      • 3 Display Interfaces Support
      • RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
      • Anti-Sulfur Resistors Design
      • Q-Flash Plus Update BIOS without Installing the CPU、Memory and Graphics Card
      Xem thêm cấu hình chi tiết
      SẮP VỀ HÀNG (Vui lòng liên hệ trực tiếp)

      Gọi đặt mua 1900 0243 (8:30 - 21:00)

      MÔ TẢ SẢN PHẨM
          Component    Specification
          CPU Support    - 11th and 10th Generation Intel Core i9, i7, i5, i3, Pentium, and Celeron processors. - L3 cache varies with the CPU.
          Memory Support    - Supports DDR4 memory modules with varying speeds depending on the processor generation. - 4 DDR4 DIMM sockets supporting up to 128 GB of system memory. - Dual channel memory architecture. - Support for ECC Un-buffered DIMM and Extreme Memory Profile (XMP) memory modules.
          Integrated Graphics    - Intel HD Graphics support with multiple display outputs, including D-Sub, DVI-D, and HDMI ports. - Support for up to 3 displays at the same time. - Maximum shared memory of 512 MB.
          Audio    - Realtek Audio CODEC. - High Definition Audio with support for 2/4/5.1/7.1-channel audio. - Configurable audio jack functionality.
          LAN    - Intel GbE LAN chip with support for 1 Gbps/10 Mbps/100 Mbps.
          Expansion Slots    - 1 x PCI Express x16 slot running at x16 (PCIEX16). - 1 x PCI Express x16 slot running at x4 (PCIEX4). - 2 x PCI Express x1 slots (all conform to PCI Express 3.0 standard).
          Storage    - 1 x M.2 connector for PCIe x4/x2 SSD support. - 4 x SATA 6Gb/s connectors with support for RAID 0, 1, 5, and 10.
          USB Ports    - 5 x USB 3.2 Gen 1 ports (3 on the back panel, 2 through internal headers). - 6 x USB 2.0/1.1 ports (2 on the back panel, 4 through internal headers).
          Connectors    - Various internal connectors, including power connectors, fan headers, LED strip headers, and more. - Rear I/O includes a variety of ports, including PS/2, USB, audio, and display outputs.
          BIOS    - AMI UEFI BIOS with various features.
          Software    - Support for the APP Center with various applications like @BIOS, EasyTune, RGB Fusion, and more.
          Operating System Support    - Supports Windows 11 64-bit and Windows 10 64-bit.
          Form Factor    - Micro ATX Form Factor, measuring 24.4cm x 24.4cm.
