THÔNG SỐ KỸ THUẬT

BẢNG THÔNG SỐ CHI TIẾT:
    CPU Socket Type     AM4
    CPU Type    Supports AMD Ryzen 5000 series Processors
    Supports 3rd Gen Ryzen / 2nd Gen Ryzen / 1st Gen Ryzen Processors
    Supports 2nd Gen Ryzen with Radeon Vega Graphics / 1st Gen Ryzen with Radeon Vega Graphics Processors
    Supports Athlon with Radeon Vega Graphics Processors
    Chipset     AMD B450
    Number of Memory Slots    4x288pin (DDR4)
    Memory Standard    DDR4 3600(OC) / 3466(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133
    Maximum Memory Supported    128GB
    Channel Supported     Dual Channel
    ECC Supported    Non-ECC
    Buffer Supported    Un-buffered
    PCI Express 3.0 x16     1 x PCI Express 3.0 x16*
    * Actual support may vary by CPU.
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
    PCI Express 2.0 x16    1 x PCI Express 2.0 x16*
    * Running at x4.
    PCI Express x1    1 x PCI Express 2.0 x1
    ATA 6Gb/s     4 x SATA 6Gb/s
    M.2    1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2* SSD support)
    * Actual support may vary by CPU.
    * Supports only M.2 SATA SSDs when using an AMD Athlon-series / 7th Gen. A-series or Athlon X4 APU.
    SATA RAID    0/1/10
    Audio Chipset     Realtek ALC887
    Audio Channels     7.1 Channels*
    * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.
    LAN Chipset    Realtek GbE LAN chip
    Max LAN Speed    1Gbps

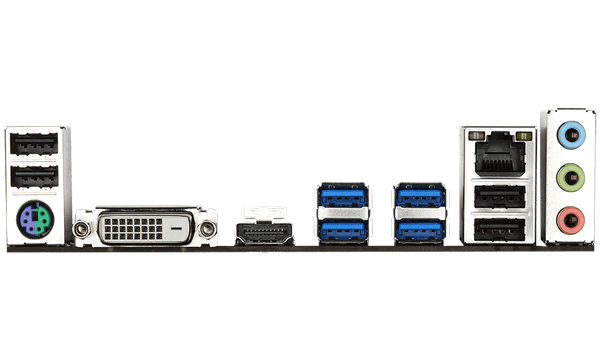

    Back I/O Ports    1 x PS/2 keyboard/mouse port
    1 x DVI-D port
    1 x HDMI port
    4 x USB 3.1 Gen 1 ports
    4 x USB 2.0/1.1 ports
    1 x RJ-45 port
    3 x audio jacks

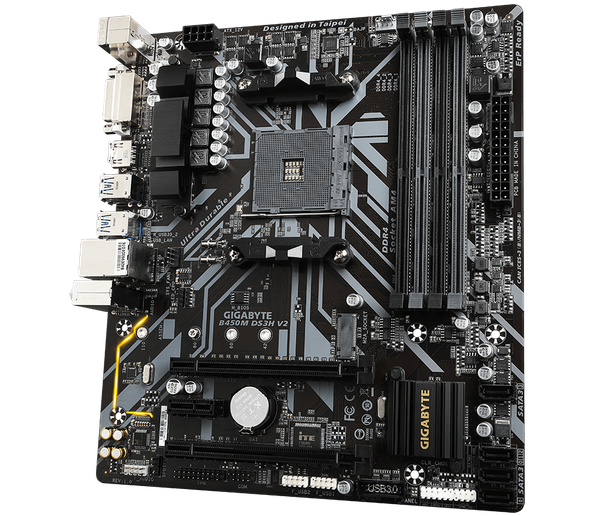

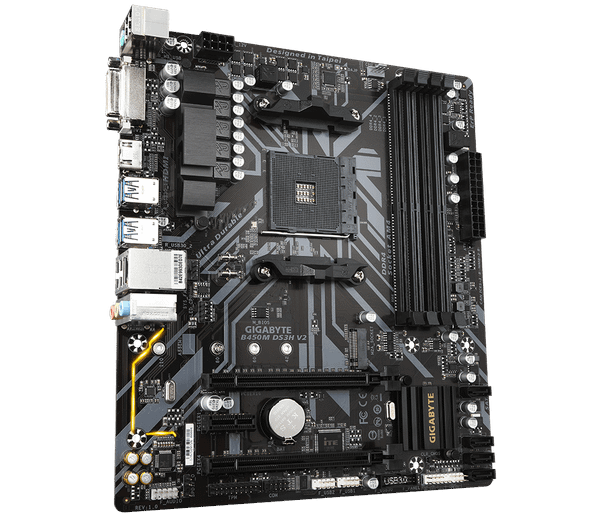

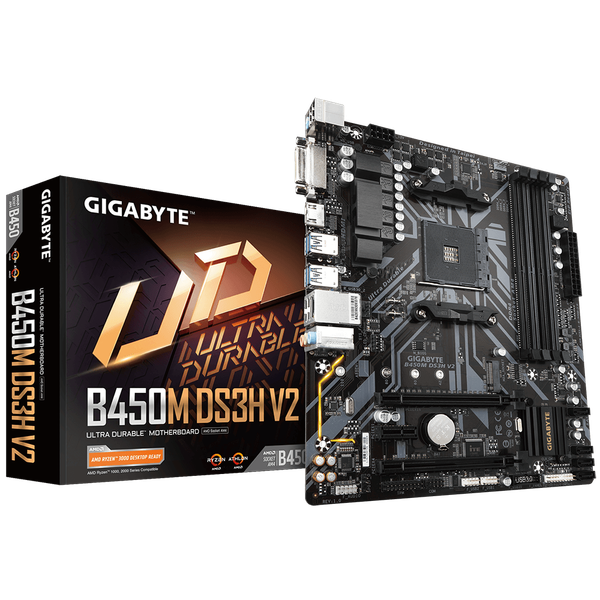

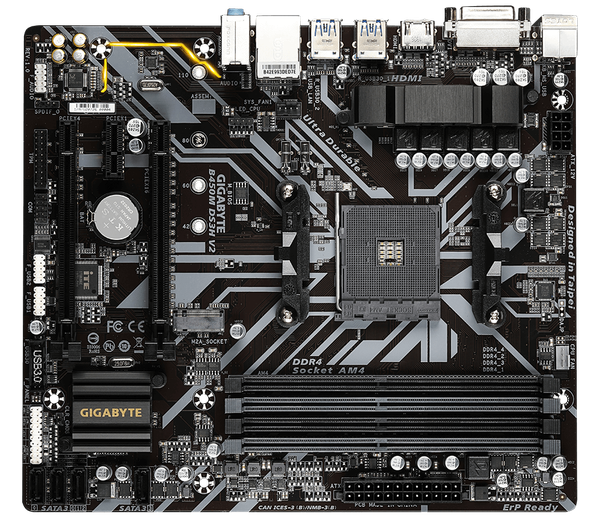

Mainboard Gigabyte B450M DS3H V2 (rev. 1.x) | AMD B450, Socket AM4, Micro ATX, 4 khe DDR4

Mã sản phẩm: M.GG.B450M.DS3H.V2
Giá:
Liên hệ

Đăng ký nhận thông tin khi có hàng

Khuyến mãi - ưu đãi Khuyến mãi - ưu đãi
    Gọi đặt mua: 1900 0243 (8:30 - 21:00)
    SẮP VỀ HÀNG (Vui lòng liên hệ trực tiếp)

    ĐẶC ĐIỂM NỔI BẬT

    ⚙ THÔNG SỐ SẢN PHẨM:

    • Chipset AMD B450
    • Hỗ trợ AMD Ryzen 5000 series Processors
    • Hỗ trợ 3rd Gen Ryzen / 2nd Gen Ryzen / 1st Gen Ryzen Processors
    • Hỗ trợ 2nd Gen Ryzen with Radeon Vega Graphics / 1st Gen Ryzen with Radeon Vega Graphics Processors
    • DDR4 3600(OC) / 3466(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133
    Xem thêm cấu hình chi tiết
    MÔ TẢ SẢN PHẨM
    BẢNG THÔNG SỐ CHI TIẾT:
        CPU Socket Type     AM4
        CPU Type    Supports AMD Ryzen 5000 series Processors
        Supports 3rd Gen Ryzen / 2nd Gen Ryzen / 1st Gen Ryzen Processors
        Supports 2nd Gen Ryzen with Radeon Vega Graphics / 1st Gen Ryzen with Radeon Vega Graphics Processors
        Supports Athlon with Radeon Vega Graphics Processors
        Chipset     AMD B450
        Number of Memory Slots    4x288pin (DDR4)
        Memory Standard    DDR4 3600(OC) / 3466(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133
        Maximum Memory Supported    128GB
        Channel Supported     Dual Channel
        ECC Supported    Non-ECC
        Buffer Supported    Un-buffered
        PCI Express 3.0 x16     1 x PCI Express 3.0 x16*
        * Actual support may vary by CPU.
        * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
        PCI Express 2.0 x16    1 x PCI Express 2.0 x16*
        * Running at x4.
        PCI Express x1    1 x PCI Express 2.0 x1
        ATA 6Gb/s     4 x SATA 6Gb/s
        M.2    1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2* SSD support)
        * Actual support may vary by CPU.
        * Supports only M.2 SATA SSDs when using an AMD Athlon-series / 7th Gen. A-series or Athlon X4 APU.
        SATA RAID    0/1/10
        Audio Chipset     Realtek ALC887
        Audio Channels     7.1 Channels*
        * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.
        LAN Chipset    Realtek GbE LAN chip
        Max LAN Speed    1Gbps
        Back I/O Ports    1 x PS/2 keyboard/mouse port
        1 x DVI-D port
        1 x HDMI port
        4 x USB 3.1 Gen 1 ports
        4 x USB 2.0/1.1 ports
        1 x RJ-45 port
        3 x audio jacks
