THÔNG SỐ KỸ THUẬT

BẢNG THÔNG SỐ CHI TIẾT:

    Motherboard Series    CVN Series
    Chipset    Intel Z790
    Processor    Support the 13th and 12th generation Intel adapting to the LGA 1700 slot of the motherboard ® Core TM, Pentium ® And Cylon ® processor
    Memory    4 DDR5 memory sockets are provided, which can support up to 128 GB of memory (a single socket can support up to 32 GB of memory). Support DDR5-6400 (OC)/6200 (OC)/6000 (OC)/5800 (OC)/5600 (OC)/5400 (OC)/5200 (OC)/5000 (OC)/4800MHz memory, Extreme Memory Profile (XMP) memory technology, and dual channel memory technology
    SATA Ports    3 M.2 slots and 6 SATA 6Gb/s hard disk interfaces. M.2_1 slot: support 2242/2280 specification M.2 SSD (PCIe 4.0 x4, CPU channel), M.2_2/M.2_3 slots: support 2242/2260/2280 M.2 SSD (PCIe 4.0 x4, PCH channel)

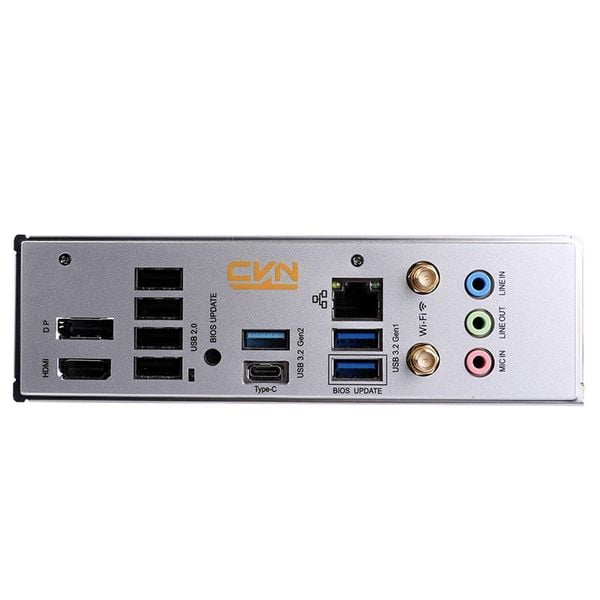

    Board I/O    Rear I/O: 1×USB 3.2 Gen 2 Type-C interface; 1×USB 3.2 Gen 2 Type-A interface; 2×USB 3.2 Gen 1 Type-A interfaces; 4×USB 2.0 interfaces; 1×DP 1.2 interface, supporting a maximum resolution of 4K 60Hz; 1×HDMI 2.0 interface, supporting up to 4K 60Hz resolution; 1×2.5G network interface; 3×audio interfaces; 2×WiFi 6 antenna interfaces; 1×BIOS update key. On board: 1×USB 2.0 pins; 1×USB 3.2 Gen 1 pin; 1×USB 3.2 Gen 1 Type-C slot; 1×CPU fan pin; 3×system fan pins; 1×water cooling pump pin; 2×5V 3-pin ARGB pins; 2×12V 4-pin RGB pins; 1×front audio pin; 1×front panel pin; 1×spraker pin; 1×CMOS clearing key; 1×serial port contact pin; 1×BIOS burner pin; 1×POST card pin; 1×ME write protection jumper; 1×RGB light effect control jumper
    Expansion Slots    1×PCIe 5.0 x16 slot; 1×PCIe 3.0 x4 slots
    BIOS    128M UEFI, support multiple languages
    Power Management    Support S3/S4 wake-up, network S5 wake-up, support USB wake-up, support timing boot, call boot
    Hardware Monitor    CPU Fan speed Controlled,SYSTEM Fan speed Monitoring,CPU Temperature Monitoring,System Temperature Monitoring,and Voltage monitoring
    LAN    RTL8125 2.5Gbit LAN
    Audio    5.1-Channel High Definition audio CODEC
    Configuration    245 x 245 mm,M-ATX

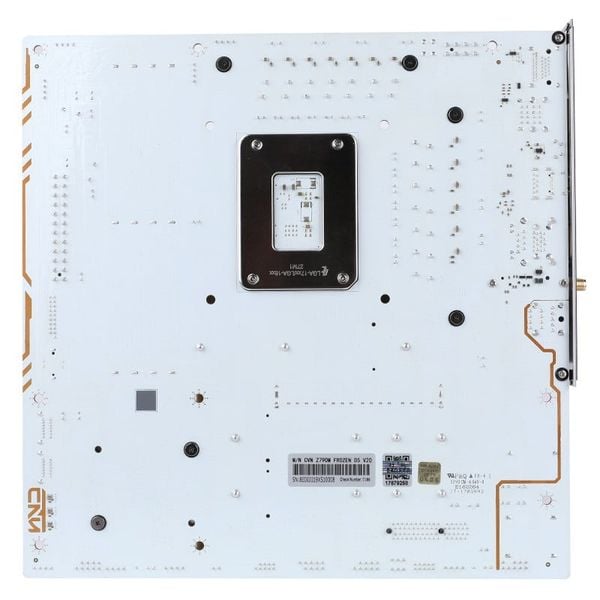

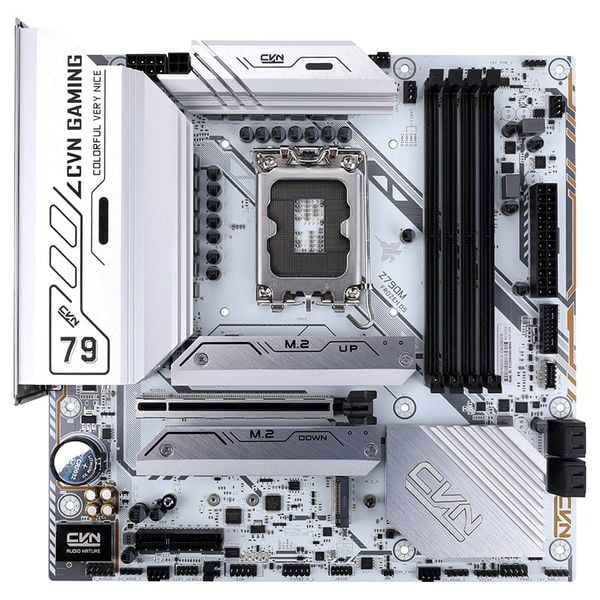

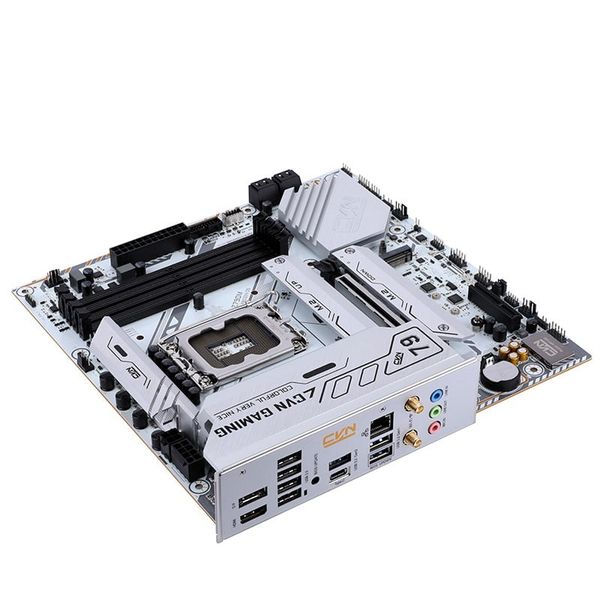

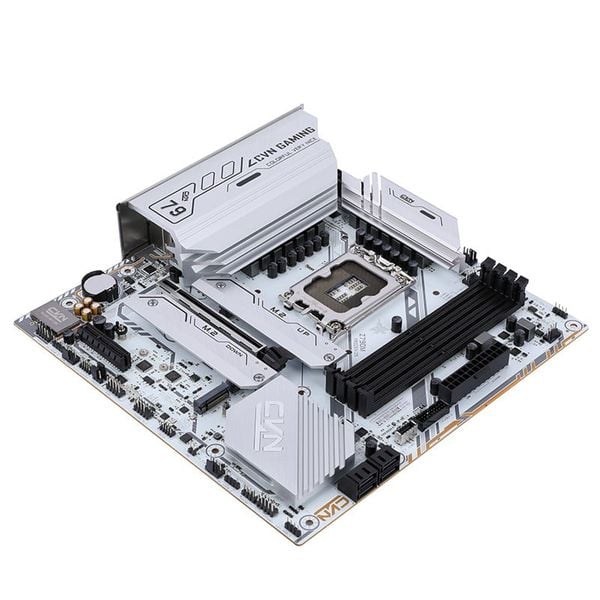

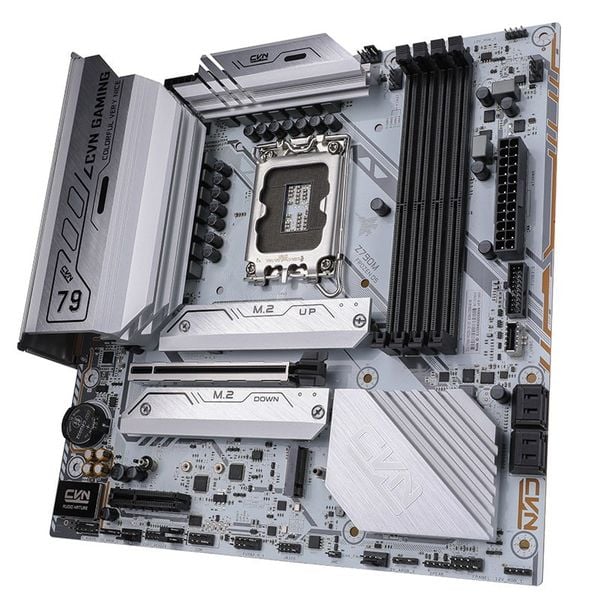

Mainboard Colorful CVN Z790M Frozen V20 Wifi DDR5 | LGA 1700, mATX, 4 khe RAM

Mã sản phẩm: M.CLF.Z790M.Wifi6E.Frozen.D5
Giá:
Liên hệ

Đăng ký nhận thông tin khi có hàng

Ưu đãi thanh toán
  • VPBank

Giảm đến 300.000đ khi mở thẻ và thanh toán qua VPBank SenID. Xem chi tiết

SẮP VỀ HÀNG (Vui lòng liên hệ trực tiếp)

ĐẶC ĐIỂM NỔI BẬT

⚙ THÔNG SỐ CƠ BẢN:

  • Motherboard Series: CVN Series
  • Chipset: Intel Z790
  • Processor: Support the 13th and 12th generation Intel adapting to the LGA 1700 slot of the motherboard ® Core TM, Pentium ® And Cylon ® processor
  • Memory: 4 DDR5 memory sockets are provided, which can support up to 128 GB of memory

🛒 Xem thêm các sản phẩm Mainboard - Bo mạch chủ tại đây



Xem thêm
MÔ TẢ SẢN PHẨM
BẢNG THÔNG SỐ CHI TIẾT:

    Motherboard Series    CVN Series
    Chipset    Intel Z790
    Processor    Support the 13th and 12th generation Intel adapting to the LGA 1700 slot of the motherboard ® Core TM, Pentium ® And Cylon ® processor
    Memory    4 DDR5 memory sockets are provided, which can support up to 128 GB of memory (a single socket can support up to 32 GB of memory). Support DDR5-6400 (OC)/6200 (OC)/6000 (OC)/5800 (OC)/5600 (OC)/5400 (OC)/5200 (OC)/5000 (OC)/4800MHz memory, Extreme Memory Profile (XMP) memory technology, and dual channel memory technology
    SATA Ports    3 M.2 slots and 6 SATA 6Gb/s hard disk interfaces. M.2_1 slot: support 2242/2280 specification M.2 SSD (PCIe 4.0 x4, CPU channel), M.2_2/M.2_3 slots: support 2242/2260/2280 M.2 SSD (PCIe 4.0 x4, PCH channel)
    Board I/O    Rear I/O: 1×USB 3.2 Gen 2 Type-C interface; 1×USB 3.2 Gen 2 Type-A interface; 2×USB 3.2 Gen 1 Type-A interfaces; 4×USB 2.0 interfaces; 1×DP 1.2 interface, supporting a maximum resolution of 4K 60Hz; 1×HDMI 2.0 interface, supporting up to 4K 60Hz resolution; 1×2.5G network interface; 3×audio interfaces; 2×WiFi 6 antenna interfaces; 1×BIOS update key. On board: 1×USB 2.0 pins; 1×USB 3.2 Gen 1 pin; 1×USB 3.2 Gen 1 Type-C slot; 1×CPU fan pin; 3×system fan pins; 1×water cooling pump pin; 2×5V 3-pin ARGB pins; 2×12V 4-pin RGB pins; 1×front audio pin; 1×front panel pin; 1×spraker pin; 1×CMOS clearing key; 1×serial port contact pin; 1×BIOS burner pin; 1×POST card pin; 1×ME write protection jumper; 1×RGB light effect control jumper
    Expansion Slots    1×PCIe 5.0 x16 slot; 1×PCIe 3.0 x4 slots
    BIOS    128M UEFI, support multiple languages
    Power Management    Support S3/S4 wake-up, network S5 wake-up, support USB wake-up, support timing boot, call boot
    Hardware Monitor    CPU Fan speed Controlled,SYSTEM Fan speed Monitoring,CPU Temperature Monitoring,System Temperature Monitoring,and Voltage monitoring
    LAN    RTL8125 2.5Gbit LAN
    Audio    5.1-Channel High Definition audio CODEC
    Configuration    245 x 245 mm,M-ATX
