MÔ TẢ SẢN PHẨM

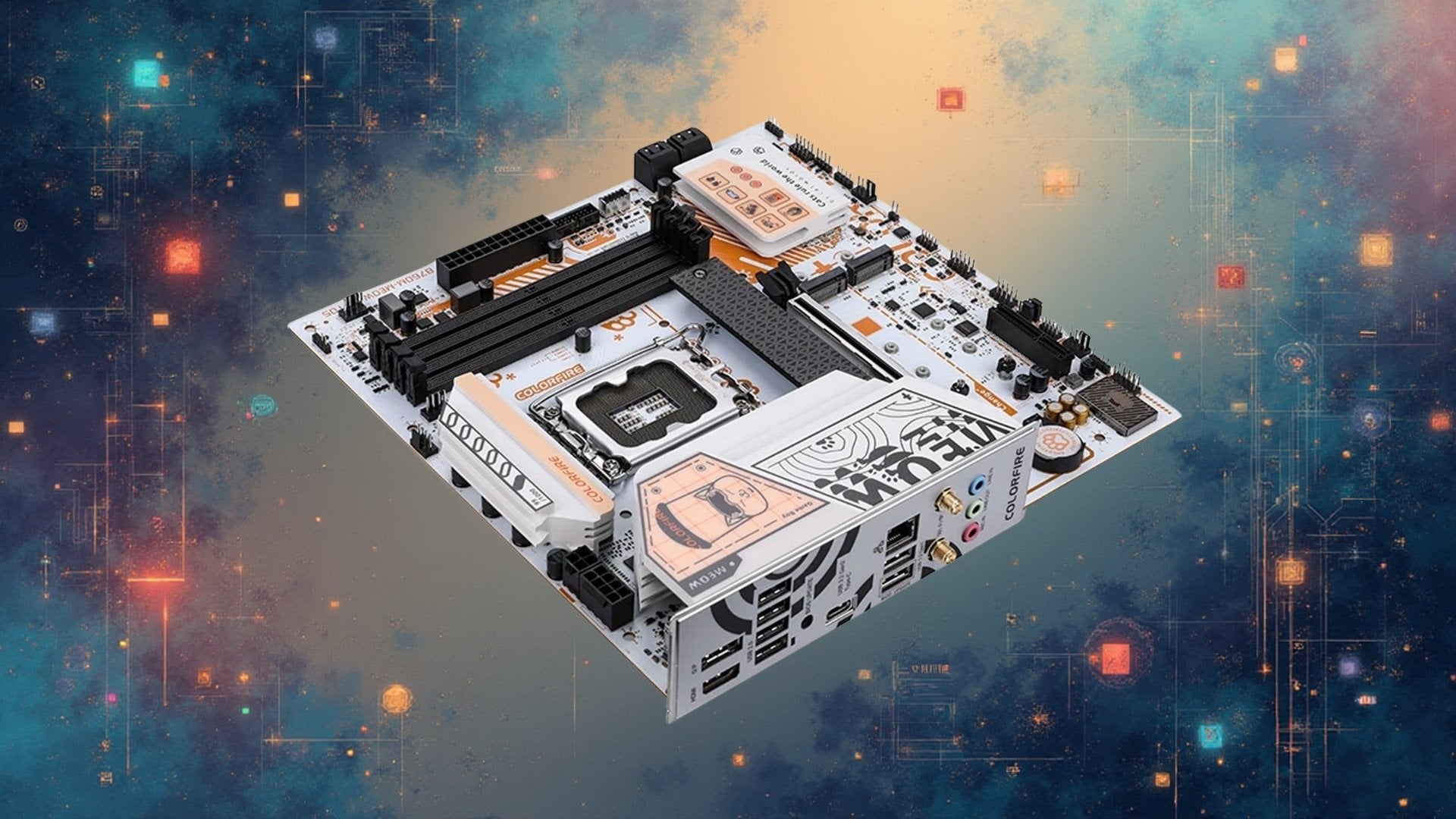

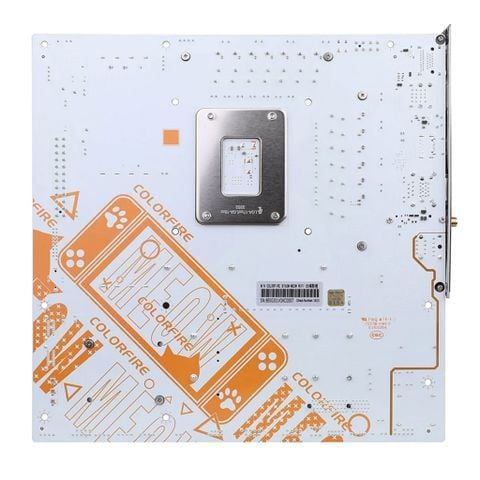

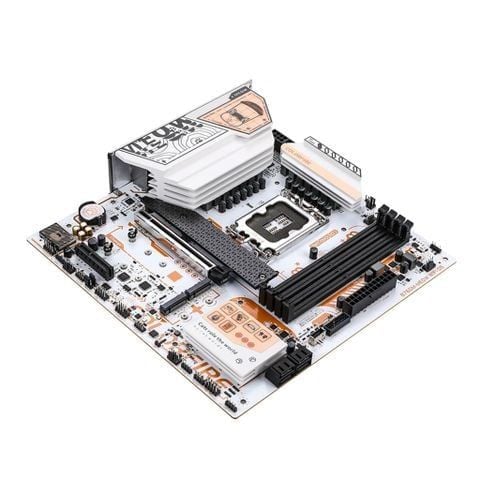

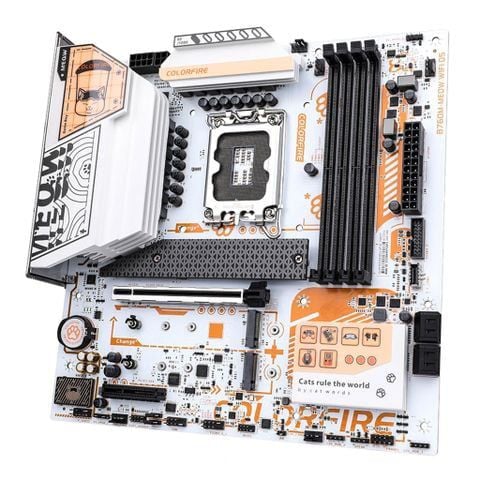

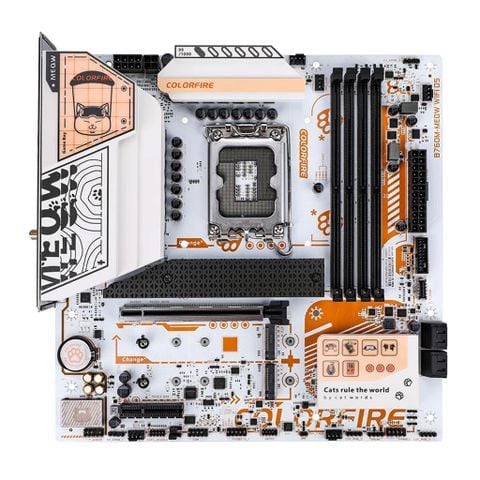

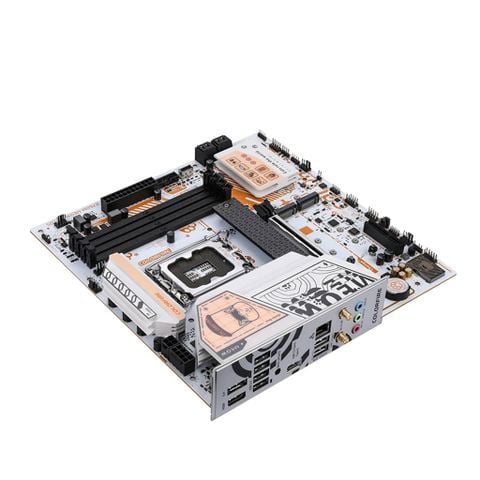

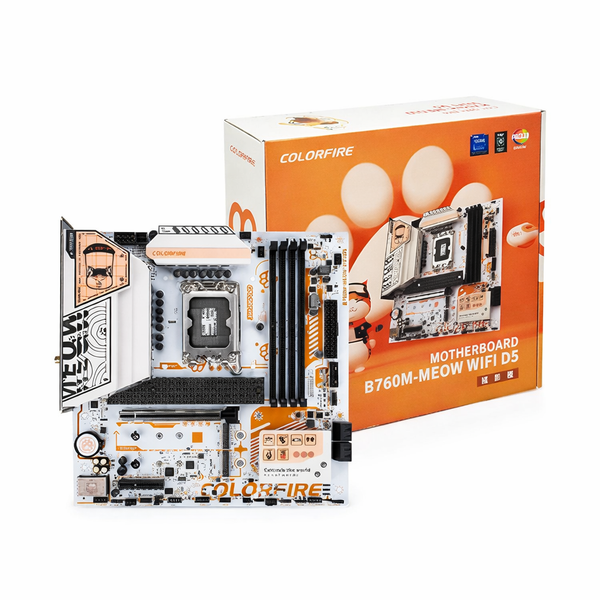

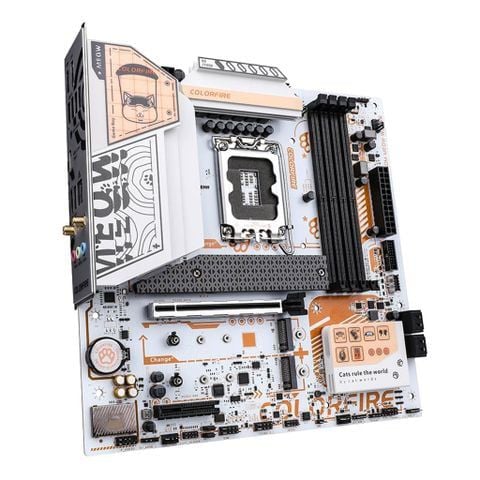

| Model | COLORFIRE B760M-MEOW WIFI D5 ORANGE |
| Product Series | COLORFIRE Series |
| Chipset | Intel B760 |
| Processor | Support the 13th and 12th generation Intel adapting to the LGA 1700 slot of the motherboard ® Core TM, Pentium ® And Cylon ® Processor |
| (* Please visit www.colorful.cn for the latest processor support list) | |
| Memory | Four DDR5 memory sockets are provided, which can support up to 192 GB of memory (a single socket can support up to 48 GB of memory) |
| - DDR5-7200 (OC)/7000 (OC)/6800 (OC)/6600 (OC)/6400 (OC)/6200 (OC)/6000 (OC)/5800 (OC)/5600 (OC)/5400 (OC)/5200 (OC)/5000 (OC)/4800MHz memory | |
| - Intel is supported ® Extreme Memory Profile (XMP) memory technology | |
| - supports dual channel memory technology | |
| (* Please visit www.colorful.cn for the latest memory compatibility list) | |
| SATA Ports | A total of 3 M.2 slots and 4 SATA 6Gb/s hard disk interfaces are supported, Support the creation of RAID 0, RAID 1, RAID 5, and RAID 10 disk arrays using SATA hard disk devices |
| - M.2_ 1 slot: support 2242/2280 M.2 SSD (PCIe 4.0 x4, CPU channel) | |
| - M.2_ 2 slots: support 2242/2260/2280 M.2 SSD (PCIe 4.0 x4, PCH channel) | |
| - M.2_ 3 slots: support 2242/2260/2280 M.2 SSD (PCIe 4.0 x4, PCH channel) | |
| (* See the official BIOS user guide of Colorful for the steps to create a RAID disk array) | |

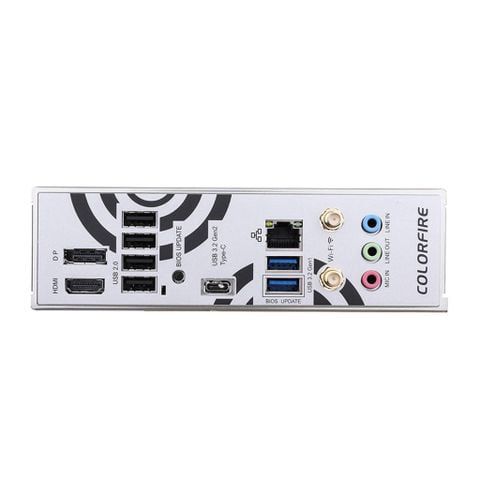

| Board I/O | Rear I/O interface: |
| - 4×USB 2.0 interfaces | |
| - 2×USB 3.2 Gen 1 Type-A interfaces | |
| - 1×USB 3.2 Gen 2 Type-C interface | |
| - 1×DP 1.2 interface, supporting up to 4K 60Hz resolution | |
| - 1×HDMI 2.0 interface, Up to 4K 60Hz resolution | |
| - 1×2.5G network interface | |
| - 2×Wi-Fi 6 antenna interfaces | |
| - 3×audio interfaces (audio input/audio output/microphone) | |
| - 1×BIOS update button | |
| On board device interface: | |
| - 1×CPU fan pin | |
| - 3×system fan pins | |
| - 1×water-cooled pump pin | |
| - 1×USB 2.0 pin can expand 2 USB 2.0 Type-A interfaces | |
| - 1×USB 3.2 Gen 1 pin can expand 2 USB 3.2 Gen 1 Type-A interfaces | |
| - 1×USB 3.2 Gen 1 Type-C slot can expand 1 USB 3.2 Gen 1 Type-C interface | |
| - 2×5V 3-pin ARGB pins | |
| - 2×12V 4-pin RGB pins | |
| - 1×Front audio pin | |
| - 1×front panel pin | |
| - 1×speaker pin | |
| - 1×clear CMOS jumper | |
| - 1×COM port pin | |
| - 1×BIOS burner pin | |
| - 1×POST card pin | |
| - 1×ME write protection jumper | |
| - 1×RGB light effect control jumper | |
| Expansion Slots | 1×PCIe 5.0 x16 slot |
| 1×PCIe 3.0 x4 slot | |
| BIOS | 128M UEFI, supporting multiple languages |
| Power Management | Support S3, S4, network S5 wake-up, regular power on and power on |
| Hardware Monitor | CPU fan speed is controllable, system fan speed is controllable（Fan1 supports independent control and Fan2 and Fan3 share control）, CPU temperature monitoring, system temperature monitoring, and each group of voltage monitoring |
| LAN | RTL8125 2.5Gbit LAN, AX201/AX200 WiFi 6 wireless network card, Bluetooth 5.2 |
| Audio | 5.1 Channel sound card |
| Configuration | M-ATX |
| 245mm x 245mm |
