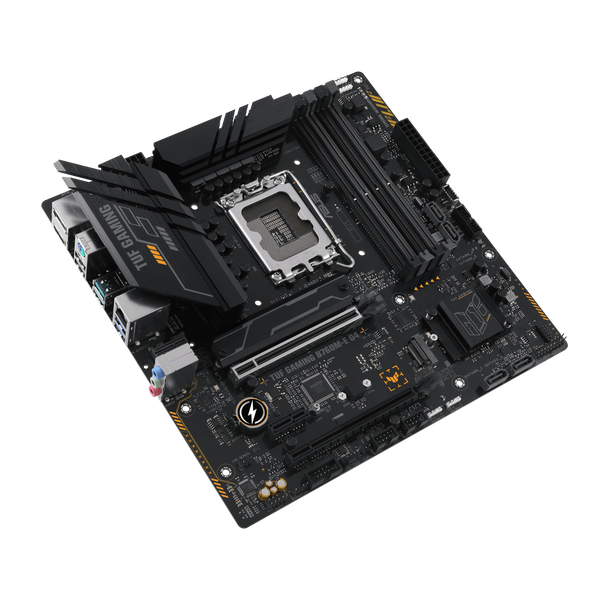

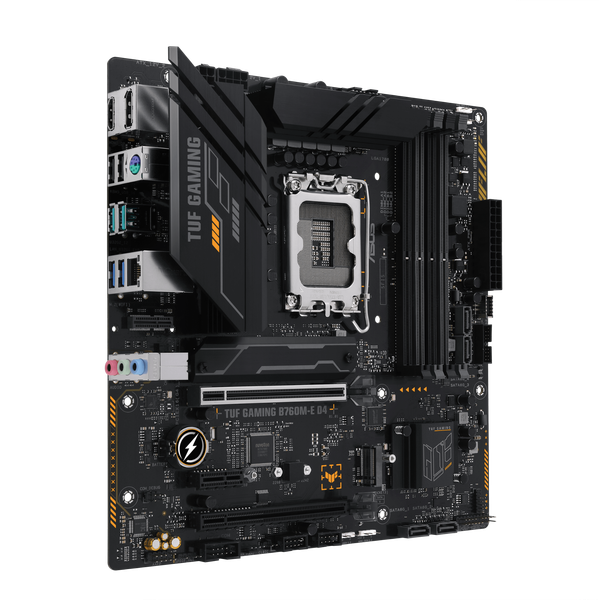

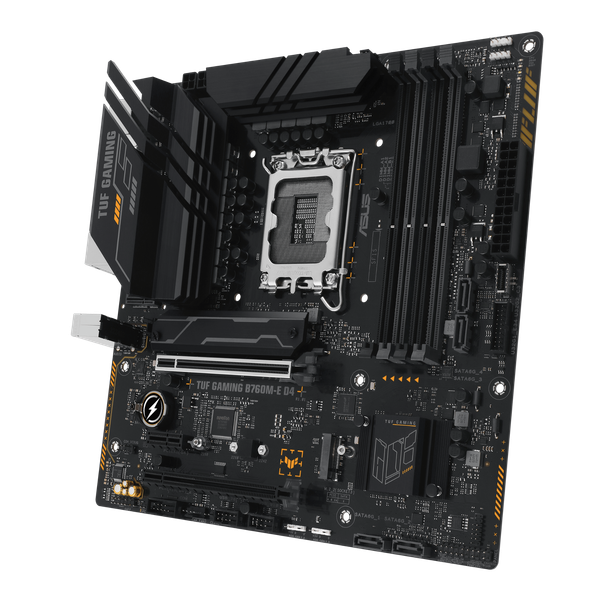

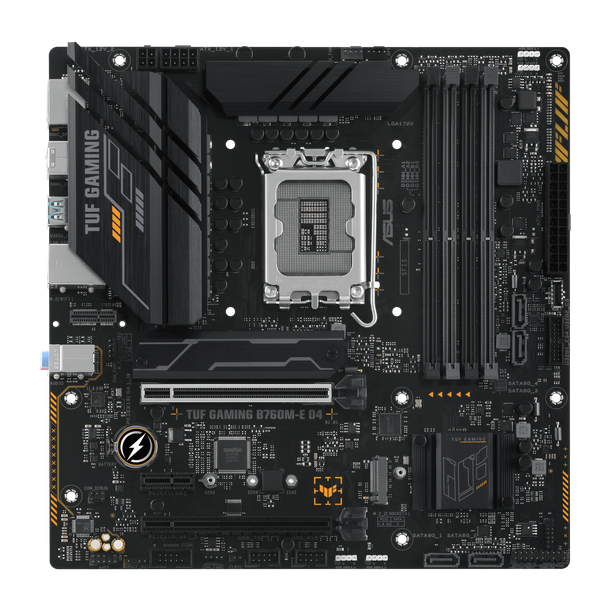

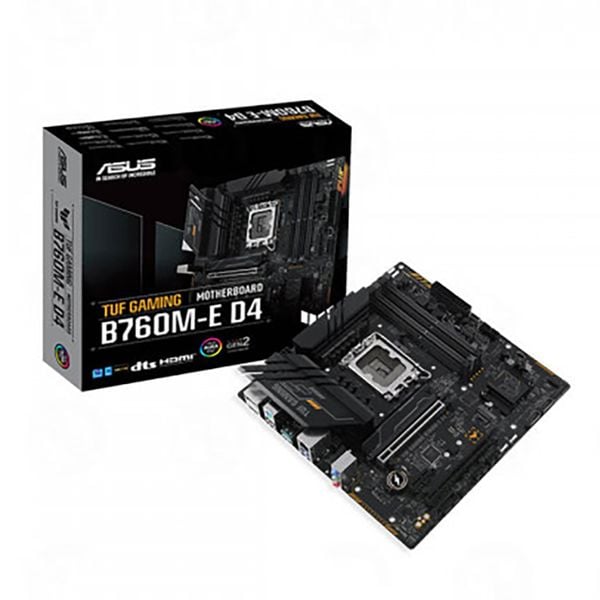

Mainboard ASUS TUF GAMING B760M-E D4 | Intel B760, Socket 1700, mATX, 4 khe DDR4

Xem tất cả điểm nổi bật (1/ )
Đóng
  • Bài viết đánh giá



⚙ THÔNG SỐ CƠ BẢN:

  • Model TUF GAMING B760M-E D4
  • Socket: 1700
  • Chipset Intel® B760 Chipset
  • Memory: 4 x DDR4
  • Form: mATX

    Model    TUF GAMING B760M-E D4
    CPU    Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
    Chipset    Intel® B760 Chipset
    Memory    4 x DIMM slots, Max. 128GB, DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.
    Graphics    1 x DisplayPort**
1 x HDMITM port***
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.
    Expansion Slots    Intel® 13th & 12th Gen Processors
1 x PCIe 4.0 x16 slot
Intel® B760 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
1 x PCIe 4.0 x1 slot
Note: To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
    Storage    Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel® 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel® B760 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
    Ethernet    1 x Realtek 2.5Gb Ethernet
TUF LANGuard
    Wireless & Bluetooth    Vertical M.2 slot only (Key E, CNVi & PCIe)*
* Wi-Fi module is sold separately.
    USB    Rear USB (Total 6 ports)
2 x USB 3.2 Gen 2 (10G) ports(2 x Type-A)
2 x USB 3.2 Gen1 (5G) ports(2 x Type-A)*
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 2 (10G) connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports*
2 x USB 2.0 headers support 4 additional USB 2.0 ports
* U32G1_E1 port, U32G1_E2 port, U32G1_E3 port and U32G1_E4 port share the bandwidth.
    Audio    Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection,
Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback"
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

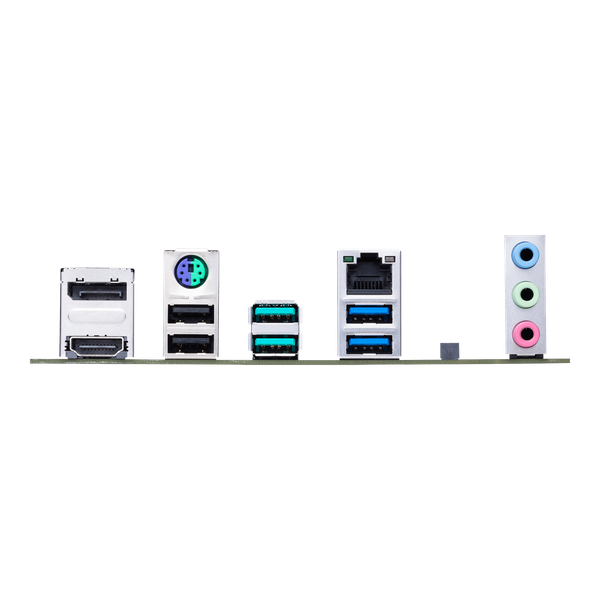

    Back Panel I/O Ports    2 x USB 3.2 Gen 2 (10G) ports (2 x Type-A)
2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMITM port
1 x Realtek2.5Gb Ethernet port
3 x Audio jacks
1 x Vertical M.2 slot (Key E)
1 x PS/2 Keyboard/Mouse combo port
    Internal I/O Connectors    Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
2 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2 (10G) connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x AURA RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x S/PDIF Out header
    Special Features    ASUS TUF PROTECTION
- DIGI+ VRM (- Digital power design with DrMOS)
- ESD Guards
- TUF LANGuard
- Overvoltage Protection
- SafeSlot Core+
- Stainless-Steel Back I/O
ASUS Q-Design
- M.2 Q-Latch
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- Flexible M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- ProCool
- SafeDIMM
AURA Sync
- AURA RGB header
- Addressable Gen 2 headers
    Software Features    ASUS Exclusive Software
Armoury Crate
- AURA Creator
- AURA Sync
- Fan Xpert 2+
- Power Saving
- Two-Way AI Noise Cancelation
AI Suite 3
- DIGI+ VRM
- PC Cleaner
TUF GAMING CPU-Z
DTS Audio Processing
Norton 360 for Gamers (60 Days Free Trial)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
    BIOS    128 Mb Flash ROM, UEFI AMI BIOS
    Manageability    WOL by PME, PXE

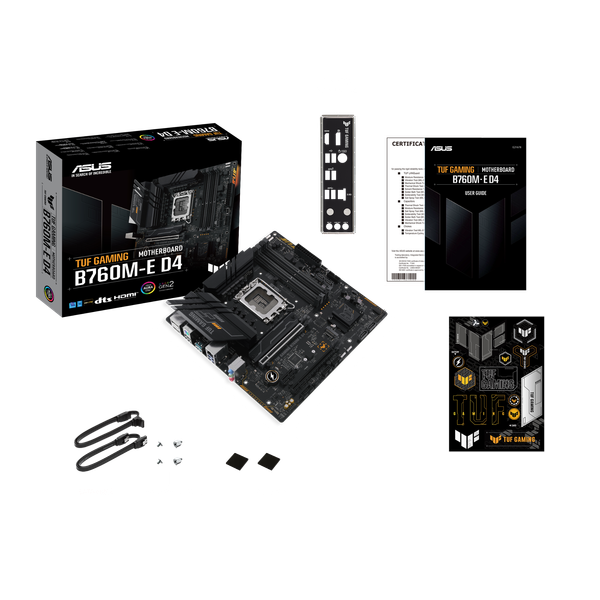

    Accessories    Cables
2 x SATA 6Gb/s cables
Miscellaneous

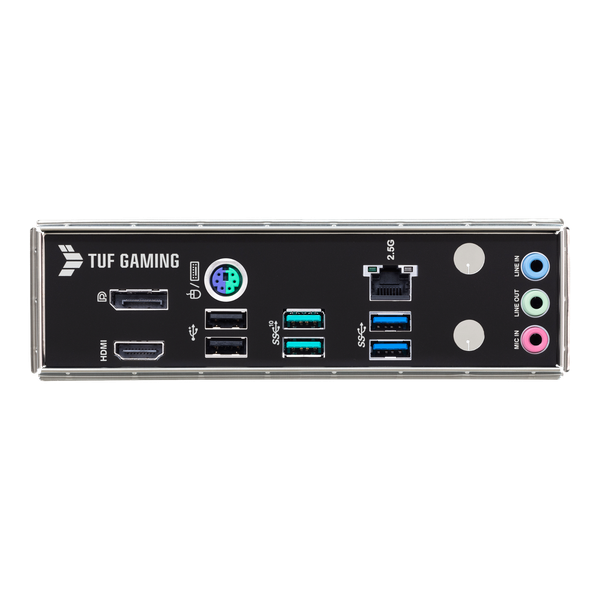

1 x I/O Shield
1 x M.2 Rubber Package
1 x M.2 SSD screw package
1 x TUF Gaming sticker
Documentation
1 x TUF Certification card
1 x User guide
    Operating System    Windows® 11, Windows® 10 64-bit
    Form Factor    mATX Form Factor
9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )

Thêm vào so sánh Đã thêm vào so sánh

2,945,000₫

Xem siêu thị còn hàng

Mã sản phẩm: M.AS.B760M.E.TUF.D4
