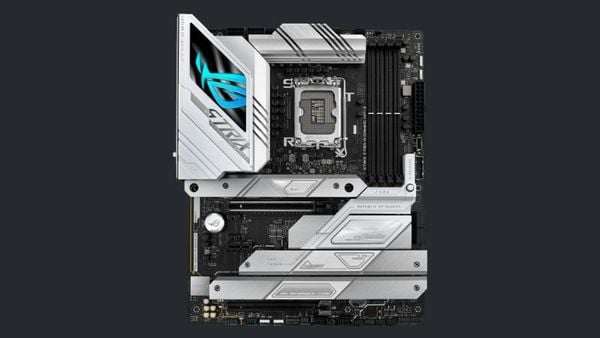

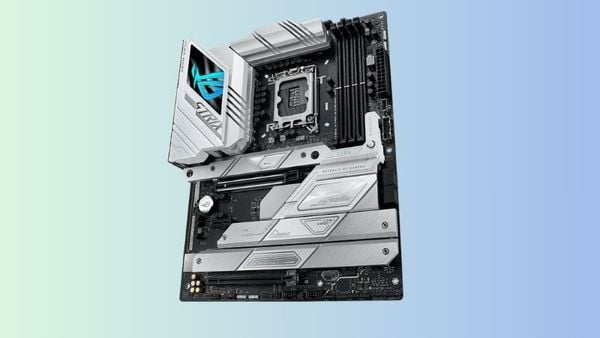

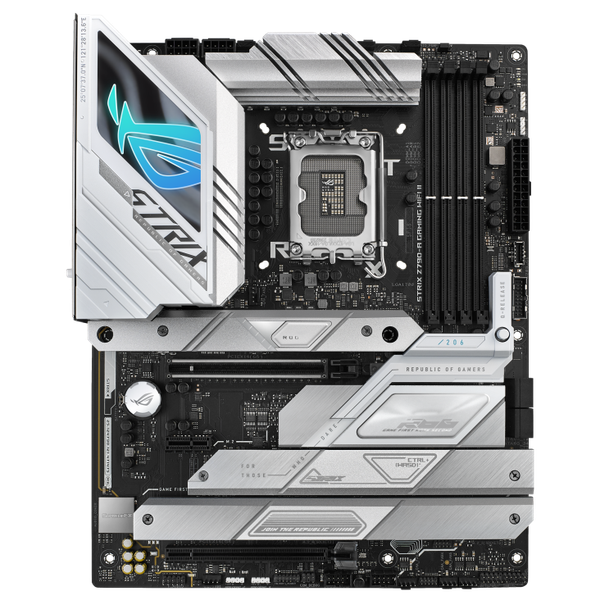

Mainboard ASUS ROG Strix Z790-A GAMING WIFI II | Intel Z790, Socket 1700, ATX, 4 khe DDR5, WiFi 7

Xem tất cả điểm nổi bật (1/ )
Đóng
  • Bài viết đánh giá

⚙ THÔNG SỐ CƠ BẢN:

  • Chipset: Intel Z790
  • Socket: LGA 1700
  • Form factor: ATX
  • Memory: 4 khe DDR5
  • Wifi: WiFi 7

Model: ROG STRIX Z790-A GAMING WIFI II

CPU Support:

  • Intel® Socket LGA1700 for Intel® Core™ Next-Gen & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold, and Celeron® Processors
  • Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 (Dependent on CPU type)
  • For a complete list of supported CPUs, please refer to www.asus.com

Chipset: Intel® Z790 Chipset

Memory:

  • 4 x DIMM slots, max. 192GB, DDR5 8000+(OC)/7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 ECC and Non-ECC, Un-buffered Memory
  • Dual-channel memory architecture
  • Supports Intel® Extreme Memory Profile (XMP), OptiMem II, and ASUS Enhanced Memory Profile II (AEMP II)
  • Memory compatibility depends on CPU and memory configuration. Refer to CPU/Memory Support list on the product information site or visit https://www.asus.com/support/ for details.
  • Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Graphics:

  • 1 x DisplayPort (Max. 8K@60Hz, DP 1.4)
  • 1 x HDMI™ port (Max. 4K@60Hz, HDMI 2.1)
  • Graphics specifications may vary based on CPU types. Refer to www.intel.com for updates.
  • VGA resolution support varies with processors or graphic cards.

Expansion Slots:

  • Intel® Core™ Processors (Next-Gen & 13th & 12th Gen):
    • 1 x PCIe 5.0 x16 slot
  • Intel® Z790 Chipset:
    • 1 x PCIe 4.0 x16 slot (supports x4 mode)
    • 1 x PCIe 3.0 x1 slot
  • For PCIe bifurcation and device compatibility, refer to the support site (https://www.asus.com/support/).
  • Compatibility with installed devices is available on https://www.asus.com/support/.

Storage:

  • Supports 5 x M.2 slots and 4 x SATA 6Gb/s ports
  • Intel® Core™ Processors (Next-Gen & 13th & 12th Gen):
    • M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
  • Intel® Z790 Chipset:
    • M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
    • M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
    • M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4)
    • M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
  • 4 x SATA 6Gb/s ports
  • Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.

Ethernet:

  • 1 x Intel® 2.5Gb Ethernet
  • ASUS LANGuard

Wireless & Bluetooth:

  • Wi-Fi 7:
    • 2x2 Wi-Fi 7 (802.11 a/b/g/n/ac/ax/be)
    • Supports 2.4/5/6GHz frequency band
    • Supports Wi-Fi 7 160MHz bandwidth, up to 2.4Gbps transfer rate.
  • Bluetooth® v5.4
    • Wi-Fi 6GHz frequency band regulatory may vary between countries.
    • The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

USB:

  • Rear USB (Total 12 ports):
    • 1 x USB 20Gbps port (1 x USB Type-C®)
    • 3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C®)
    • 4 x USB 5Gbps ports (4 x Type-A)
    • 4 x USB 2.0 ports (4 x Type-A)
  • Front USB (Total 7 ports):
    • 1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD Fast-charge)
    • 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
    • 2 x USB 2.0 headers support 4 additional USB 2.0 ports

Audio:

  • ROG SupremeFX 5.1 Surround Sound High Definition Audio CODEC ALC4080
    • Impedance sense for front and rear headphone outputs
    • Supports: Jack-detection, Multi-streaming, Front and Rear Panel MIC Jack-retasking
    • High-quality 120 dB SNR stereo playback output and 110 dB SNR recording input
    • Supports up to 32-Bit/384 kHz playback on the front panel
  • Audio Features:
    • SupremeFX Shielding Technology
    • Savitech SV3H712 AMP
    • Audio jacks
    • Rear optical S/PDIF out port
    • Premium audio capacitors
    • Audio cover
  • The rear panel Lime (Line out) port does not support spatial audio. To use spatial audio, connect your audio output device to the front panel audio jack.

Back Panel I/O Ports:

  • 1 x USB 20Gbps port (1 x USB Type-C®)
  • 3 x USB 10Gbps ports (2 x Type-A+1 x USB Type-C®)
  • 4 x USB 5Gbps ports (4 x Type-A)
  • 4 x USB 2.0 ports (4 x Type-A)
  • 1 x DisplayPort
  • 1 x HDMI™ port
  • 1 x Wi-Fi module
  • 1 x Intel® 2.5Gb Ethernet
  • 2 x Audio jacks
  • 1 x Optical S/PDIF out port
  • 1 x BIOS FlashBack™ button
  • 1 x Clear CMOS button

Internal I/O Connectors:

  • Fan and Cooling Related: 1 x 4-pin CPU Fan header, 1 x 4-pin CPU OPT Fan header, 1 x 4-pin AIO Pump header, 5 x 4-pin Chassis Fan headers
  • Power Related: 1 x 24-pin main power connector, 2 x 8-pin +12V power connector
  • Storage Related: 5 x M.2 slots (Key M), 4 x SATA 6Gb/s ports
  • USB: 1 x USB 20Gbps connector (supports USB Type-C®), 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports, 2 x USB 2.0 headers support 4 additional USB 2.0 ports

Miscellaneous:

  • 3 x Addressable Gen 2 headers
  • 1 x Aura RGB header
  • 1 x CPU Overvoltage jumper
  • 1 x Front panel audio header (F_AUDIO)
  • 1 x 20-3 pin system panel header with Chassis intrude function
  • 1 x Thermal sensor header
  • 1 x Thunderbolt™ (USB4®) header

Special Features:

  • Extreme Engine Digi+ with 5K Black metallic capacitors
  • ASUS Q-Design: M.2 Q-Latch, PCIe Slot Q-Release, Q-Antenna, Q-DIMM, Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) with DRAM Detection, Q-Slot
  • ASUS Thermal Solution: M.2 heatsink backplate, M.2 heatsink, VRM heatsink design
  • ASUS EZ DIY: BIOS FlashBack™ button, BIOS FlashBack™ LED, Clear CMOS button, CPU Socket lever protector, ProCool II, Pre-mounted I/O shield, SafeSlot, SafeDIMM
  • Aura Sync: Aura RGB header, Addressable Gen 2 headers
  • Front Panel USB 20Gbps with PD Fast Charge Support: Up to 30W charging, USB power delivery notification with power output wattage display (5V/9V max. 3A, 12V max 2.5A, compatible with PD3.0)

Software Features:

  • ROG Exclusive Software: ROG CPU-Z, DTS® Sound Unbound
  • ASUS Exclusive Software: Armoury Crate, AIDA64 Extreme (60 days free trial), Aura Creator, Aura Sync, Fan Xpert 4 (with AI Cooling II), GameFirst, Power Saving, Sonic Studio, Two-Way AI Noise Cancellation
  • AI Suite 3: Easy Optimization with AI Overclocking, TPU, DIGI+ VRM, Turbo app, PC Cleaner
  • MyASUS
  • USB Wattage Watcher
  • Intel Unison 2 Premium
  • Adobe Creative Cloud (Free Trial)
  • Norton 360 for Gamers (60 Days Free Trial)
  • WinRAR (40 Days Free Trial)

UEFI BIOS:

  • AI Overclocking Guide
  • ASUS EZ DIY: ASUS CrashFree BIOS 3, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode, ASUS MyHotkey
  • FlexKey
  • MemTest86

BIOS:

  • 256 Mb Flash ROM, UEFI AMI BIOS

Manageability:

  • WOL by PME, PXE

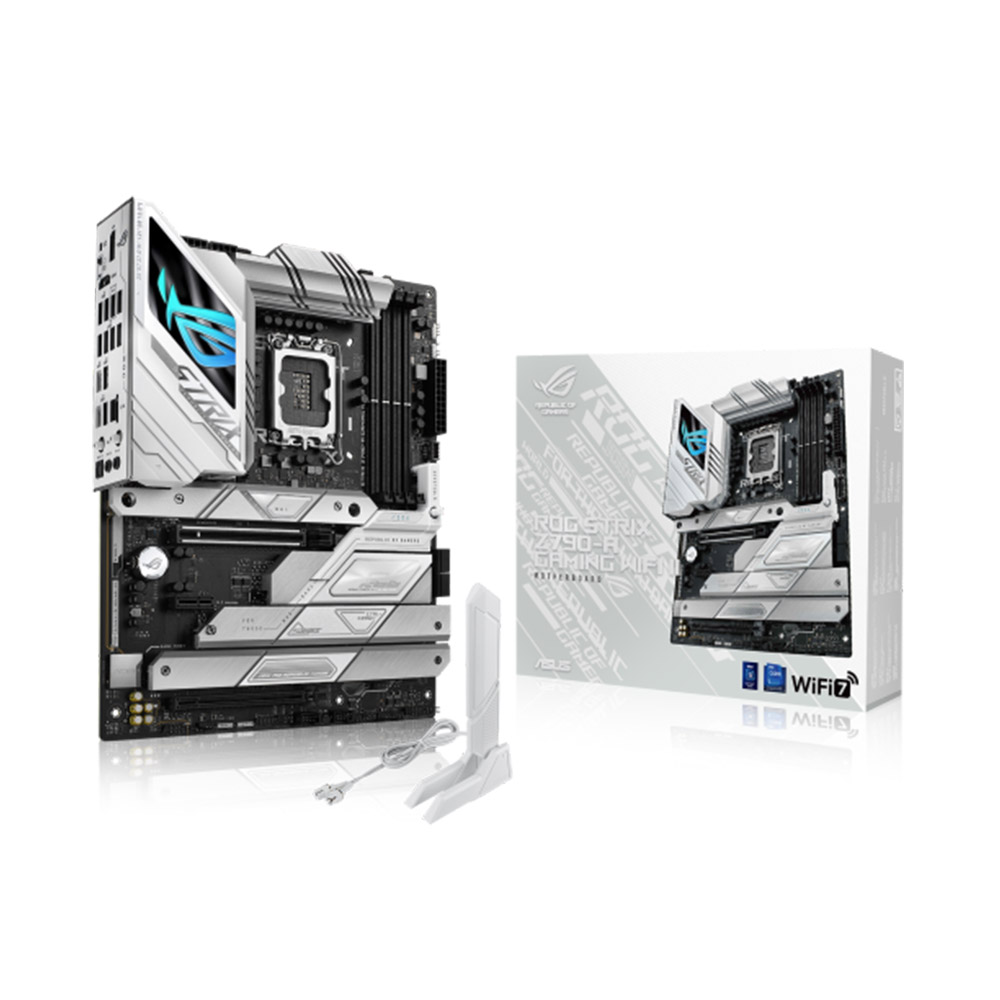

Accessories:

  • Cables: 2 x SATA 6Gb/s cables
  • Additional Cooling Kit: 1 x Thermal pad for M.2
  • Miscellaneous: 1 x ASUS Wi-Fi Q-Antenna, 1 x Cable ties package, 1 x M.2 backplate Q-Latch package, 1 x M.2 Q-Latch package, 1 x ROG key chain, 1 x ROG Strix stickers, 2 x M.2 rubber packages
  • Documentation: 1 x Quick start guide

Operating System: Windows® 11, Windows® 10 64-bit

Form Factor: ATX Form Factor, 12 inch x 9.6 inch (30.5 cm x 24.4 cm)

Thêm vào so sánh Đã thêm vào so sánh

9,888,000₫

Xem siêu thị còn hàng

Mã sản phẩm: M.AS.Z790.ROG.A.II.WIFI7.D5

      ⚙ THÔNG SỐ CƠ BẢN:

      • Chipset: Intel Z790
      • Socket: LGA 1700
      • Form factor: ATX
      • Memory: 4 khe DDR5
      • Wifi: WiFi 7
      Xem thêm cấu hình chi tiết
      MUA NGAY THÊM VÀO GIỎ HÀNG TRẢ GÓP 0% QUA THẺ Visa, Mastercard, JCB, Amex
      MUA NGAY THÊM VÀO GIỎ HÀNG TRẢ GÓP 0% QUA THẺ Visa, Mastercard, JCB, Amex

      Gọi đặt mua 1900 0243 (8:30 - 21:00)

      MÔ TẢ SẢN PHẨM

      Model: ROG STRIX Z790-A GAMING WIFI II

      CPU Support:

      • Intel® Socket LGA1700 for Intel® Core™ Next-Gen & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold, and Celeron® Processors
      • Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 (Dependent on CPU type)
      • For a complete list of supported CPUs, please refer to www.asus.com

      Chipset: Intel® Z790 Chipset

      Memory:

      • 4 x DIMM slots, max. 192GB, DDR5 8000+(OC)/7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 ECC and Non-ECC, Un-buffered Memory
      • Dual-channel memory architecture
      • Supports Intel® Extreme Memory Profile (XMP), OptiMem II, and ASUS Enhanced Memory Profile II (AEMP II)
      • Memory compatibility depends on CPU and memory configuration. Refer to CPU/Memory Support list on the product information site or visit https://www.asus.com/support/ for details.
      • Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

      Graphics:

      • 1 x DisplayPort (Max. 8K@60Hz, DP 1.4)
      • 1 x HDMI™ port (Max. 4K@60Hz, HDMI 2.1)
      • Graphics specifications may vary based on CPU types. Refer to www.intel.com for updates.
      • VGA resolution support varies with processors or graphic cards.

      Expansion Slots:

      • Intel® Core™ Processors (Next-Gen & 13th & 12th Gen):
        • 1 x PCIe 5.0 x16 slot
      • Intel® Z790 Chipset:
        • 1 x PCIe 4.0 x16 slot (supports x4 mode)
        • 1 x PCIe 3.0 x1 slot
      • For PCIe bifurcation and device compatibility, refer to the support site (https://www.asus.com/support/).
      • Compatibility with installed devices is available on https://www.asus.com/support/.

      Storage:

      • Supports 5 x M.2 slots and 4 x SATA 6Gb/s ports
      • Intel® Core™ Processors (Next-Gen & 13th & 12th Gen):
        • M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
      • Intel® Z790 Chipset:
        • M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
        • M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
        • M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4)
        • M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
      • 4 x SATA 6Gb/s ports
      • Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.

      Ethernet:

      • 1 x Intel® 2.5Gb Ethernet
      • ASUS LANGuard

      Wireless & Bluetooth:

      • Wi-Fi 7:
        • 2x2 Wi-Fi 7 (802.11 a/b/g/n/ac/ax/be)
        • Supports 2.4/5/6GHz frequency band
        • Supports Wi-Fi 7 160MHz bandwidth, up to 2.4Gbps transfer rate.
      • Bluetooth® v5.4
        • Wi-Fi 6GHz frequency band regulatory may vary between countries.
        • The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

      USB:

      • Rear USB (Total 12 ports):
        • 1 x USB 20Gbps port (1 x USB Type-C®)
        • 3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C®)
        • 4 x USB 5Gbps ports (4 x Type-A)
        • 4 x USB 2.0 ports (4 x Type-A)
      • Front USB (Total 7 ports):
        • 1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD Fast-charge)
        • 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
        • 2 x USB 2.0 headers support 4 additional USB 2.0 ports

      Audio:

      • ROG SupremeFX 5.1 Surround Sound High Definition Audio CODEC ALC4080
        • Impedance sense for front and rear headphone outputs
        • Supports: Jack-detection, Multi-streaming, Front and Rear Panel MIC Jack-retasking
        • High-quality 120 dB SNR stereo playback output and 110 dB SNR recording input
        • Supports up to 32-Bit/384 kHz playback on the front panel
      • Audio Features:
        • SupremeFX Shielding Technology
        • Savitech SV3H712 AMP
        • Audio jacks
        • Rear optical S/PDIF out port
        • Premium audio capacitors
        • Audio cover
      • The rear panel Lime (Line out) port does not support spatial audio. To use spatial audio, connect your audio output device to the front panel audio jack.

      Back Panel I/O Ports:

      • 1 x USB 20Gbps port (1 x USB Type-C®)
      • 3 x USB 10Gbps ports (2 x Type-A+1 x USB Type-C®)
      • 4 x USB 5Gbps ports (4 x Type-A)
      • 4 x USB 2.0 ports (4 x Type-A)
      • 1 x DisplayPort
      • 1 x HDMI™ port
      • 1 x Wi-Fi module
      • 1 x Intel® 2.5Gb Ethernet
      • 2 x Audio jacks
      • 1 x Optical S/PDIF out port
      • 1 x BIOS FlashBack™ button
      • 1 x Clear CMOS button

      Internal I/O Connectors:

      • Fan and Cooling Related: 1 x 4-pin CPU Fan header, 1 x 4-pin CPU OPT Fan header, 1 x 4-pin AIO Pump header, 5 x 4-pin Chassis Fan headers
      • Power Related: 1 x 24-pin main power connector, 2 x 8-pin +12V power connector
      • Storage Related: 5 x M.2 slots (Key M), 4 x SATA 6Gb/s ports
      • USB: 1 x USB 20Gbps connector (supports USB Type-C®), 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports, 2 x USB 2.0 headers support 4 additional USB 2.0 ports

      Miscellaneous:

      • 3 x Addressable Gen 2 headers
      • 1 x Aura RGB header
      • 1 x CPU Overvoltage jumper
      • 1 x Front panel audio header (F_AUDIO)
      • 1 x 20-3 pin system panel header with Chassis intrude function
      • 1 x Thermal sensor header
      • 1 x Thunderbolt™ (USB4®) header

      Special Features:

      • Extreme Engine Digi+ with 5K Black metallic capacitors
      • ASUS Q-Design: M.2 Q-Latch, PCIe Slot Q-Release, Q-Antenna, Q-DIMM, Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) with DRAM Detection, Q-Slot
      • ASUS Thermal Solution: M.2 heatsink backplate, M.2 heatsink, VRM heatsink design
      • ASUS EZ DIY: BIOS FlashBack™ button, BIOS FlashBack™ LED, Clear CMOS button, CPU Socket lever protector, ProCool II, Pre-mounted I/O shield, SafeSlot, SafeDIMM
      • Aura Sync: Aura RGB header, Addressable Gen 2 headers
      • Front Panel USB 20Gbps with PD Fast Charge Support: Up to 30W charging, USB power delivery notification with power output wattage display (5V/9V max. 3A, 12V max 2.5A, compatible with PD3.0)

      Software Features:

      • ROG Exclusive Software: ROG CPU-Z, DTS® Sound Unbound
      • ASUS Exclusive Software: Armoury Crate, AIDA64 Extreme (60 days free trial), Aura Creator, Aura Sync, Fan Xpert 4 (with AI Cooling II), GameFirst, Power Saving, Sonic Studio, Two-Way AI Noise Cancellation
      • AI Suite 3: Easy Optimization with AI Overclocking, TPU, DIGI+ VRM, Turbo app, PC Cleaner
      • MyASUS
      • USB Wattage Watcher
      • Intel Unison 2 Premium
      • Adobe Creative Cloud (Free Trial)
      • Norton 360 for Gamers (60 Days Free Trial)
      • WinRAR (40 Days Free Trial)

      UEFI BIOS:

      • AI Overclocking Guide
      • ASUS EZ DIY: ASUS CrashFree BIOS 3, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode, ASUS MyHotkey
      • FlexKey
      • MemTest86

      BIOS:

      • 256 Mb Flash ROM, UEFI AMI BIOS

      Manageability:

      • WOL by PME, PXE

      Accessories:

      • Cables: 2 x SATA 6Gb/s cables
      • Additional Cooling Kit: 1 x Thermal pad for M.2
      • Miscellaneous: 1 x ASUS Wi-Fi Q-Antenna, 1 x Cable ties package, 1 x M.2 backplate Q-Latch package, 1 x M.2 Q-Latch package, 1 x ROG key chain, 1 x ROG Strix stickers, 2 x M.2 rubber packages
      • Documentation: 1 x Quick start guide

      Operating System: Windows® 11, Windows® 10 64-bit

      Form Factor: ATX Form Factor, 12 inch x 9.6 inch (30.5 cm x 24.4 cm)

      Thông số kỹ thuật

      HỆ THỐNG SHOWROOM TIN HỌC NGÔI SAO

      1 ★ Showroom Tân Bình
      2 ★ Showroom Thủ Đức
      3 ★ Showroom Bình Thạnh
      4 ★ Shop THNS+ Quang Trung
      5 ★ Showroom Đắk Lắk
      CHÍNH SÁCH GIAO HÀNG
      CHÍNH SÁCH GIAO HÀNG

      Nhận hàng và thanh toán tại nhà

      ĐỔI TRẢ DỄ DÀNG
      ĐỔI TRẢ DỄ DÀNG

      1 đổi 1 trong 7 ngày

      GIÁ LUÔN LUÔN RẺ NHẤT
      GIÁ LUÔN LUÔN RẺ NHẤT

      Giá cả hợp lý, nhiều ưu đãi tốt

      HỖ TRỢ NHIỆT TÌNH
      HỖ TRỢ NHIỆT TÌNH

      Tư vấn, giải đáp mọi thắc mắc

      Danh sách so sánh

      So sánh

      Danh mục sản phẩm so sánh

      1900 0243
