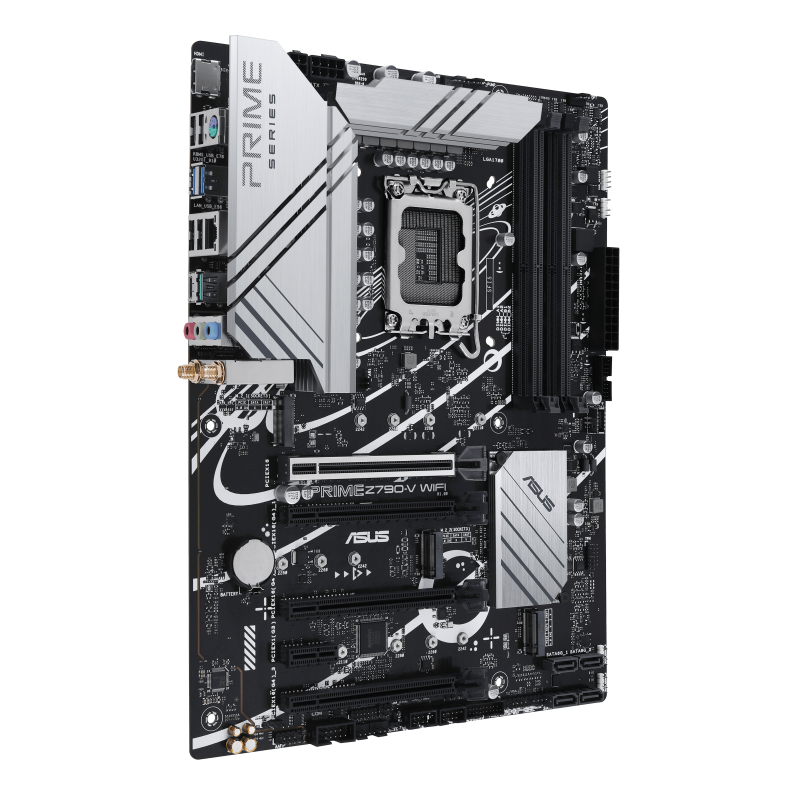

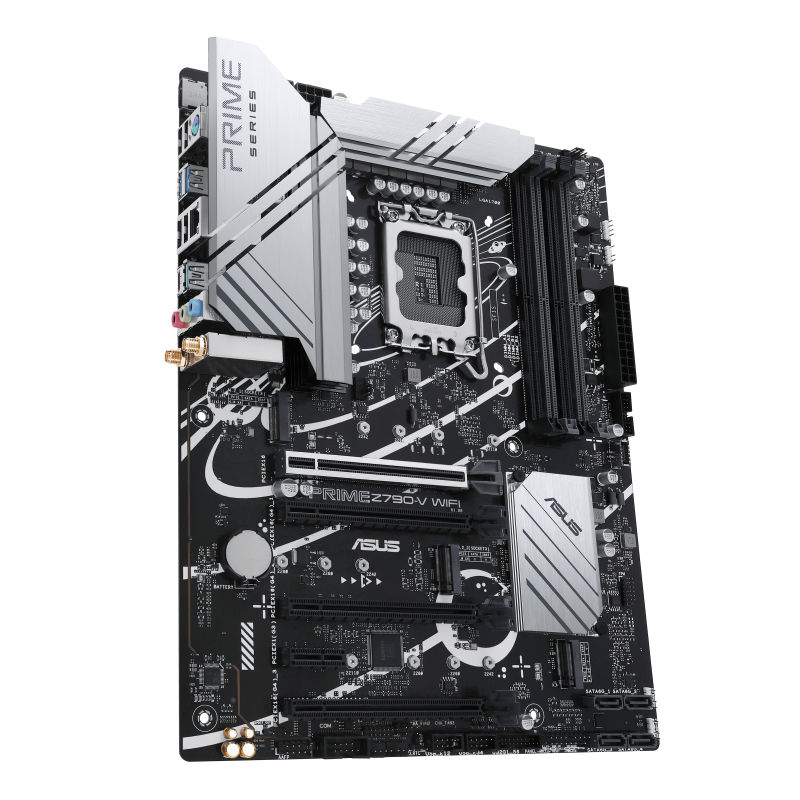

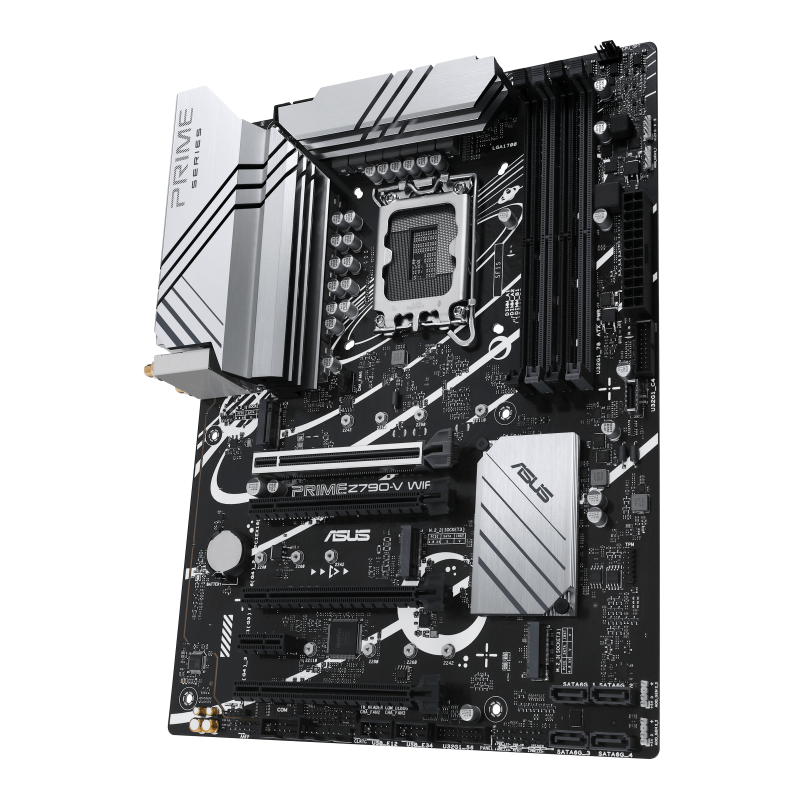

Mainboard ASUS Prime Z790 V WiFi CSM

Đóng
  • Bài viết đánh giá

💰 HỖ TRỢ TRẢ GÓP THẺ TÍN DỤNG mPOS & CÔNG TY TÀI CHÍNH (XEM TẠI ĐÂY)


⚙ THÔNG SỐ CƠ BẢN:

  • Sản phẩm: Mainboard
  • Hãng sản xuất: ASUS Prime Z790 V WiFi CSM
  • Bảo hành: 36 tháng

CPU Support:

  • Intel Socket LGA1700 for 13th Gen Intel Core, 12th Gen Intel Core, Pentium Gold, and Celeron processors.
  • Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 (availability depends on the CPU).

Chipset:

  • Intel Z790 Chipset

Memory:

  • 4 DIMM slots, supporting up to 192GB of DDR5 memory at various speeds (7200 (OC)/7000 (OC)/6800 (OC)/6600 (OC)/6400 (OC)/6200 (OC)/6000 (OC)/5800 (OC)/5600/5400/5200/5000/4800).
  • Dual-channel memory architecture.
  • Supports Intel Extreme Memory Profile (XMP).
  • OptiMem II technology.

Graphics:

  • 1 x HDMI port (supports 4K@60Hz as specified in HDMI 2.1).
  • Graphics specifications may vary between CPU types.

Expansion Slots:

  • Intel 13th & 12th Gen Processors:
    • 1 x PCIe 5.0 x16 slot.
  • Intel Z790 Chipset:
    • 3 x PCIe 4.0 x16 slots (support x4 mode).
    • 1 x PCIe 3.0 x1 slot.
  • PCIe bifurcation table available on the support site.

Storage:

  • Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports.
  • Intel 13th & 12th Gen Processors:
    • M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode).
  • Intel Z790 Chipset:
    • M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode).
    • M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes).
  • Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.

Ethernet:

  • 1 x Realtek 1Gb Ethernet.

Wireless & Bluetooth:

  • Wi-Fi 5 (802.11 a/b/g/n/ac).
  • Supports 2.4/5GHz frequency band.
  • Bluetooth v5.0 (Bluetooth version may vary).

USB:

  • Rear USB (Total 8 ports):
    • 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C).
    • 1 x USB 3.2 Gen 2 port (1 x Type-A).
    • 2 x USB 3.2 Gen 1 ports (2 x Type-A).
    • 4 x USB 2.0 ports (4 x Type-A).
  • Front USB (Total 9 ports):
    • 1 x USB 3.2 Gen 1 connector (supports USB Type-C).
    • 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports.
    • 2 x USB 2.0 headers support 4 additional USB 2.0 ports.

Audio:

  • Realtek 7.1 Surround Sound High Definition Audio CODEC.
  • Supports up to 24-Bit/192 kHz playback.
  • Audio Shielding, premium audio capacitors, dedicated audio PCB layers.

Back Panel I/O Ports:

  • 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C).
  • 1 x USB 3.2 Gen 2 port (1 x Type-A).
  • 2 x USB 3.2 Gen 1 ports (2 x Type-A).
  • 4 x USB 2.0 ports (4 x Type-A).
  • 1 x HDMI port.
  • 1 x Wi-Fi Module.
  • 1 x Realtek 1Gb Ethernet port.
  • 3 x audio jacks.
  • 1 x PS/2 Keyboard/Mouse combo port.

Internal I/O Connectors:

  • Various connectors for fans, power, storage, USB, and more.
  • 3 x Addressable Gen 2 headers, 1 x Aura RGB header, 1 x Clear CMOS header, 1 x COM Port header, 1 x Front Panel Audio header (AAFP), 1 x S/PDIF Out header, 1 x SPI TPM header, 1 x 20-5pin System Panel header, 1 x Thunderbolt (USB4) Header.

Special Features:

  • ASUS 5X PROTECTION III (DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot Core+, Stainless-Steel Back I/O).
  • ASUS Q-Design (Q-DIMM, Q-Slot, Q-LED Core).
  • ASUS Thermal Solution (VRM heatsink design).
  • ProCool.
  • Aura Sync (Aura RGB header and Addressable Gen 2 headers).

Software Features:

  • ASUS Exclusive Software including Armoury Crate, Aura Sync, Fan Xpert 4 (with AI Cooling II), Power Saving, Two-Way AI Noise Cancellation, AI Suite 3 (TurboV EVO, PC Cleaner, DIGI+ VRM).
  • ASUS CPU-Z.
  • MyASUS.
  • Norton 360 Deluxe (60 Days Free Trial).
  • WinRAR.

BIOS:

  • 192 (128+64) Mb Flash ROM, UEFI AMI BIOS.

Manageability:

  • Wake-On-LAN (WOL) by PME, PXE support.

Accessories:

  • Includes SATA cables, ASUS Wi-Fi moving antennas, I/O Shield, Screw packages for M.2 SSD, and user guide.

Operating System Support:

  • Windows 11 and Windows 10 64-bit.

Form Factor:

  • ATX Form Factor, measuring 12 inches x 9.2 inches (30.5 cm x 23.4 cm).

7,522,000₫

Mã sản phẩm: M.AS.Z790.V.CSM.WF.D5

      💰 HỖ TRỢ TRẢ GÓP THẺ TÍN DỤNG mPOS & CÔNG TY TÀI CHÍNH (XEM TẠI ĐÂY)


      ⚙ THÔNG SỐ CƠ BẢN:

      • Sản phẩm: Mainboard
      • Hãng sản xuất: ASUS Prime Z790 V WiFi CSM
      • Bảo hành: 36 tháng
      Xem thêm cấu hình chi tiết
      SẮP VỀ HÀNG (Vui lòng liên hệ trực tiếp)

      Gọi đặt mua 1900 0243 (8:30 - 21:00)

      MÔ TẢ SẢN PHẨM

      CPU Support:

      • Intel Socket LGA1700 for 13th Gen Intel Core, 12th Gen Intel Core, Pentium Gold, and Celeron processors.
      • Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 (availability depends on the CPU).

      Chipset:

      • Intel Z790 Chipset

      Memory:

      • 4 DIMM slots, supporting up to 192GB of DDR5 memory at various speeds (7200 (OC)/7000 (OC)/6800 (OC)/6600 (OC)/6400 (OC)/6200 (OC)/6000 (OC)/5800 (OC)/5600/5400/5200/5000/4800).
      • Dual-channel memory architecture.
      • Supports Intel Extreme Memory Profile (XMP).
      • OptiMem II technology.

      Graphics:

      • 1 x HDMI port (supports 4K@60Hz as specified in HDMI 2.1).
      • Graphics specifications may vary between CPU types.

      Expansion Slots:

      • Intel 13th & 12th Gen Processors:
        • 1 x PCIe 5.0 x16 slot.
      • Intel Z790 Chipset:
        • 3 x PCIe 4.0 x16 slots (support x4 mode).
        • 1 x PCIe 3.0 x1 slot.
      • PCIe bifurcation table available on the support site.

      Storage:

      • Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports.
      • Intel 13th & 12th Gen Processors:
        • M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode).
      • Intel Z790 Chipset:
        • M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode).
        • M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes).
      • Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.

      Ethernet:

      • 1 x Realtek 1Gb Ethernet.

      Wireless & Bluetooth:

      • Wi-Fi 5 (802.11 a/b/g/n/ac).
      • Supports 2.4/5GHz frequency band.
      • Bluetooth v5.0 (Bluetooth version may vary).

      USB:

      • Rear USB (Total 8 ports):
        • 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C).
        • 1 x USB 3.2 Gen 2 port (1 x Type-A).
        • 2 x USB 3.2 Gen 1 ports (2 x Type-A).
        • 4 x USB 2.0 ports (4 x Type-A).
      • Front USB (Total 9 ports):
        • 1 x USB 3.2 Gen 1 connector (supports USB Type-C).
        • 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports.
        • 2 x USB 2.0 headers support 4 additional USB 2.0 ports.

      Audio:

      • Realtek 7.1 Surround Sound High Definition Audio CODEC.
      • Supports up to 24-Bit/192 kHz playback.
      • Audio Shielding, premium audio capacitors, dedicated audio PCB layers.

      Back Panel I/O Ports:

      • 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C).
      • 1 x USB 3.2 Gen 2 port (1 x Type-A).
      • 2 x USB 3.2 Gen 1 ports (2 x Type-A).
      • 4 x USB 2.0 ports (4 x Type-A).
      • 1 x HDMI port.
      • 1 x Wi-Fi Module.
      • 1 x Realtek 1Gb Ethernet port.
      • 3 x audio jacks.
      • 1 x PS/2 Keyboard/Mouse combo port.

      Internal I/O Connectors:

      • Various connectors for fans, power, storage, USB, and more.
      • 3 x Addressable Gen 2 headers, 1 x Aura RGB header, 1 x Clear CMOS header, 1 x COM Port header, 1 x Front Panel Audio header (AAFP), 1 x S/PDIF Out header, 1 x SPI TPM header, 1 x 20-5pin System Panel header, 1 x Thunderbolt (USB4) Header.

      Special Features:

      • ASUS 5X PROTECTION III (DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot Core+, Stainless-Steel Back I/O).
      • ASUS Q-Design (Q-DIMM, Q-Slot, Q-LED Core).
      • ASUS Thermal Solution (VRM heatsink design).
      • ProCool.
      • Aura Sync (Aura RGB header and Addressable Gen 2 headers).

      Software Features:

      • ASUS Exclusive Software including Armoury Crate, Aura Sync, Fan Xpert 4 (with AI Cooling II), Power Saving, Two-Way AI Noise Cancellation, AI Suite 3 (TurboV EVO, PC Cleaner, DIGI+ VRM).
      • ASUS CPU-Z.
      • MyASUS.
      • Norton 360 Deluxe (60 Days Free Trial).
      • WinRAR.

      BIOS:

      • 192 (128+64) Mb Flash ROM, UEFI AMI BIOS.

      Manageability:

      • Wake-On-LAN (WOL) by PME, PXE support.

      Accessories:

      • Includes SATA cables, ASUS Wi-Fi moving antennas, I/O Shield, Screw packages for M.2 SSD, and user guide.

      Operating System Support:

      • Windows 11 and Windows 10 64-bit.

      Form Factor:

      • ATX Form Factor, measuring 12 inches x 9.2 inches (30.5 cm x 23.4 cm).
