Mainboard ASUS H610M K

Đóng
  • Bài viết đánh giá

⚙ THÔNG SỐ CƠ BẢN:

  • Intel® LGA 1700 Socket: Ready for 13th and 12th Gen Intel® processors
  • Ultrafast Connectivity: PCIe 4.0, 32Gbps M.2 slot, Realtek 1 Gb Ethernet and USB 3.2 Gen 1
  • Comprehensive Cooling: PCH heatsink and Fan Xpert 2+
  • 5X Protection III: Multiple hardware safeguards for all-round protection

CPU Support:

  • Intel Socket LGA1700 for 13th Gen Intel Core, 12th Gen Intel Core, Pentium Gold, and Celeron processors.
  • Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 (availability depends on the CPU).

Chipset:

  • Intel H610 Chipset

Memory:

  • 2 DIMM slots, support for up to 96GB of DDR5 memory at various speeds (5600/5400/5200/5000/4800).
  • Dual-channel memory architecture.
  • Supports Intel Extreme Memory Profile (XMP).

Graphics:

  • 1 x VGA port
  • 1 x HDMI port (supports 4K@60Hz as specified in HDMI 2.1).
  • Graphics specifications may vary depending on the CPU type.

Expansion Slots:

  • 1 x PCIe 4.0 x16 slot for 13th and 12th Gen Intel Processors.
  • 1 x PCIe 3.0 x1 slot.

Storage:

  • 1 x M.2 slot (Key M) and 4 x SATA 6Gb/s ports.

Ethernet:

  • 1 x Realtek 1Gb Ethernet.

USB:

  • Rear USB: 2 x USB 3.2 Gen 1 (5G) ports (Type-A), 4 x USB 2.0 ports (Type-A).
  • Front USB: 1 x USB 3.2 Gen 1 header (supports 2 additional USB 3.2 Gen 1 ports), 1 x USB 2.0 header (supports 2 additional USB 2.0 ports).

Audio:

  • Realtek 7.1 Surround Sound High Definition Audio CODEC.
  • Supports up to 24-Bit/192 kHz playback.
  • Audio Shielding, premium audio capacitors, dedicated audio PCB layers.

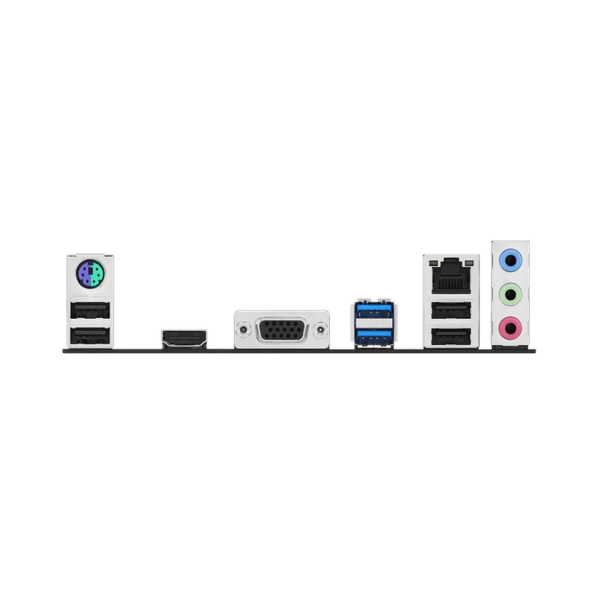

Back Panel I/O Ports:

  • 2 x USB 3.2 Gen 1 (5G) ports (Type-A), 4 x USB 2.0 ports (Type-A), 1 x VGA port, 1 x HDMI port, 1 x Realtek 1Gb Ethernet port, 3 x audio jacks, 1 x PS/2 Keyboard/Mouse combo port.

Internal I/O Connectors:

  • Various connectors for fans, power, storage, and USB.
  • RGB header, Clear CMOS header, front panel audio header, COM Port header, S/PDIF Out header, Speaker header, SPI TPM header, System Panel header.

Special Features:

  • ASUS 5X PROTECTION III (DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot Core, Stainless-Steel Back I/O).
  • ASUS Q-Design (Q-DIMM, Q-LED Core, Q-Slot).
  • ASUS Thermal Solution (Aluminum heatsink design).
  • ASUS Lighting Control (RGB header).

Software Features:

  • ASUS Exclusive Software including Armoury Crate, AI Suite 3, ASUS CPU-Z, and more.
  • UEFI BIOS with EZ DIY features like CrashFree BIOS 3 and EZ Flash 3.

BIOS:

  • 128 Mb Flash ROM, UEFI AMI BIOS.

Manageability:

  • Wake-On-LAN (WOL) by PME, PXE support.

Accessories:

  • Includes SATA cables, I/O Shield, M.2 Anchor, and user guide.

Operating System Support:

  • Windows 11 and Windows 10 64-bit.

Form Factor:

  • Micro-ATX (microATX) Form Factor, measuring 9.2 inches x 8.0 inches (23.4 cm x 20.3 cm).

1,822,000₫

Mã sản phẩm: M.AS.H610M.K.D5

      ⚙ THÔNG SỐ CƠ BẢN:

      • Intel® LGA 1700 Socket: Ready for 13th and 12th Gen Intel® processors
      • Ultrafast Connectivity: PCIe 4.0, 32Gbps M.2 slot, Realtek 1 Gb Ethernet and USB 3.2 Gen 1
      • Comprehensive Cooling: PCH heatsink and Fan Xpert 2+
      • 5X Protection III: Multiple hardware safeguards for all-round protection
      Xem thêm cấu hình chi tiết
      SẮP VỀ HÀNG (Vui lòng liên hệ trực tiếp)

      Gọi đặt mua 1900 0243 (8:30 - 21:00)

      MÔ TẢ SẢN PHẨM

      CPU Support:

      • Intel Socket LGA1700 for 13th Gen Intel Core, 12th Gen Intel Core, Pentium Gold, and Celeron processors.
      • Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 (availability depends on the CPU).

      Chipset:

      • Intel H610 Chipset

      Memory:

      • 2 DIMM slots, support for up to 96GB of DDR5 memory at various speeds (5600/5400/5200/5000/4800).
      • Dual-channel memory architecture.
      • Supports Intel Extreme Memory Profile (XMP).

      Graphics:

      • 1 x VGA port
      • 1 x HDMI port (supports 4K@60Hz as specified in HDMI 2.1).
      • Graphics specifications may vary depending on the CPU type.

      Expansion Slots:

      • 1 x PCIe 4.0 x16 slot for 13th and 12th Gen Intel Processors.
      • 1 x PCIe 3.0 x1 slot.

      Storage:

      • 1 x M.2 slot (Key M) and 4 x SATA 6Gb/s ports.

      Ethernet:

      • 1 x Realtek 1Gb Ethernet.

      USB:

      • Rear USB: 2 x USB 3.2 Gen 1 (5G) ports (Type-A), 4 x USB 2.0 ports (Type-A).
      • Front USB: 1 x USB 3.2 Gen 1 header (supports 2 additional USB 3.2 Gen 1 ports), 1 x USB 2.0 header (supports 2 additional USB 2.0 ports).

      Audio:

      • Realtek 7.1 Surround Sound High Definition Audio CODEC.
      • Supports up to 24-Bit/192 kHz playback.
      • Audio Shielding, premium audio capacitors, dedicated audio PCB layers.

      Back Panel I/O Ports:

      • 2 x USB 3.2 Gen 1 (5G) ports (Type-A), 4 x USB 2.0 ports (Type-A), 1 x VGA port, 1 x HDMI port, 1 x Realtek 1Gb Ethernet port, 3 x audio jacks, 1 x PS/2 Keyboard/Mouse combo port.

      Internal I/O Connectors:

      • Various connectors for fans, power, storage, and USB.
      • RGB header, Clear CMOS header, front panel audio header, COM Port header, S/PDIF Out header, Speaker header, SPI TPM header, System Panel header.

      Special Features:

      • ASUS 5X PROTECTION III (DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot Core, Stainless-Steel Back I/O).
      • ASUS Q-Design (Q-DIMM, Q-LED Core, Q-Slot).
      • ASUS Thermal Solution (Aluminum heatsink design).
      • ASUS Lighting Control (RGB header).

      Software Features:

      • ASUS Exclusive Software including Armoury Crate, AI Suite 3, ASUS CPU-Z, and more.
      • UEFI BIOS with EZ DIY features like CrashFree BIOS 3 and EZ Flash 3.

      BIOS:

      • 128 Mb Flash ROM, UEFI AMI BIOS.

      Manageability:

      • Wake-On-LAN (WOL) by PME, PXE support.

      Accessories:

      • Includes SATA cables, I/O Shield, M.2 Anchor, and user guide.

      Operating System Support:

      • Windows 11 and Windows 10 64-bit.

      Form Factor:

      • Micro-ATX (microATX) Form Factor, measuring 9.2 inches x 8.0 inches (23.4 cm x 20.3 cm).
