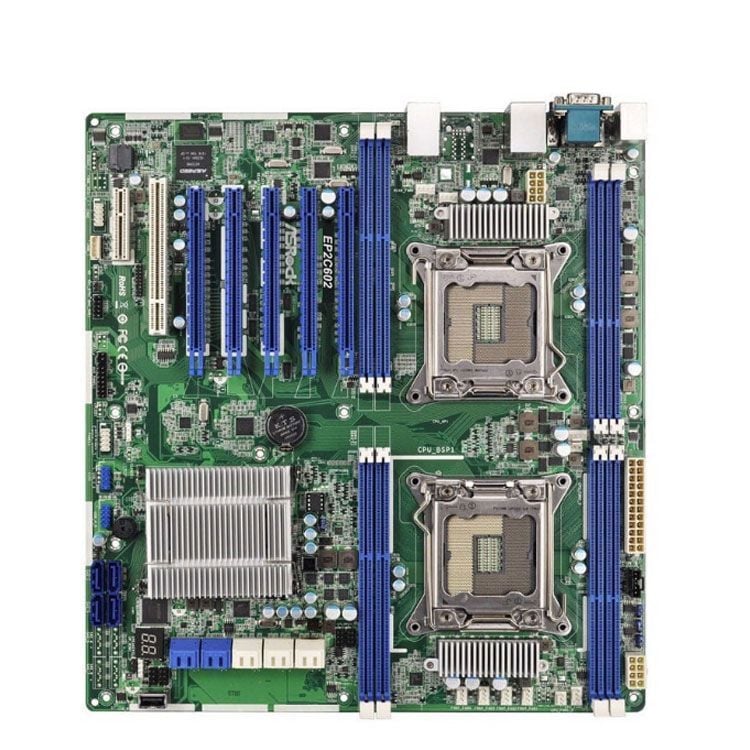

Mainboard Asrock EP2C602

Xem tất cả điểm nổi bật (1/ )
Đóng

THÔNG SỐ KỸ THUẬT:

Thông tin kích thước
Form Factor - SSI EEB
Kích thước - 12'' x 13'' (30.5 cm x 33 cm)
 Thông tin hệ thống
CPU - Intel® Xeon® processor E5-1600/2600/4600 & v2 series - Supports Hyper-Threading Technology
Intel Xeon E5-1600 hỗ trợ trên 1 socket
Socket - Dual Socket R (LGA2011)
Power Design - 6 +1 Power Phase Design
Chipset - Intel® C602
 Bộ nhớ hỗ trợ
Dung lượng hỗ trợ - 8x 240-pin DDR3 DIMM slots - Support up to 256GB DDR3 R/LR DIMM ; 64GB ECC/non-ECC unbuffered UDIMM
Loại Ram - Quad Channel DDR3 - Hỗ trợ DDR3 1866/1600/1333/1066 R/LR ECC and UDIMM
Voltage - 1.5V, 1.35V
 Khe cắm mở rộng
PCIe 3.0 x 16 - 5 slots - 3 x PCIE3/PCIE6/PCIE7 : x16 mode - 1 x PCIE4: x8/x0 mode - 1 x PCIE5: x16/x8 mode
PCIe 3.0 x 4 - 1 slot
PCI - 1 slot
 Công lưu trữ
SATA Controller - Intel® C602 : 2 x SATA3 6.0 Gb/s, 8 x SATA2 3.0 Gb/s, support RAID 0, 1, 5, 10 and Intel® Rapid Storage 3.0, NCQ, AHCI and "Hot Plug" functions
Additional Storage Controller - Marvell SE9230: 4 x SATA3 6.0 Gb/s, hỗ trợ RAID 0, 1, 10, NCQ, AHCI and "Hot Plug" functions
 Ethernet
Chuẩn LAN - Gigabit LAN 10/100/1000 Mb/s
LAN Controller - 2 x Intel® 82574L - Supports Wake-On-LAN - Supports Energy Efficient Ethernet 802.3az - Supports Dual LAN with Teaming function* - Supports PXE
* Intel® 82574L discontinues official driver support for Microsoft® Windows® 2012 R2 (x64)
 Management
BMC Controller - ASPEED AST2300
IPMI Dedicated GLAN - 1 x Realtek RTL8211E for dedicated management LAN
Features - Watch Dog - NMI
 Đồ họa
Controller - ASPEED AST2300
VRAM - DDR3 16MB
Cổng ra - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
 Cổng I/O phía sau
PS/2 KB/Mouse - 2
VGA Port - 1 x D-Sub
USB 2.0 Port - 2
Lan Port - 2 x RJ45 Gigabit Ethernet LAN ports - 1 x RJ45 Dedicated IPMI LAN port - LAN Ports with LED (ACT/LINK LED and SPEED LED)
Serial Port - 1 (COM1)
 Cổng kết nối bên trong
COM Port Header - 1 (COM2)
Auxiliary Panel Header - 1 (includes chassis intrusion, location button & LED, front LAN LED)
TPM Header - 1
Thermal Sensor Header - 1
IPMB Header - 1
Buzzer - 1
Fan Header - 8 (8 x 4-pin or 6 x 4-pin, 2 x 3-pin)
*CPU fan headers have 3-pin and 4-pin ones. Two types couldn't be used at the same time.
ATX Power - 1 (24-pin) + 2 (8-pin)
USB 2.0 Header - 2 (each support 2 USB 2.0)
Type A USB 2.0 Port - 1
Front Panel - 1
Speaker - 1
Dr. Debug with LED - 1
 BIOS hệ thống
Kiểu BIOS - 64Mb AMI UEFI Legal BIOS
Tính năng BIOS - Plug and Play (PnP) - ACPI 1.1 Compliance Wake Up Events - SMBIOS 2.3.1 Support - DRAM Voltage Multi-adjustment - ASRock Instant Flash
 Quản lý phần cứng
Temperature - CPU Temperature Sensing - System Temperature Sensing
Fan - CPU/Rear/Front Fan Tachometer - CPU Quiet Fan (Allow CPU Fan Speed Auto-Adjust by CPU Temperature) - CPU/Rear/Front Fan Multi-Speed Control
Voltage - Voltage Monitoring: CPU1/2, DRAM1/2, VTT1/2, VCCSA1/2, 3V/5V/ 12V, +1.05V_PCH, +BAT, 3VSB, 5VSB
 Hệ điều hành hỗ trợ
Hệ điều hành Microsoft® Windows® - Server 2008 R2 (x64) - Server 2012 (x64) - Server 2012 R2 (x64) Linux - RedHat Enterprise Linux Server 5.5/6.4 (x32 and x64) - CentOS 5.5 / 6.4 (x32 and x64) - SUSE Enterprise Linux Server 11 SP1 (x32 and x64) - FreeBSD 9.1 (x32/x64) - Fedora core 18 (x64) - Ubuntu 12.04/12.10 (x64) Virtual - VMWare® ESXi 5.1 (Marvell SE9230 và Marvell SE9172 không có driver hỗ trợ VMWare)
 Phụ kiện đi kèm

5,450,000₫

Mã sản phẩm: M.SV.AR.EP2C602.CU

      THÔNG SỐ KỸ THUẬT:

      Thông tin kích thước
      Form Factor - SSI EEB
      Kích thước - 12'' x 13'' (30.5 cm x 33 cm)
       Thông tin hệ thống
      CPU - Intel® Xeon® processor E5-1600/2600/4600 & v2 series - Supports Hyper-Threading Technology
      Intel Xeon E5-1600 hỗ trợ trên 1 socket
      Socket - Dual Socket R (LGA2011)
      Power Design - 6 +1 Power Phase Design
      Chipset - Intel® C602
       Bộ nhớ hỗ trợ
      Dung lượng hỗ trợ - 8x 240-pin DDR3 DIMM slots - Support up to 256GB DDR3 R/LR DIMM ; 64GB ECC/non-ECC unbuffered UDIMM
      Loại Ram - Quad Channel DDR3 - Hỗ trợ DDR3 1866/1600/1333/1066 R/LR ECC and UDIMM
      Voltage - 1.5V, 1.35V
       Khe cắm mở rộng
      PCIe 3.0 x 16 - 5 slots - 3 x PCIE3/PCIE6/PCIE7 : x16 mode - 1 x PCIE4: x8/x0 mode - 1 x PCIE5: x16/x8 mode
      PCIe 3.0 x 4 - 1 slot
      PCI - 1 slot
       Công lưu trữ
      SATA Controller - Intel® C602 : 2 x SATA3 6.0 Gb/s, 8 x SATA2 3.0 Gb/s, support RAID 0, 1, 5, 10 and Intel® Rapid Storage 3.0, NCQ, AHCI and "Hot Plug" functions
      Additional Storage Controller - Marvell SE9230: 4 x SATA3 6.0 Gb/s, hỗ trợ RAID 0, 1, 10, NCQ, AHCI and "Hot Plug" functions
       Ethernet
      Chuẩn LAN - Gigabit LAN 10/100/1000 Mb/s
      LAN Controller - 2 x Intel® 82574L - Supports Wake-On-LAN - Supports Energy Efficient Ethernet 802.3az - Supports Dual LAN with Teaming function* - Supports PXE
      * Intel® 82574L discontinues official driver support for Microsoft® Windows® 2012 R2 (x64)
       Management
      BMC Controller - ASPEED AST2300
      IPMI Dedicated GLAN - 1 x Realtek RTL8211E for dedicated management LAN
      Features - Watch Dog - NMI
       Đồ họa
      Controller - ASPEED AST2300
      VRAM - DDR3 16MB
      Cổng ra - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
       Cổng I/O phía sau
      PS/2 KB/Mouse - 2
      VGA Port - 1 x D-Sub
      USB 2.0 Port - 2
      Lan Port - 2 x RJ45 Gigabit Ethernet LAN ports - 1 x RJ45 Dedicated IPMI LAN port - LAN Ports with LED (ACT/LINK LED and SPEED LED)
      Serial Port - 1 (COM1)
       Cổng kết nối bên trong
      COM Port Header - 1 (COM2)
      Auxiliary Panel Header - 1 (includes chassis intrusion, location button & LED, front LAN LED)
      TPM Header - 1
      Thermal Sensor Header - 1
      IPMB Header - 1
      Buzzer - 1
      Fan Header - 8 (8 x 4-pin or 6 x 4-pin, 2 x 3-pin)
      *CPU fan headers have 3-pin and 4-pin ones. Two types couldn't be used at the same time.
      ATX Power - 1 (24-pin) + 2 (8-pin)
      USB 2.0 Header - 2 (each support 2 USB 2.0)
      Type A USB 2.0 Port - 1
      Front Panel - 1
      Speaker - 1
      Dr. Debug with LED - 1
       BIOS hệ thống
      Kiểu BIOS - 64Mb AMI UEFI Legal BIOS
      Tính năng BIOS - Plug and Play (PnP) - ACPI 1.1 Compliance Wake Up Events - SMBIOS 2.3.1 Support - DRAM Voltage Multi-adjustment - ASRock Instant Flash
       Quản lý phần cứng
      Temperature - CPU Temperature Sensing - System Temperature Sensing
      Fan - CPU/Rear/Front Fan Tachometer - CPU Quiet Fan (Allow CPU Fan Speed Auto-Adjust by CPU Temperature) - CPU/Rear/Front Fan Multi-Speed Control
      Voltage - Voltage Monitoring: CPU1/2, DRAM1/2, VTT1/2, VCCSA1/2, 3V/5V/ 12V, +1.05V_PCH, +BAT, 3VSB, 5VSB
       Hệ điều hành hỗ trợ
      Hệ điều hành Microsoft® Windows® - Server 2008 R2 (x64) - Server 2012 (x64) - Server 2012 R2 (x64) Linux - RedHat Enterprise Linux Server 5.5/6.4 (x32 and x64) - CentOS 5.5 / 6.4 (x32 and x64) - SUSE Enterprise Linux Server 11 SP1 (x32 and x64) - FreeBSD 9.1 (x32/x64) - Fedora core 18 (x64) - Ubuntu 12.04/12.10 (x64) Virtual - VMWare® ESXi 5.1 (Marvell SE9230 và Marvell SE9172 không có driver hỗ trợ VMWare)
       Phụ kiện đi kèm
