Mainboard ASRock B650M Pro RS Wifi

Đóng
  • Bài viết đánh giá

⚙ THÔNG SỐ CƠ BẢN:

  • Supports AMD Socket AM5 Ryzen™ 7000 Series Processors
  • 8+2+1 Power Phase, Dr.MOS
  • Supports DDR5 7200+ MHz (OC)
  • 1 PCIe 4.0 x16, 1 PCIe 3.0 x16
  • Graphics Output Options: HDMI, DisplayPort
  • Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
  • 4 SATA3, 1 Blazing M.2 (PCIe Gen5 x4)
  • 1 Hyper M.2 (PCIe Gen4 x4)
  • 1 M.2 (PCIe Gen4 x2)
  • 1 USB 3.2 Gen2 Type A+C (Rear)
  • 1 USB 3.2 Gen1 Type-C (Front)
  • 6 USB 3.2 Gen1 Type-A (2 Rear, 4 Front)
  • Dragon 2.5G LAN
  • 802.11ax Wi-Fi 6E + Bluetooth

BẢNG THÔNG SỐ CHI TIẾT:

    Superb Productivity    - PCIe Gen5 (M.2)
        - Dual Channel DDR5

    Rock-Solid Durability    - 8+2+1 Power Phase, 50A Dr.MOS
        - Pre-Installed I/O Shield

    Ultrafast Connectivity    - 2.5G LAN, 802.11ax Wi-Fi 6E Module

    EZ Update    - BIOS Flashback Button
        - ASRock Auto Driver Installer

    EZ Troubleshooter    - ASRock Post Status Checker

    CPU Support    - Supports AMD Socket AM5 Ryzen™ 7000 Series
        Processors

    Chipset    - AMD B650

    Memory    - Dual Channel DDR5 Memory Technology
        - 4 x DDR5 DIMM Slots
        - Supports DDR5 ECC/non-ECC, un-buffered memory
        up to 7200+(OC)*
        - Max. capacity of system memory: 192GB
        - Supports XMP and EXPO memory modules

    BIOS    - 256Mb AMI UEFI Legal BIOS with GUI support

    Graphics    - Integrated AMD RDNA™ 2 graphics
        - HDMI 2.1 and DisplayPort 1.4 support

    Audio    - 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
        - Nahimic Audio

    LAN    - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
        - Dragon RTL8125BG
        - Supports Dragon 2.5G LAN Software
        - Smart Auto Adjust Bandwidth Control
        - Visual User-Friendly UI
        - Optimized Default Setting for Game, Browser,
        and Streaming Modes
        - User Customized Priority Control

    Wireless LAN    - 802.11ax Wi-Fi 6E Module
        - Supports Dual-Band 2x2 with extended 6GHz band
        support
        - Bluetooth 5.2 + High-speed class II support
        - Supports MU-MIMO

    Expansion Slots    - 1 x PCIe 4.0 x16 Slot (PCIE1) supports x16 mode
        - 1 x PCIe 3.0 x16 Slot (PCIE2) supports x4 mode
        - 1 x M.2 Socket (Key E) for WiFi/BT PCIe module
        - Supports AMD CrossFire™
        - 15μ Gold Contact in VGA PCIe Slot (PCIE1)

    Storage    - Blazing M.2 Socket (M2_1) supports PCIe Gen5x4
        (128 Gb/s) mode*
        - Hyper M.2 Socket (M2_2) supports PCIe Gen4x4
        (64 Gb/s) mode*
        - M.2 Socket (M2_3) supports PCIe Gen4x2 (32 Gb/s)
        - 4 x SATA3 6.0 Gb/s Connectors
        - Supports RAID 0, RAID 1, RAID 10 for SATA and
        M.2 NVMe storage devices*

    USB Ports    - 1 x USB 3.2 Gen2 Type-C (Rear)
        - 1 x USB 3.2 Gen2 Type-A (Rear)
        - 1 x USB 3.2 Gen1 Type-C (Front)
        - 6 x USB 3.2 Gen1 Type-A (2 Rear, 4 Front)
        - 8 x USB 2.0 (4 Rear, 4 Front)

    Connectors    - SPI TPM Header
        - Power LED and Speaker Header
        - RGB LED Header*
        - Addressable LED Headers**
        - Various fan connectors with Smart Fan Speed
        Control***
        - ATX Power and 12V Power Connectors
        - Thunderbolt™ AIC Connector (5-pin)
        - USB Headers for 2.0 and 3.2 Gen1
        - Front Panel Type C USB 3.2 Gen1 Header

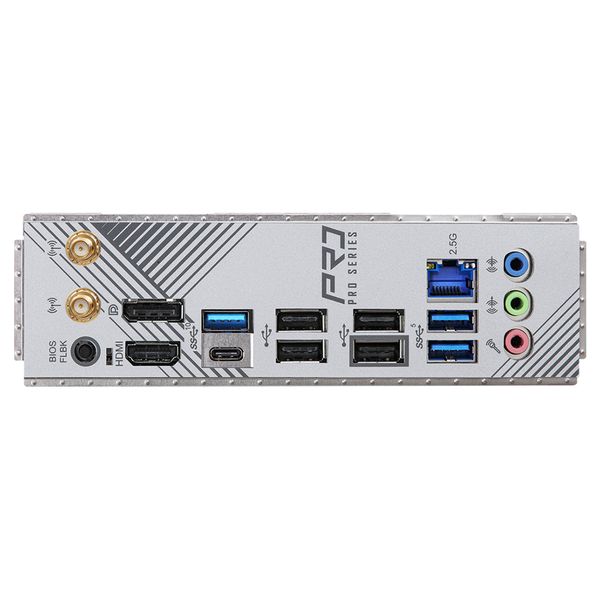

    Rear I/O Ports    - Antenna Ports (2x)
        - HDMI Port
        - DisplayPort 1.4
        - USB 3.2 Gen2 Type-A Port (10 Gb/s)
        - USB 3.2 Gen2 Type-C Port (10 Gb/s)
        - USB 3.2 Gen1 Ports (2x)
        - USB 2.0 Ports (4x)
        - RJ-45 LAN Port
        - BIOS Flashback Button
        - HD Audio Jacks: Line in/Front Speaker/Microphone
    Software and UEFI    - ASRock Motherboard Utility (A-Tuning)
        - ASRock Dragon 2.5G LAN Software
        - ASRock Polychrome SYNC*
        - ASRock Full HD UEFI
        - ASRock Auto Driver Installer
        - ASRock Instant Flash

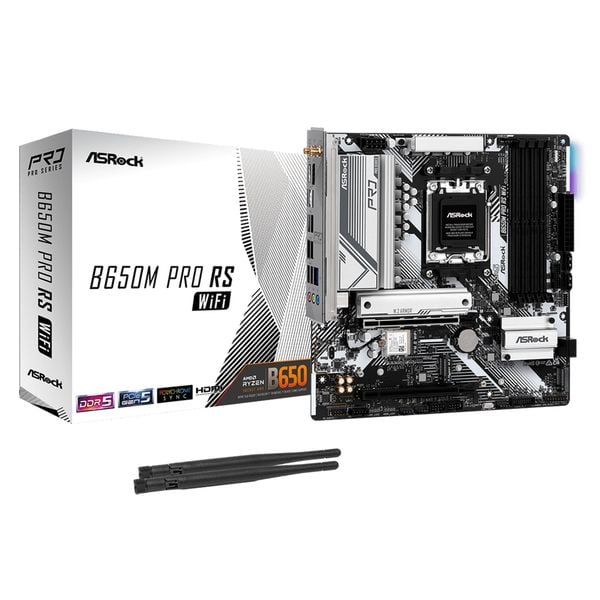

    Accessories    - User Manual
        - SATA Data Cables (2x)
        - ASRock WiFi Antennas (2.4/5/6 GHz) (2x)
        - Screws for M.2 Sockets (3x)
        - Standoff for M.2 Socket
    Form Factor    - Micro ATX (9.6-in x 9.6-in, 24.4 cm x 24.4 cm)
    Operating System    - Microsoft® Windows®

3,925,000₫

4,090,000₫

-4%

Mã sản phẩm: M.AR.B650M.PRO.RS.WIFI

      ⚙ THÔNG SỐ CƠ BẢN:

      • Supports AMD Socket AM5 Ryzen™ 7000 Series Processors
      • 8+2+1 Power Phase, Dr.MOS
      • Supports DDR5 7200+ MHz (OC)
      • 1 PCIe 4.0 x16, 1 PCIe 3.0 x16
      • Graphics Output Options: HDMI, DisplayPort
      • Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
      • 4 SATA3, 1 Blazing M.2 (PCIe Gen5 x4)
      • 1 Hyper M.2 (PCIe Gen4 x4)
      • 1 M.2 (PCIe Gen4 x2)
      • 1 USB 3.2 Gen2 Type A+C (Rear)
      • 1 USB 3.2 Gen1 Type-C (Front)
      • 6 USB 3.2 Gen1 Type-A (2 Rear, 4 Front)
      • Dragon 2.5G LAN
      • 802.11ax Wi-Fi 6E + Bluetooth
      Xem thêm cấu hình chi tiết

      Gọi đặt mua 1900 0243 (8:30 - 21:00)

      MÔ TẢ SẢN PHẨM

      BẢNG THÔNG SỐ CHI TIẾT:

          Superb Productivity    - PCIe Gen5 (M.2)
              - Dual Channel DDR5

          Rock-Solid Durability    - 8+2+1 Power Phase, 50A Dr.MOS
              - Pre-Installed I/O Shield

          Ultrafast Connectivity    - 2.5G LAN, 802.11ax Wi-Fi 6E Module

          EZ Update    - BIOS Flashback Button
              - ASRock Auto Driver Installer

          EZ Troubleshooter    - ASRock Post Status Checker

          CPU Support    - Supports AMD Socket AM5 Ryzen™ 7000 Series
              Processors

          Chipset    - AMD B650

          Memory    - Dual Channel DDR5 Memory Technology
              - 4 x DDR5 DIMM Slots
              - Supports DDR5 ECC/non-ECC, un-buffered memory
              up to 7200+(OC)*
              - Max. capacity of system memory: 192GB
              - Supports XMP and EXPO memory modules

          BIOS    - 256Mb AMI UEFI Legal BIOS with GUI support

          Graphics    - Integrated AMD RDNA™ 2 graphics
              - HDMI 2.1 and DisplayPort 1.4 support

          Audio    - 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
              - Nahimic Audio

          LAN    - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
              - Dragon RTL8125BG
              - Supports Dragon 2.5G LAN Software
              - Smart Auto Adjust Bandwidth Control
              - Visual User-Friendly UI
              - Optimized Default Setting for Game, Browser,
              and Streaming Modes
              - User Customized Priority Control

          Wireless LAN    - 802.11ax Wi-Fi 6E Module
              - Supports Dual-Band 2x2 with extended 6GHz band
              support
              - Bluetooth 5.2 + High-speed class II support
              - Supports MU-MIMO

          Expansion Slots    - 1 x PCIe 4.0 x16 Slot (PCIE1) supports x16 mode
              - 1 x PCIe 3.0 x16 Slot (PCIE2) supports x4 mode
              - 1 x M.2 Socket (Key E) for WiFi/BT PCIe module
              - Supports AMD CrossFire™
              - 15μ Gold Contact in VGA PCIe Slot (PCIE1)

          Storage    - Blazing M.2 Socket (M2_1) supports PCIe Gen5x4
              (128 Gb/s) mode*
              - Hyper M.2 Socket (M2_2) supports PCIe Gen4x4
              (64 Gb/s) mode*
              - M.2 Socket (M2_3) supports PCIe Gen4x2 (32 Gb/s)
              - 4 x SATA3 6.0 Gb/s Connectors
              - Supports RAID 0, RAID 1, RAID 10 for SATA and
              M.2 NVMe storage devices*

          USB Ports    - 1 x USB 3.2 Gen2 Type-C (Rear)
              - 1 x USB 3.2 Gen2 Type-A (Rear)
              - 1 x USB 3.2 Gen1 Type-C (Front)
              - 6 x USB 3.2 Gen1 Type-A (2 Rear, 4 Front)
              - 8 x USB 2.0 (4 Rear, 4 Front)

          Connectors    - SPI TPM Header
              - Power LED and Speaker Header
              - RGB LED Header*
              - Addressable LED Headers**
              - Various fan connectors with Smart Fan Speed
              Control***
              - ATX Power and 12V Power Connectors
              - Thunderbolt™ AIC Connector (5-pin)
              - USB Headers for 2.0 and 3.2 Gen1
              - Front Panel Type C USB 3.2 Gen1 Header

          Rear I/O Ports    - Antenna Ports (2x)
              - HDMI Port
              - DisplayPort 1.4
              - USB 3.2 Gen2 Type-A Port (10 Gb/s)
              - USB 3.2 Gen2 Type-C Port (10 Gb/s)
              - USB 3.2 Gen1 Ports (2x)
              - USB 2.0 Ports (4x)
              - RJ-45 LAN Port
              - BIOS Flashback Button
              - HD Audio Jacks: Line in/Front Speaker/Microphone
          Software and UEFI    - ASRock Motherboard Utility (A-Tuning)
              - ASRock Dragon 2.5G LAN Software
              - ASRock Polychrome SYNC*
              - ASRock Full HD UEFI
              - ASRock Auto Driver Installer
              - ASRock Instant Flash
          Accessories    - User Manual
              - SATA Data Cables (2x)
              - ASRock WiFi Antennas (2.4/5/6 GHz) (2x)
              - Screws for M.2 Sockets (3x)
              - Standoff for M.2 Socket
          Form Factor    - Micro ATX (9.6-in x 9.6-in, 24.4 cm x 24.4 cm)
          Operating System    - Microsoft® Windows®
