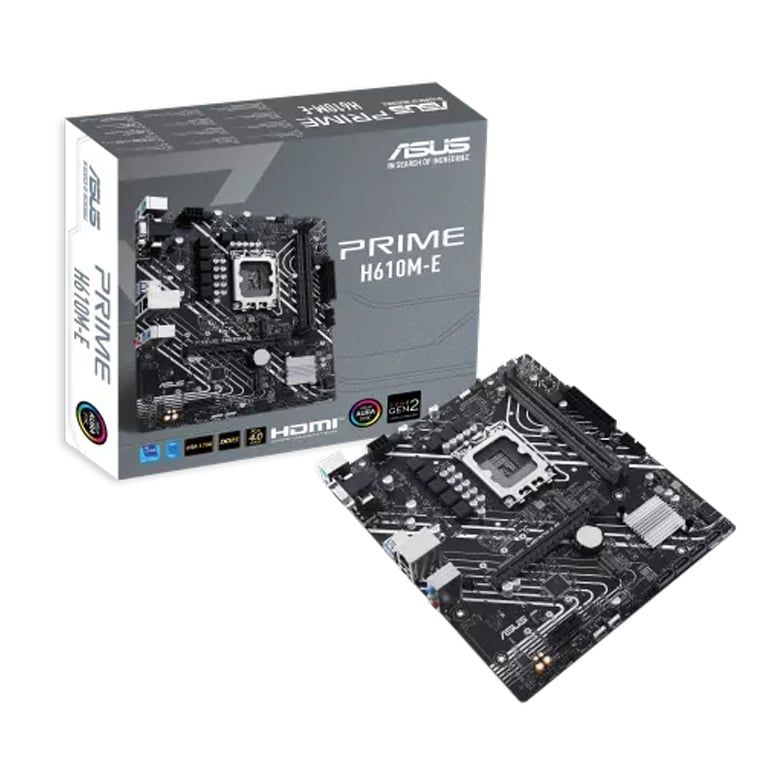

Mainboard ASUS Prime H610M E CSM

Đóng
  • Bài viết đánh giá

⚙ THÔNG SỐ CƠ BẢN:

  • Intel® LGA 1700 Socket: Ready for 13th and 12th Gen Intel® processors
  • Comprehensive Cooling: PCH heatsink and Fan Xpert 2+
  • Ultrafast Connectivity: 32Gbps M.2 slot, Realtek 1 Gb Ethernet and USB 3.2 Gen 1
  • Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
  • ASUS Control Center Express: Real-time IT monitoring and management software for enhanced data protection

CPU Support:

  • Intel Socket LGA1700 for 13th Gen Intel Core processors, 12th Gen Intel Core, Pentium Gold, and Celeron processors.
  • Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 (availability depends on the CPU).

Chipset:

  • Intel H610 Chipset

Memory:

  • 2 DIMM slots, support for up to 96GB of DDR5 memory at various speeds (5600/5400/5200/5000/4800).
  • Dual-channel memory architecture.
  • Supports Intel Extreme Memory Profile (XMP).

Graphics:

  • 1 x DisplayPort
  • 1 x VGA port
  • 1 x HDMI port (supports 4K@60Hz as specified in HDMI 2.1).
  • Graphics specifications may vary depending on the CPU type.

Expansion Slots:

  • 1 x PCIe 4.0 x16 slot for 13th and 12th Gen Intel Processors.
  • 1 x PCIe 3.0 x1 slot.

Storage:

  • 2 x M.2 slots (Key M) and 4 x SATA 6Gb/s ports.

Ethernet:

  • 1 x Realtek 1Gb Ethernet.

USB:

  • Rear USB: 2 x USB 3.2 Gen 1 (5G) ports (Type-A), 2 x USB 2.0 ports (Type-A).
  • Front USB: 1 x USB 3.2 Gen 1 header (supports 2 additional USB 3.2 Gen 1 ports), 2 x USB 2.0 headers (support 3 additional USB 2.0 ports).

Audio:

  • Realtek 7.1 Surround Sound High Definition Audio CODEC.
  • Supports up to 24-Bit/192 kHz playback.
  • Audio Shielding, premium audio capacitors, dedicated audio PCB layers.

Back Panel I/O Ports:

  • 2 x USB 3.2 Gen 1 (5G) ports (Type-A), 2 x USB 2.0 ports (Type-A), 1 x DisplayPort, 1 x VGA port, 1 x HDMI port, 1 x Realtek 1Gb Ethernet port, 3 x audio jacks, 1 x PS/2 Keyboard (purple) port, 1 x PS/2 Mouse (green) port.

Internal I/O Connectors:

  • Various connectors for fans, power, storage, and USB.
  • Aura RGB header, Addressable Gen 2 headers, Clear CMOS header, front panel audio header, COM Port header, S/PDIF Out header, Speaker header, SPI TPM header, System Panel header.

Special Features:

  • ASUS 5X PROTECTION III (DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot Core, Stainless-Steel Back I/O).
  • ASUS Q-Design (Q-DIMM, Q-Slot, Q-LED Core).
  • ASUS Thermal Solution (Aluminum heatsink design).
  • Aura Sync (Aura RGB header, Addressable Gen 2 RGB headers).

Software Features:

  • ASUS Exclusive Software including Armoury Crate, AI Suite 3, ASUS CPU-Z, and more.
  • UEFI BIOS with EZ DIY features like CrashFree BIOS 3 and EZ Flash 3.

BIOS:

  • 128 Mb Flash ROM, UEFI AMI BIOS.

Manageability:

  • Wake-On-LAN (WOL) by PME, PXE support.

Accessories:

  • Includes SATA cables, I/O Shield, M.2 SSD screw package, and user guide.

Operating System Support:

  • Windows 11 64-bit and Windows 10 64-bit.

Form Factor:

  • Micro-ATX (mATX) Form Factor, measuring 9.6 inches x 8.3 inches (24.4 cm x 21.1 cm).

1,988,000₫

Mã sản phẩm: M.AS.H610M.E.D5

      ⚙ THÔNG SỐ CƠ BẢN:

      • Intel® LGA 1700 Socket: Ready for 13th and 12th Gen Intel® processors
      • Comprehensive Cooling: PCH heatsink and Fan Xpert 2+
      • Ultrafast Connectivity: 32Gbps M.2 slot, Realtek 1 Gb Ethernet and USB 3.2 Gen 1
      • Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
      • ASUS Control Center Express: Real-time IT monitoring and management software for enhanced data protection
      Xem thêm cấu hình chi tiết
      SẮP VỀ HÀNG (Vui lòng liên hệ trực tiếp)

      Gọi đặt mua 1900 0243 (8:30 - 21:00)

      CPU Support:

      • Intel Socket LGA1700 for 13th Gen Intel Core processors, 12th Gen Intel Core, Pentium Gold, and Celeron processors.
      • Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 (availability depends on the CPU).

      Chipset:

      • Intel H610 Chipset

      Memory:

      • 2 DIMM slots, support for up to 96GB of DDR5 memory at various speeds (5600/5400/5200/5000/4800).
      • Dual-channel memory architecture.
      • Supports Intel Extreme Memory Profile (XMP).

      Graphics:

      • 1 x DisplayPort
      • 1 x VGA port
      • 1 x HDMI port (supports 4K@60Hz as specified in HDMI 2.1).
      • Graphics specifications may vary depending on the CPU type.

      Expansion Slots:

      • 1 x PCIe 4.0 x16 slot for 13th and 12th Gen Intel Processors.
      • 1 x PCIe 3.0 x1 slot.

      Storage:

      • 2 x M.2 slots (Key M) and 4 x SATA 6Gb/s ports.

      Ethernet:

      • 1 x Realtek 1Gb Ethernet.

      USB:

      • Rear USB: 2 x USB 3.2 Gen 1 (5G) ports (Type-A), 2 x USB 2.0 ports (Type-A).
      • Front USB: 1 x USB 3.2 Gen 1 header (supports 2 additional USB 3.2 Gen 1 ports), 2 x USB 2.0 headers (support 3 additional USB 2.0 ports).

      Audio:

      • Realtek 7.1 Surround Sound High Definition Audio CODEC.
      • Supports up to 24-Bit/192 kHz playback.
      • Audio Shielding, premium audio capacitors, dedicated audio PCB layers.

      Back Panel I/O Ports:

      • 2 x USB 3.2 Gen 1 (5G) ports (Type-A), 2 x USB 2.0 ports (Type-A), 1 x DisplayPort, 1 x VGA port, 1 x HDMI port, 1 x Realtek 1Gb Ethernet port, 3 x audio jacks, 1 x PS/2 Keyboard (purple) port, 1 x PS/2 Mouse (green) port.

      Internal I/O Connectors:

      • Various connectors for fans, power, storage, and USB.
      • Aura RGB header, Addressable Gen 2 headers, Clear CMOS header, front panel audio header, COM Port header, S/PDIF Out header, Speaker header, SPI TPM header, System Panel header.

      Special Features:

      • ASUS 5X PROTECTION III (DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot Core, Stainless-Steel Back I/O).
      • ASUS Q-Design (Q-DIMM, Q-Slot, Q-LED Core).
      • ASUS Thermal Solution (Aluminum heatsink design).
      • Aura Sync (Aura RGB header, Addressable Gen 2 RGB headers).

      Software Features:

      • ASUS Exclusive Software including Armoury Crate, AI Suite 3, ASUS CPU-Z, and more.
      • UEFI BIOS with EZ DIY features like CrashFree BIOS 3 and EZ Flash 3.

      BIOS:

      • 128 Mb Flash ROM, UEFI AMI BIOS.

      Manageability:

      • Wake-On-LAN (WOL) by PME, PXE support.

      Accessories:

      • Includes SATA cables, I/O Shield, M.2 SSD screw package, and user guide.

      Operating System Support:

      • Windows 11 64-bit and Windows 10 64-bit.

      Form Factor:

      • Micro-ATX (mATX) Form Factor, measuring 9.6 inches x 8.3 inches (24.4 cm x 21.1 cm).
