Mainboard GIGABYTE Z790M Aorus Elite AX (rev. 1.0)

Đóng
  • Bài viết đánh giá

⚙ THÔNG SỐ CƠ BẢN:

  • Intel® Socket LGA 1700:Support 13th and 12th Gen Series Processors
  • Unparalleled Performance:Twin 12*+1+1 Phases Digital VRM Solution
  • Dual Channel DDR5:4*SMD DIMMs with XMP 3.0 Memory Module Support
  • Next Generation Storage:3*PCIe 4.0 x4 M.2 Connectors
  • Advanced Thermal Design & M.2 Thermal Guard:To Ensure VRM Power Stability & M.2 SSD Performance
  • EZ-Latch:PCIe x16 Slot & M.2 Connectors with Quick Release & Screwless Design
  • Fast Networks:2.5GbE LAN & Wi-Fi 6E 802.11ax
  • Extended Connectivity:HDMI, DP, Rear USB-C® 20Gb/s, Front USB-C® 10Gb/s
  • Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card

🛒 Xem thêm các sản phẩm Mainboard - Bo mạch chủ tại đây



BẢNG THÔNG SỐ CHI TIẾT:

    CPU Socket    LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
    Chipset    Intel® Z790 Express Chipset
    Memory    - Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules
        - 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory
        - Dual channel memory architecture
        - Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
        - Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
        - Support for Extreme Memory Profile (XMP) memory modules
    Integrated Graphics    - Integrated Graphics Processor-Intel® HD Graphics support:
        - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
        - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60
    Audio    Realtek® ALC1200 CODEC
        - High Definition Audio
        - 2/4/5.1/7.1-channel
        - Support for S/PDIF Out
    LAN    Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
    Wireless Communication module    Intel® Wi-Fi 6E AX211
        - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
        - BLUETOOTH 5.3
        - Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
    Expansion Slots    - CPU: 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
        - Chipset: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
        - Support for AMD CrossFire™ technology
    Storage Interface    - CPU: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
        - Chipset: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
        - Chipset: 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
        - 6 x SATA 6Gb/s connectors
        - RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
        - RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
    USB Ports    - Chipset: 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support
        - Chipset: 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
        - Chipset: 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
        - Chipset+2 USB 2.0 Hubs: 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
        - Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
    Internal I/O Connectors    - 1 x 24-pin ATX main power connector
        - 1 x 8-pin ATX 12V power connector
        - 1 x 4-pin ATX 12V power connector
        - 1 x CPU fan header
        - 1 x water cooling CPU fan header
        - 3 x system fan headers
        - 1 x system fan/water cooling pump header
        - 2 x addressable LED strip headers
        - 2 x RGB LED strip headers
        - 3 x M.2 Socket 3 connectors
        - 6 x SATA 6Gb/s connectors
        - 1 x front panel header
        - 1 x front panel audio header
        - 1 x USB Type-C® header, with USB 3.2 Gen 2 support
        - 1 x USB 3.2 Gen 1 header
        - 2 x USB 2.0/1.1 headers
        - 2 x Thunderbolt™ add-in card connectors
        - 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
        - 1 x serial port header
        - 1 x reset button
        - 1 x Q-Flash Plus button
        - 1 x Clear CMOS button
        - 1 x reset jumper

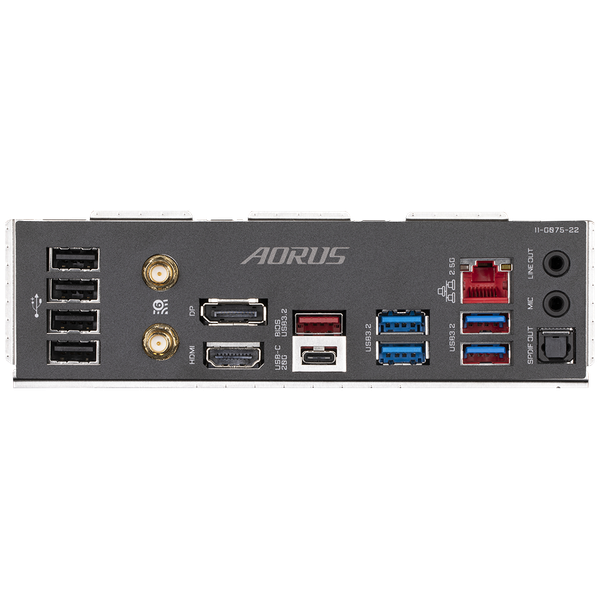

    Rear I/O Ports    - 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
        - 1 x USB 3.2 Gen 2 Type-A port (red)
        - 4 x USB 3.2 Gen 1 ports
        - 4 x USB 2.0/1.1 ports
        - 2 x SMA antenna connectors (2T2R)
        - 1 x HDMI 2.0 port
        - 1 x DisplayPort
        - 1 x RJ-45 port
        - 1 x optical S/PDIF Out connector
        - 2 x audio jacks
    I/O Controller    iTE® I/O Controller Chip
    Hardware Monitoring    - Voltage detection
        - Temperature detection
        - Fan speed detection
        - Water cooling flow rate detection
        - Fan fail warning
        - Fan speed control
    BIOS    - 1 x 256 Mbit flash
        - Use of licensed AMI UEFI BIOS
        - PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    Unique Features    - Support for GIGABYTE Control Center (GCC)
        - Support for Q-Flash
        - Support for Q-Flash Plus
        - Support for Smart Backup
    Software Bundle    - Norton® Internet Security (OEM version)
        - LAN bandwidth management software
    Operating System Support    - Support for Windows 11 64-bit
        - Support for Windows 10 64-bit
    Form Factor    Micro ATX Form Factor; 24.4cm x 24.4cm

6,366,000₫
