⚙ THÔNG SỐ SẢN PHẨM:

  • Socket: LGA1700 hỗ trợ CPU Intel thế hệ 13, Intel thế hệ thứ 12, Pentium® Gold and Celeron® Processors
  • Kích thước: ATX
  • Khe cắm RAM: 4 khe (Tối đa 128GB)
  • Khe cắm mở rộng: 1 x PCI Express 5.0 x16 slot, 1 x PCI Express 4.0 x16 slots, 1 x PCI Express 3.0 x16 slots, 2 x PCI Express 3.0 x1 slots
  • Khe cắm ổ cứng: 3 x M.2 slots, 6 x SATA 6Gb/s ports
   Sản phẩmBo mạch chủ
   Tên HãngGigabyte
   ModelZ790 UD
   CPU hỗ trợIntel
   ChipsetZ790
   RAM hỗ trợSupport for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules
4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
   Khe cắm mở rộngCPU:
1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1_4)
2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_2, PCIEX1_3)
   Ổ cứng hỗ trợCPU:
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
2 x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB, M2P_SB)
6 x SATA 6Gb/s connectors
   Cổng kết nối (Internal)1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x water cooling CPU fan header
3 x system fan headers
1 x system fan/water cooling pump header
2 x addressable LED strip headers
2 x RGB LED strip headers
3 x M.2 Socket 3 connectors
6 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB Type-C® header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x serial port header
2 x Thunderbolt™ add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x reset button
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper
   Cổng kết nối (Back Panel)1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
1 x USB 3.2 Gen 2 Type-A port (red)
4 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x HDMI 2.0 port
1 x DisplayPort
1 x RJ-45 port
3 x audio jacks
   LAN / WirelessRealtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
   Kích cỡATX Form Factor; 30.5cm x 24.4cm

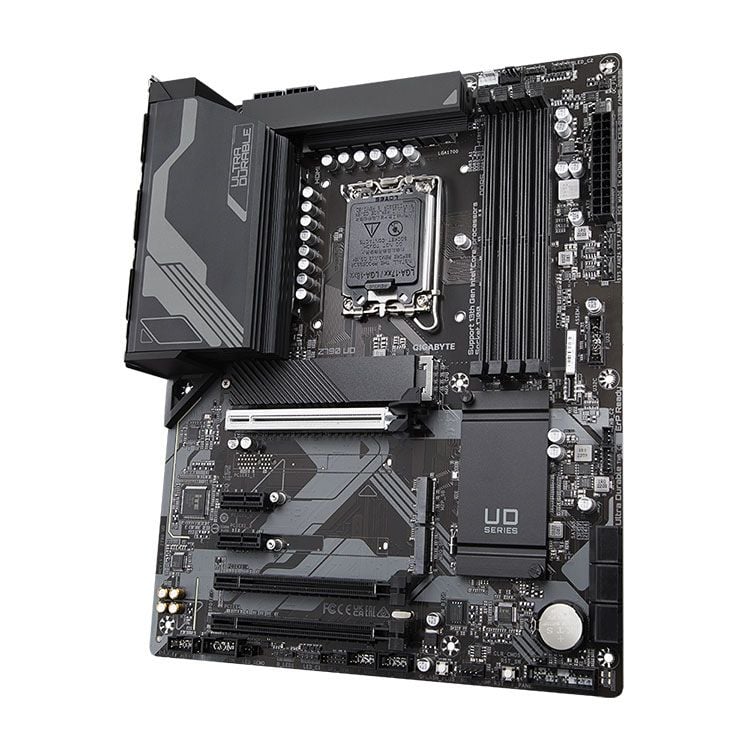

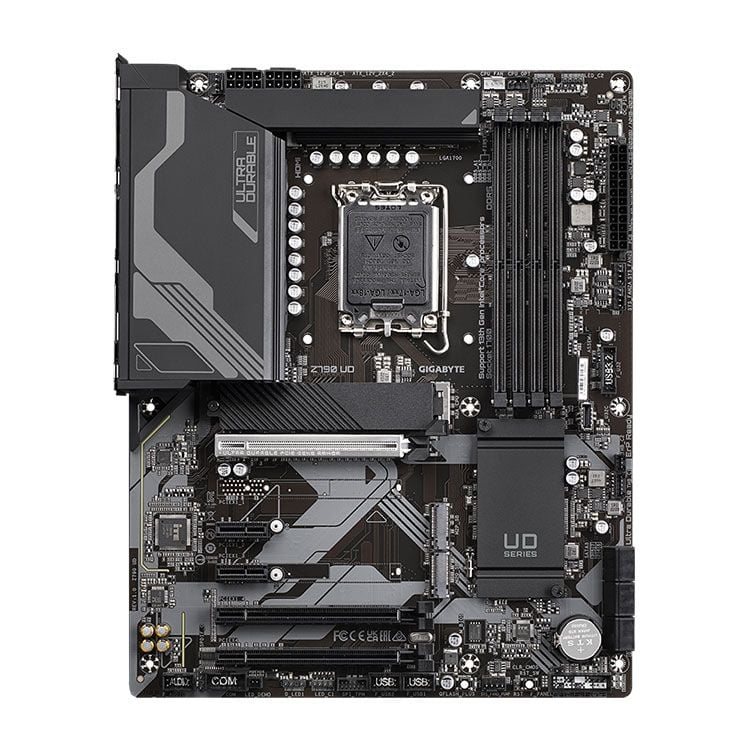

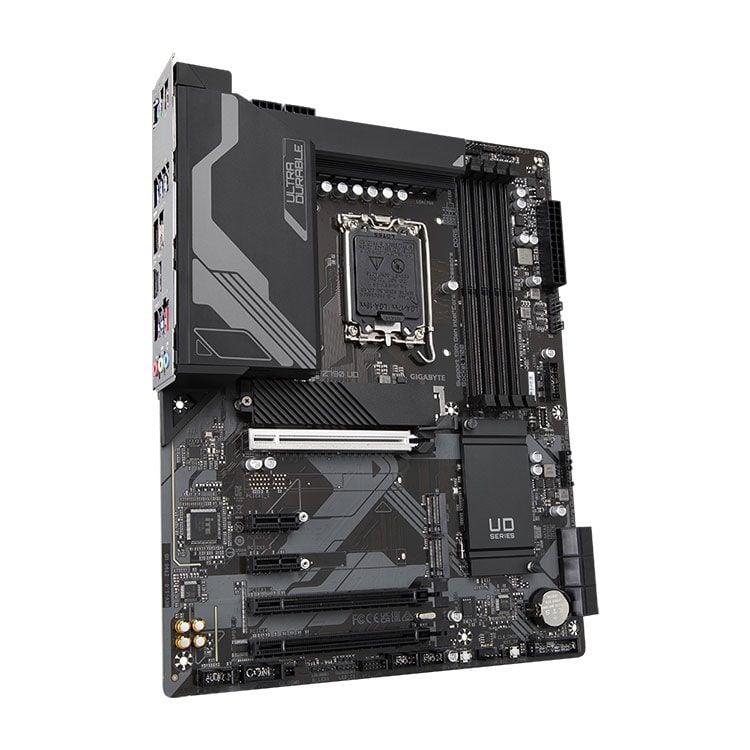

Mainboard Gigabyte Z790 UD (Intel Z790, Socket LGA 1700, ATX, 4 khe ram DDR5)

Mã sản phẩm: M.GG.Z790.UD.D5

5,599,000₫

Khuyến mãi - ưu đãi Khuyến mãi - ưu đãi
    Gọi đặt mua: 1900 0243 (8:30 - 21:00)
    Số lượng:

    Thông số kỹ thuật

    ⚙ THÔNG SỐ SẢN PHẨM:

    • Socket: LGA1700 hỗ trợ CPU Intel thế hệ 13, Intel thế hệ thứ 12, Pentium® Gold and Celeron® Processors
    • Kích thước: ATX
    • Khe cắm RAM: 4 khe (Tối đa 128GB)
    • Khe cắm mở rộng: 1 x PCI Express 5.0 x16 slot, 1 x PCI Express 4.0 x16 slots, 1 x PCI Express 3.0 x16 slots, 2 x PCI Express 3.0 x1 slots
    • Khe cắm ổ cứng: 3 x M.2 slots, 6 x SATA 6Gb/s ports
    Xem thêm cấu hình chi tiết
    MÔ TẢ SẢN PHẨM
       Sản phẩmBo mạch chủ
       Tên HãngGigabyte
       ModelZ790 UD
       CPU hỗ trợIntel
       ChipsetZ790
       RAM hỗ trợSupport for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules
    4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
       Khe cắm mở rộngCPU:
    1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
    Chipset:
    1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
    1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1_4)
    2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_2, PCIEX1_3)
       Ổ cứng hỗ trợCPU:
    1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
    Chipset:
    2 x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB, M2P_SB)
    6 x SATA 6Gb/s connectors
       Cổng kết nối (Internal)1 x 24-pin ATX main power connector
    2 x 8-pin ATX 12V power connectors
    1 x CPU fan header
    1 x water cooling CPU fan header
    3 x system fan headers
    1 x system fan/water cooling pump header
    2 x addressable LED strip headers
    2 x RGB LED strip headers
    3 x M.2 Socket 3 connectors
    6 x SATA 6Gb/s connectors
    1 x front panel header
    1 x front panel audio header
    1 x S/PDIF Out header
    1 x USB Type-C® header, with USB 3.2 Gen 1 support
    1 x USB 3.2 Gen 1 header
    2 x USB 2.0/1.1 headers
    1 x serial port header
    2 x Thunderbolt™ add-in card connectors
    1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
    1 x reset button
    1 x Q-Flash Plus button
    1 x reset jumper
    1 x Clear CMOS jumper

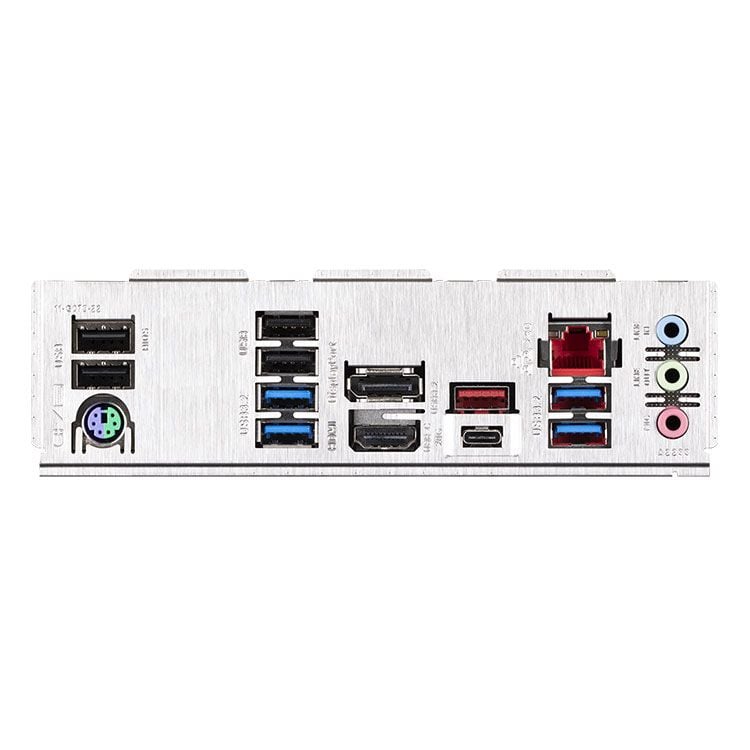

       Cổng kết nối (Back Panel)1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
    1 x USB 3.2 Gen 2 Type-A port (red)
    4 x USB 3.2 Gen 1 ports
    4 x USB 2.0/1.1 ports
    1 x HDMI 2.0 port
    1 x DisplayPort
    1 x RJ-45 port
    3 x audio jacks
       LAN / WirelessRealtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
       Kích cỡATX Form Factor; 30.5cm x 24.4cm
