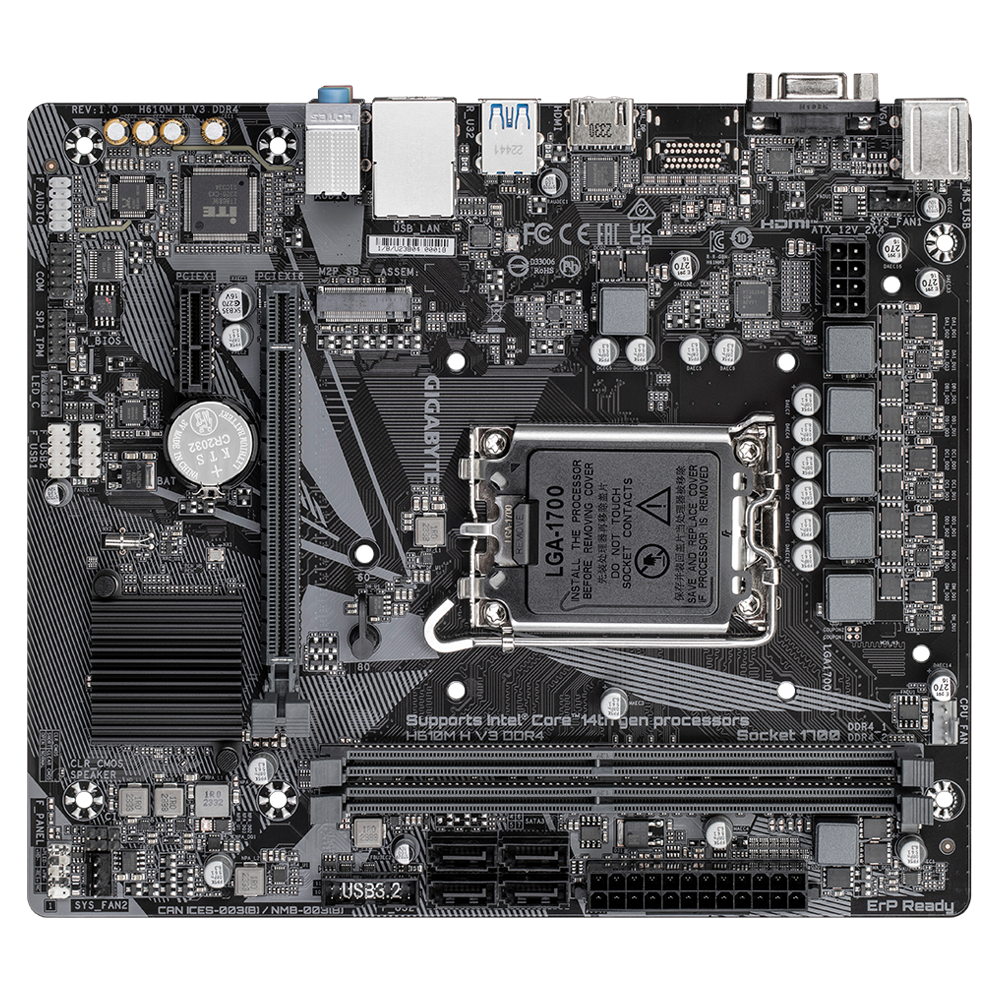

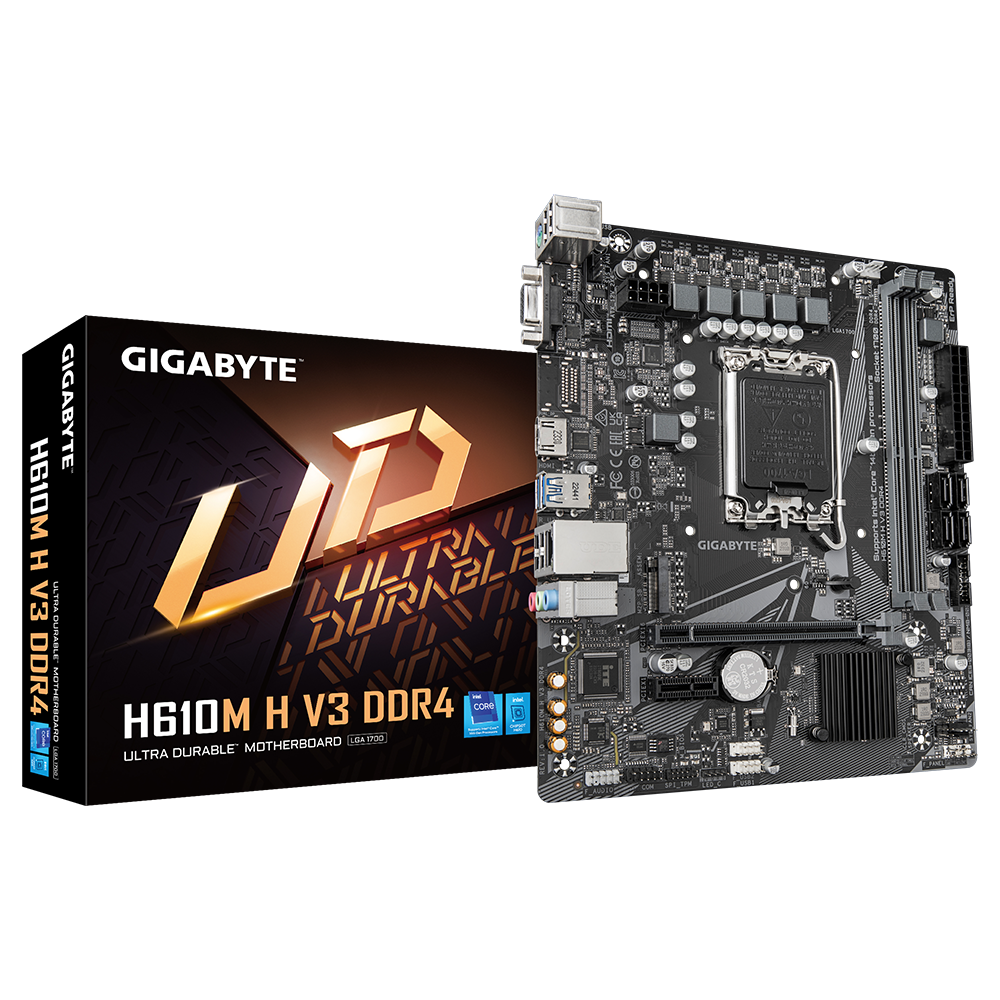

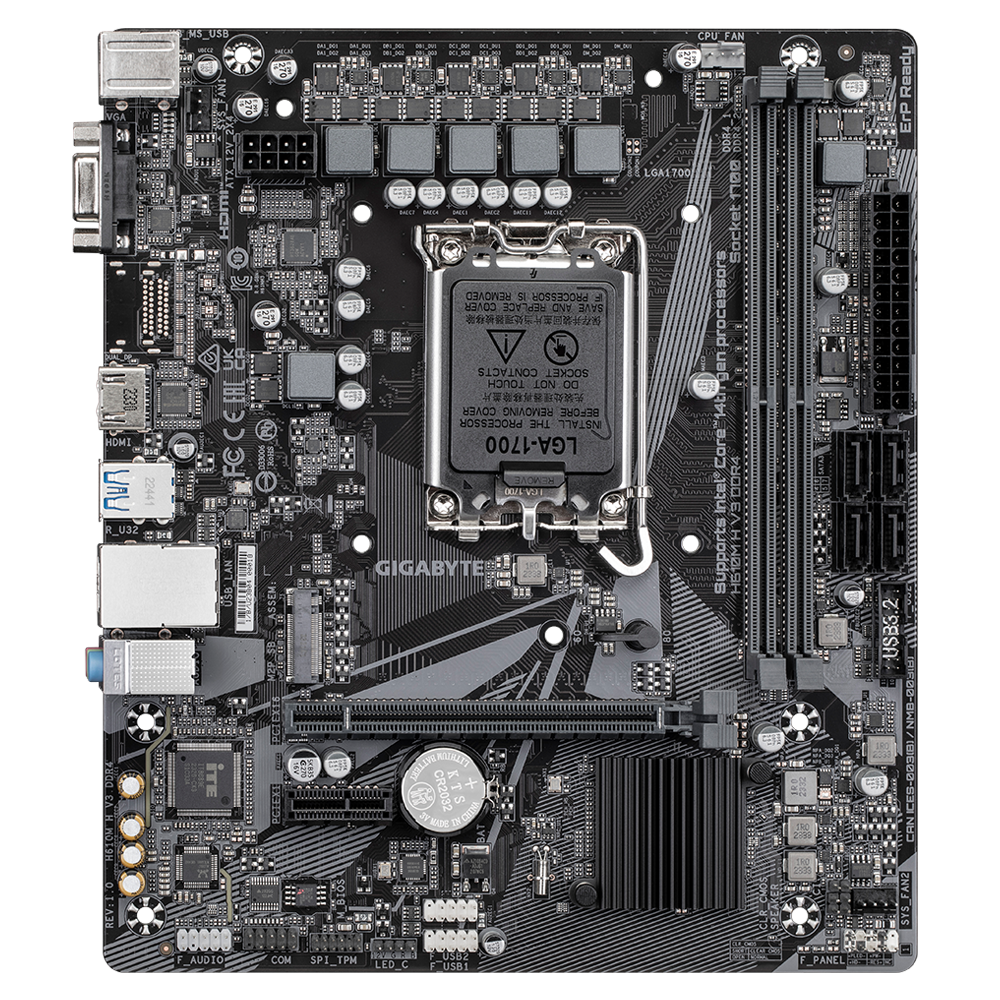

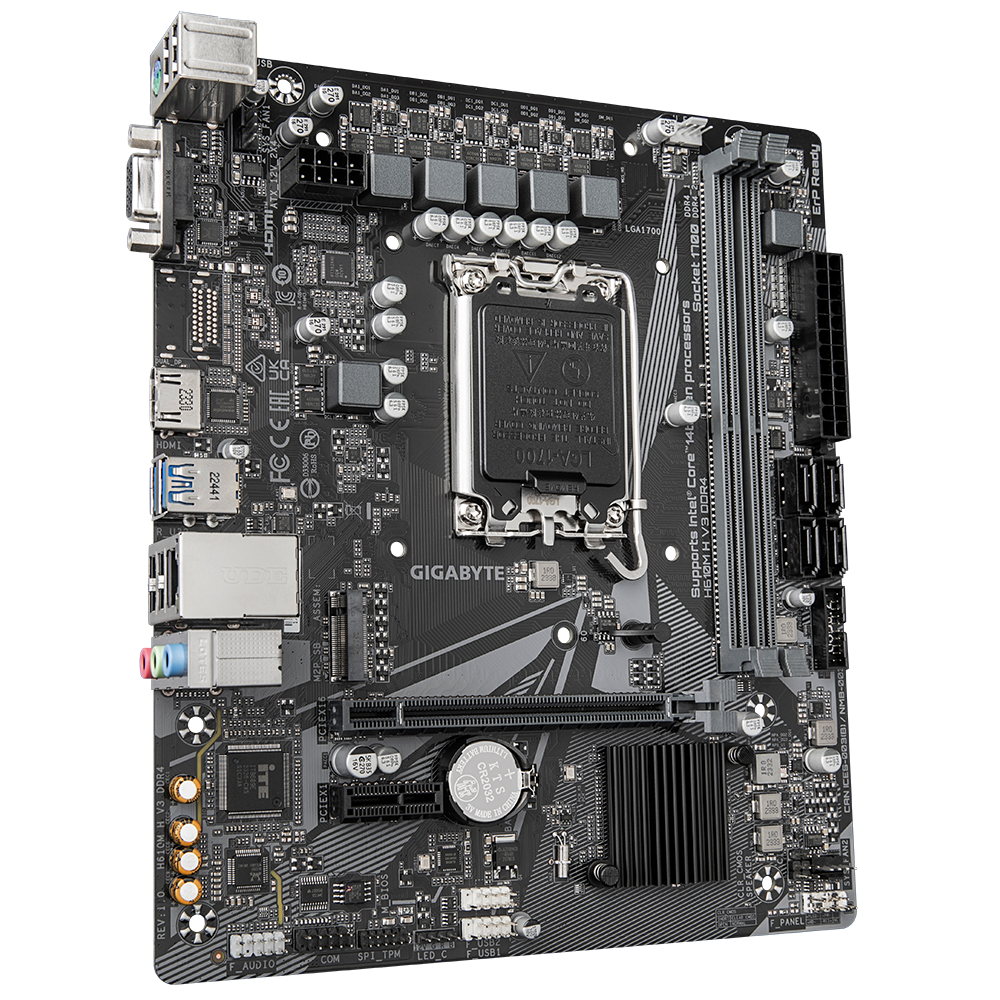

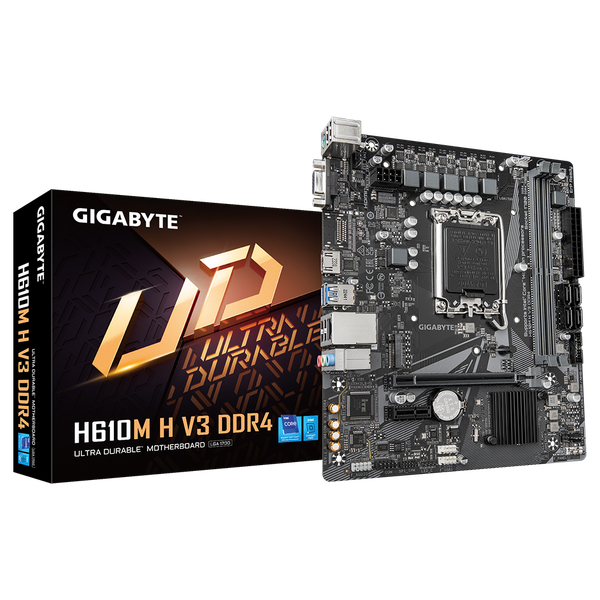

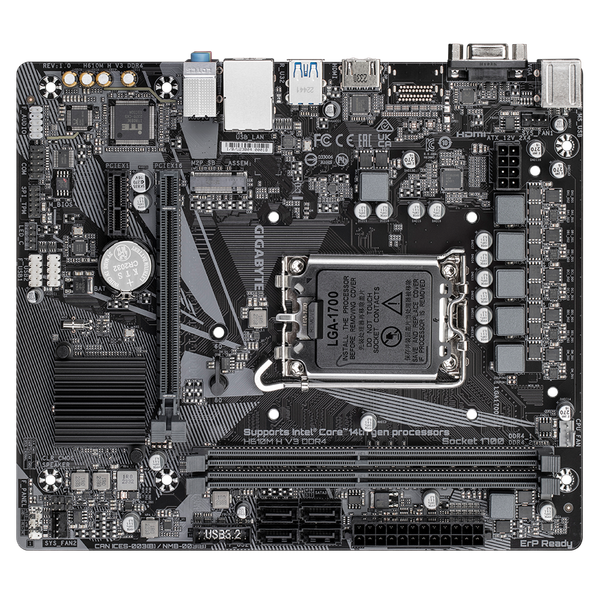

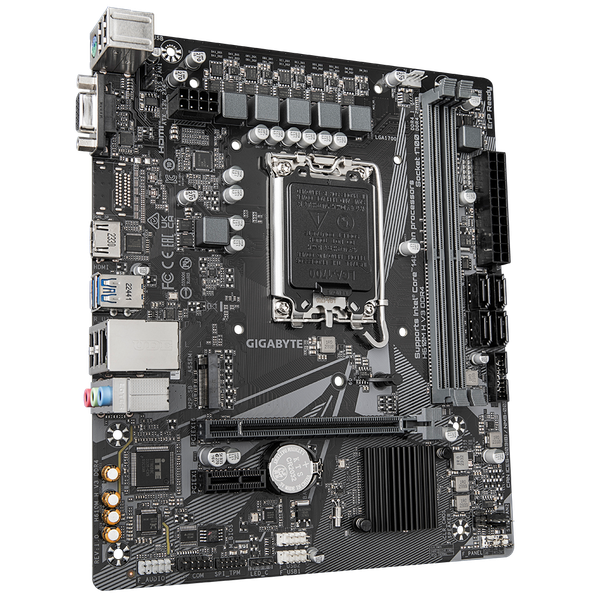

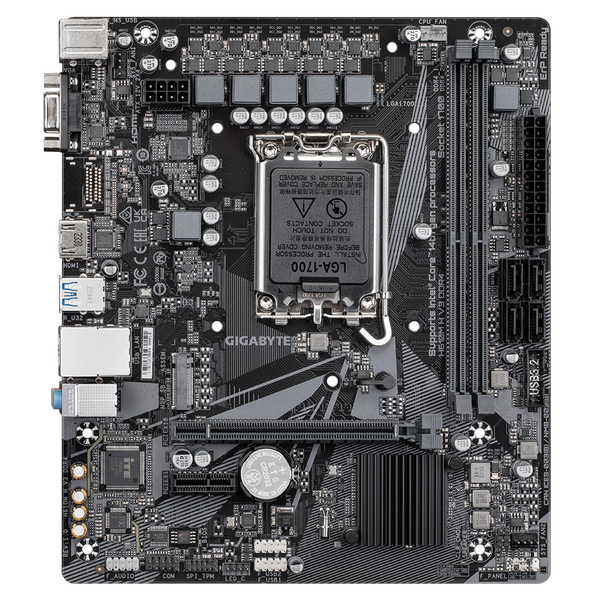

Mainboard Gigabyte H610M H V3 DDR4 (rev. 1.0)

Đóng
  • Bài viết đánh giá

⚙ THÔNG SỐ CƠ BẢN:

  • Socket: LGA1700
  • Kích thước: Micro ATX
  • Khe cắm RAM: 2 khe DDR4

🛒 Xem thêm các sản phẩm Mainboard - Bo mạch chủ tại đây

1,550,000₫

1,650,000₫

-6%

Mã sản phẩm: M.GG.H610M.H.R4.V3

    ⚙ THÔNG SỐ CƠ BẢN:

    • Socket: LGA1700
    • Kích thước: Micro ATX
    • Khe cắm RAM: 2 khe DDR4

    🛒 Xem thêm các sản phẩm Mainboard - Bo mạch chủ tại đây

    Xem thêm cấu hình chi tiết

    Gọi đặt mua 1900 0243 (8:30 - 21:00)

    MÔ TẢ SẢN PHẨM

    Thông số kỹ thuật

    CPU

    LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors. L3 cache varies with CPU. (Please refer to "CPU Support List" for more information.)

    Chipset

    Intel® H610 Express Chipset.

    Memory

    Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory. Dual channel memory architecture. Support for ECC and non-ECC Un-buffered DIMM memory modules. Support for Extreme Memory Profile (XMP) memory modules. (Please refer to "Memory Support List" on GIGABYTE's website.)

    Onboard Graphics

    Integrated Graphics Processor-Intel® HD Graphics support: 1 x D-Sub port (1920x1200@60 Hz), 1 x HDMI port (4096x2160@60 Hz). Support for HDMI 2.1 and HDCP 2.3.

    Audio

    Realtek® Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel.

    LAN

    Realtek® GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)

    Expansion Slots

    CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16. Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1.

    Storage Interface

    Chipset: 1 x M.2 connector (PCIe 3.0 x4/x2 SSD support), 4 x SATA 6Gb/s connectors.

    USB

    Chipset: 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available via internal header), 4 x USB 2.0/1.1 ports on the back panel. Chipset + USB 2.0 Hub: 4 x USB 2.0/1.1 ports available via internal headers.

    Internal I/O Connectors

    1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x CPU fan header, 2 x system fan headers, 1 x M.2 connector, 4 x SATA 6Gb/s connectors, 1 x RGB LED strip header, 1 x front panel header, 1 x front panel audio header, 1 x USB 3.2 Gen 1 header, 2 x USB 2.0/1.1 headers, etc.

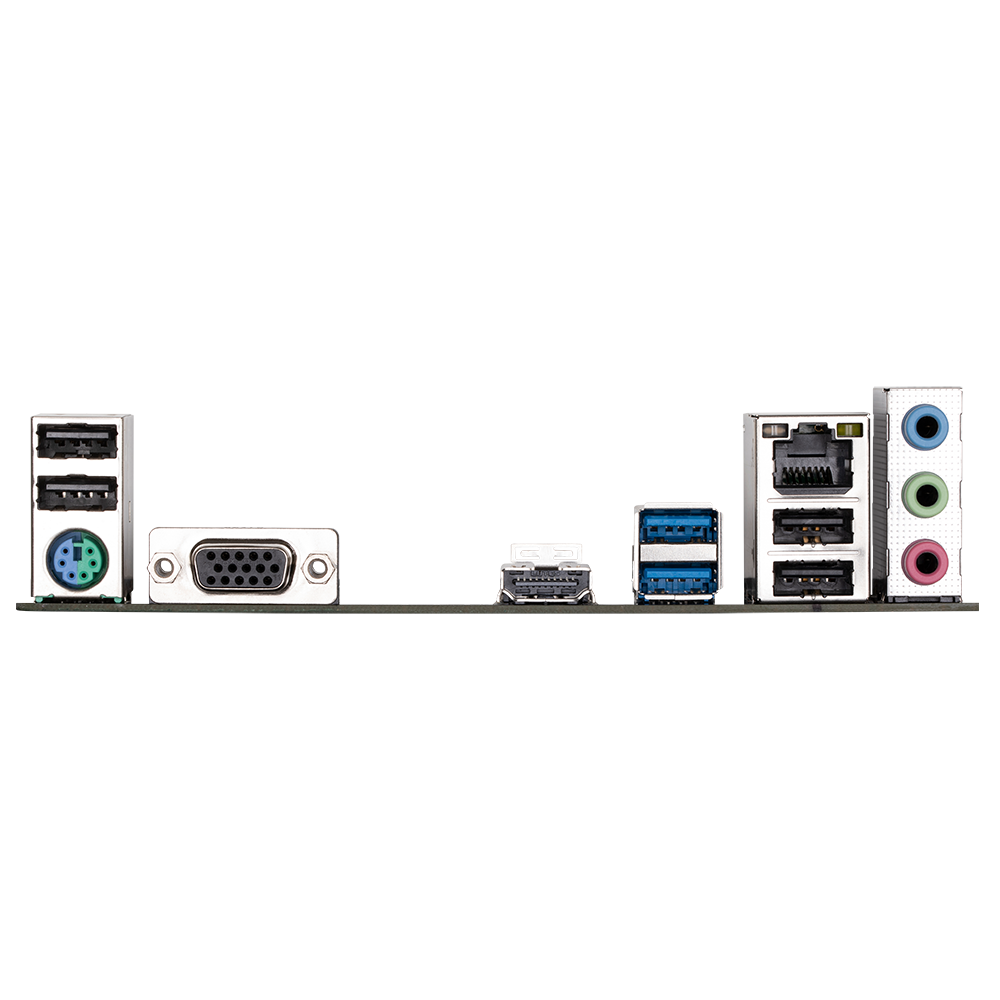

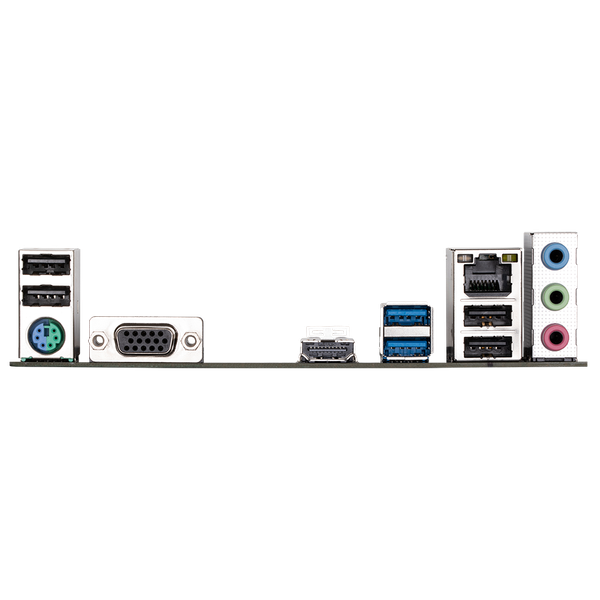

    Back Panel Connectors

    1 x PS/2 keyboard/mouse port, 1 x D-Sub port, 1 x HDMI port, 2 x USB 3.2 Gen 1 ports, 4 x USB 2.0/1.1 ports, 1 x RJ-45 port, 3 x audio jacks.

    I/O ControlleriTE® I/O Controller Chip
    H/W Monitoring

    Voltage, temperature, and fan speed detection. Water cooling flow rate detection, fan fail warning, fan speed control.

    BIOS

    1 x 128 Mbit flash, AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0.

    Unique Features

    Support for APP Center, @BIOS, EasyTune, Smart Backup, System Information Viewer, Q-Flash.

    Bundled Software

    Norton® Internet Security (OEM version), LAN bandwidth management software.

    Operating System

    Support for Windows 11 64-bit and Windows 10 64-bit.

    Form Factor

    Micro ATX Form Factor; 22.3cm x 19.3cm
