  • CPU: Support for 9th and 8th Generation Intel® Core™ i9/i7/i5/i3 processors, Intel® Pentium®/Celeron® processors in LGA1151 package.
  • Chipset: Intel® H310 Express Chipset.
  • Bộ nhớ: Up to 32 GB DDR4 memory, dual channel, supports DDR4 2666/2400/2133 MHz, ECC/non-ECC memory modules.
  • Card đồ họa tích hợp: Intel® HD Graphics, 1 x D-Sub port, max resolution 1920x1200@60Hz.
  • Âm thanh: Realtek® ALC887 codec, High Definition Audio, 2/4/5.1/7.1-channel.
  • LAN: Realtek® GbE LAN chip (10/100/1000 Mbit).
  • Khe cắm mở rộng: 1 x PCI Express x16 slot (PCI Express 3.0), 2 x PCI Express x1 slots (PCI Express 2.0).
  • Giao diện lưu trữ: 4 x SATA 6Gb/s connectors.
  • USB: 4 x USB 3.1 Gen 1 ports, 6 x USB 2.0/1.1 ports.
  • Kết nối I/O bên trong: Multiple internal connectors, including USB 3.1 Gen 1, TPM, and fan headers.
  • Kết nối bảng phía sau: PS/2 ports, D-Sub port, USB ports, RJ-45, 3 audio jacks.
  • Điều khiển I/O: iTE® I/O Controller Chip.
  • Hệ số khuôn: Micro ATX Form Factor; 22.6cm x 17.4cm.

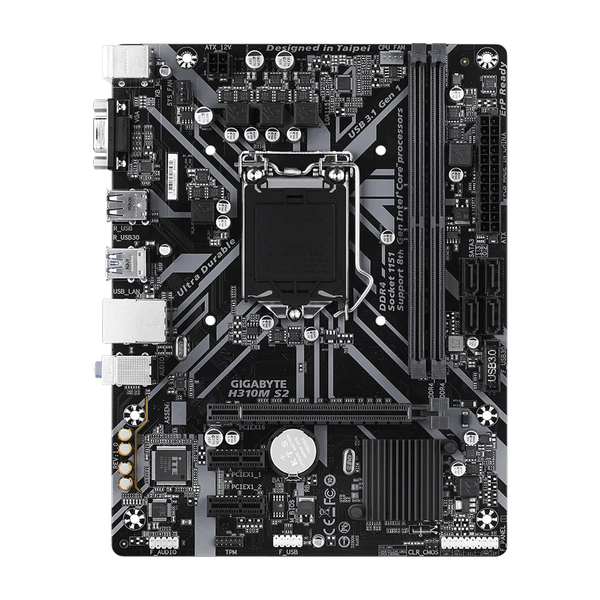

Mainboard Gigabyte H310M S2 QSD

Mã sản phẩm: M.GG.H310M.S2.CU

760,000₫

Khuyến mãi - ưu đãi Khuyến mãi - ưu đãi
    Gọi đặt mua: 1900 0243 (8:30 - 21:00)
    Số lượng:

    Thông số kỹ thuật

    • CPU: Support for 9th and 8th Generation Intel® Core™ i9/i7/i5/i3 processors, Intel® Pentium®/Celeron® processors in LGA1151 package.
    • Chipset: Intel® H310 Express Chipset.
    • Bộ nhớ: Up to 32 GB DDR4 memory, dual channel, supports DDR4 2666/2400/2133 MHz, ECC/non-ECC memory modules.
    • Card đồ họa tích hợp: Intel® HD Graphics, 1 x D-Sub port, max resolution 1920x1200@60Hz.
    • Âm thanh: Realtek® ALC887 codec, High Definition Audio, 2/4/5.1/7.1-channel.
    • LAN: Realtek® GbE LAN chip (10/100/1000 Mbit).
    • Khe cắm mở rộng: 1 x PCI Express x16 slot (PCI Express 3.0), 2 x PCI Express x1 slots (PCI Express 2.0).
    • Giao diện lưu trữ: 4 x SATA 6Gb/s connectors.
    • USB: 4 x USB 3.1 Gen 1 ports, 6 x USB 2.0/1.1 ports.
    • Kết nối I/O bên trong: Multiple internal connectors, including USB 3.1 Gen 1, TPM, and fan headers.
    • Kết nối bảng phía sau: PS/2 ports, D-Sub port, USB ports, RJ-45, 3 audio jacks.
    • Điều khiển I/O: iTE® I/O Controller Chip.
    • Hệ số khuôn: Micro ATX Form Factor; 22.6cm x 17.4cm.
    Xem thêm cấu hình chi tiết
    MÔ TẢ SẢN PHẨM

    Thông số kỹ thuật

    CPUSupport for 9th and 8th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package. L3 cache varies with CPU. (Please refer "CPU Support List" for more information.)
    ChipsetIntel® H310 Express Chipset
    Bộ nhớ2 x DDR4 DIMM sockets supporting up to 32 GB of system memory. Dual channel memory architecture. Support for DDR4 2666/2400/2133 MHz memory modules. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode). Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules. Support for Extreme Memory Profile (XMP) memory modules. * To support 2666 MHz or XMP memory, you must install an 8th Generation Intel® Core™ i7/i5 processor. (Please refer "Memory Support List" for more information.)
    Card đồ họa tích hợpIntegrated Graphics Processor-Intel® HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz. Maximum shared memory of 1 GB.
    Âm thanhRealtek® ALC887 codec, High Definition Audio, 2/4/5.1/7.1-channel. * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
    LANRealtek® GbE LAN chip (10/100/1000 Mbit)
    Khe cắm mở rộng1 x PCI Express x16 slot, running at x16 (The PCIEX16 slot conforms to PCI Express 3.0 standard.) 2 x PCI Express x1 slots (The PCI Express x1 slots conform to PCI Express 2.0 standard.)
    Giao diện lưu trữ4 x SATA 6Gb/s connectors
    USB4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header), 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
    Kết nối I/O bên trong1 x 24-pin ATX main power connector, 1 x 4-pin ATX 12V power connector, 4 x SATA 6Gb/s connectors, 1 x CPU fan header, 1 x system fan header, 1 x front panel header, 1 x front panel audio header, 1 x USB 3.1 Gen 1 header, 1 x USB 2.0/1.1 headers, 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only), 1 x Clear CMOS jumper
    Kết nối bảng phía sau1 x PS/2 keyboard port, 1 x PS/2 mouse port, 1 x D-Sub port, 2 x USB 3.1 Gen 1 ports, 4 x USB 2.0/1.1 ports, 1 x RJ-45 port, 3 x audio jacks
    Điều khiển I/OiTE® I/O Controller Chip
    Theo dõi phần cứngVoltage detection, Temperature detection, Fan speed detection, Overheating warning, Fan fail warning, Fan speed control (Depends on the cooler installed)
    BIOS1 x 128 Mbit flash, Use of licensed AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    Tính năng duy nhấtSupport for APP Center (Available applications may vary), 3D OSD, @BIOS, AutoGreen, Cloud Station, EasyTune, Fast Boot, Game Boost, ON/OFF Charge, Platform Power Management, Smart Backup, Smart Keyboard, Smart TimeLock, Smart HUD, System Information Viewer, USB Blocker, V-Tuner, Support for Q-Flash, Support for Xpress Install
    Gói phần mềmNorton® Internet Security (OEM version)
    Hệ điều hànhSupport for Windows 10 64-bit
    Hệ số khuônMicro ATX Form Factor; 22.6cm x 17.4cm
