  • Bài viết đánh giá
  • Thương hiệu: Colorful
  • Loại sản phẩm: Mainboard
  • Model: CVN B760M-PLUS FROZEN WIFI D5 V20
  • Chipset: B760
  • Hỗ trợ bộ nhớ: 4 x DDR5, tối đa 192GB
  • Hỗ trợ Socket: FCLGA1700
  • Kích thước: M-ATX

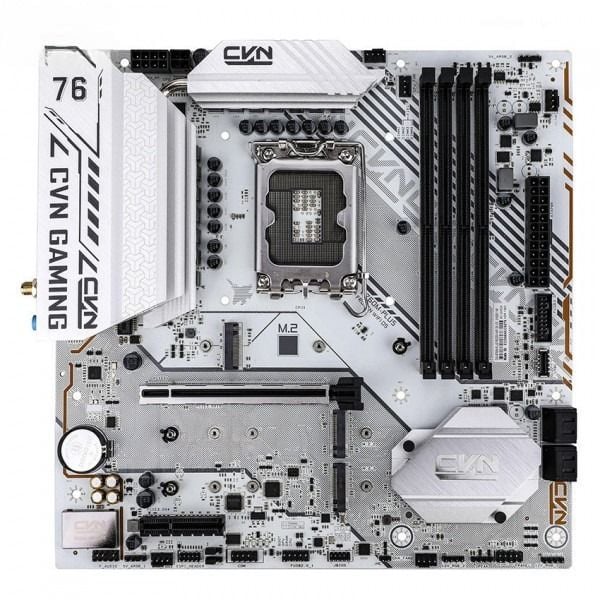

Mainboard Colorful CVN B760M FROZEN WIFI PLUS DDR5 V20

Mã sản phẩm: M.CLF.B760M.FR.P.White.WF6E.D5

3,411,000₫

4,130,000₫

-17%

Khuyến mãi - ưu đãi Khuyến mãi - ưu đãi
    Gọi đặt mua: 1900 0243 (8:30 - 21:00)
    Số lượng:

    Thông số kỹ thuật

    • Thương hiệu: Colorful
    • Loại sản phẩm: Mainboard
    • Model: CVN B760M-PLUS FROZEN WIFI D5 V20
    • Chipset: B760
    • Hỗ trợ bộ nhớ: 4 x DDR5, tối đa 192GB
    • Hỗ trợ Socket: FCLGA1700
    • Kích thước: M-ATX
    Xem thêm cấu hình chi tiết
    MÔ TẢ SẢN PHẨM

    Thông số kỹ thuật

    Loại sản phẩmMainboard
    Thương hiệuColorful
    ModelCVN B760M-PLUS FROZEN WIFI D5 V20
    ChipsetIntel B760
    Hỗ trợ CPU14th/13th and 12th generation Intel adapting to the LGA 1700 slot of the motherboard ® Core ™, Pentium ® And Cylon ® processor
    Hỗ trợ bộ nhớ4 DDR5 memory sockets are provided, which can support up to 192 GB of memory (a single socket can support up to 48 GB of memory)
    - DDR5-7200 (OC)/6800 (OC)/6600 (OC)/6400 (OC)/6200 (OC)/6000 (OC)/5800 (OC)/5600 (OC)/5400 (OC)/5200 (OC)/5000 (OC)/4800MHz memory
    - Intel is supported ® Extreme Memory Profile (XMP) memory technology
    - supports dual channel memory technology
    Cổng SATAA total of 3 M.2 slots and 4 SATA 6Gb/s hard disk interfaces are supported, Support the creation of RAID 0, RAID 1, RAID 5, and RAID 10 disk arrays using SATA hard disk devices
    - M.2_ 1 slot: support 2242/2280 M.2 SSD (PCIe 4.0 x4, CPU channel)
    - M.2_ 2 slots: support 2242/2260/2280 M.2 SSD (PCIe 4.0 x4, PCH channel)
    - M.2_ 3 slots: support 2242/2260/2280 M.2 SSD (PCIe 4.0 x4, PCH channel)

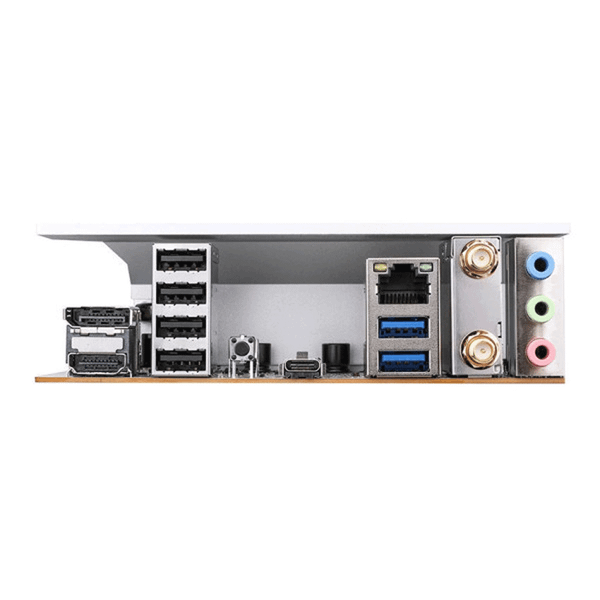

    Bảng I/ORear I/O interface:
    - 4×USB 2.0 interfaces
    - 2×USB 3.2 Gen 1 Type-A interfaces
    - 1×USB 3.2 Gen 2 Type-C interface
    - 1×DP 1.2 interface, supporting up to 4K 60Hz resolution
    - 1×HDMI 2.0 interface, Up to 4K 60Hz resolution
    - 1×2.5G network interface
    - 2×Wi-Fi 6 antenna interfaces
    - 3×audio interfaces (audio input/audio output/microphone)
    - 1×BIOS update button
    On board device interface:
    - 1×CPU fan pin
    - 3×system fan pins
    - 1×water-cooled pump pin
    - 1×USB 2.0 pin can expand 2 USB 2.0 Type-A interfaces
    - 1×USB 3.2 Gen 1 pin can expand 2 USB 3.2 Gen 1 Type-A interfaces
    - 1×USB 3.2 Gen 1 Type-C slot can expand 1 USB 3.2 Gen 1 Type-C interface
    - 2×5V 3-pin ARGB pins
    - 2×12V 4-pin RGB pins
    - 1×Front audio pin
    - 1×front panel pin
    - 1×speaker pin
    - 1×clear CMOS jumper
    - 1×COM port pin
    - 1×BIOS burner pin
    - 1×POST card pin
    - 1×ME write protection jumper
    - 1×RGB light effect control jumper
    Khe mở rộng1×PCIe 5.0 x16 slot
    1×PCIe 3.0 x4 slot
    BIOS128M UEFI, support multiple languages
    LANRTL8125 2.5Gbit LAN, AX101 WiFi 6 wireless network card, Bluetooth 5.2
    Âm thanhRealtek ALC897 high fidelity decoding chip, Support up to 5.1 channels
    Kích thướcM-ATX
    245mm x 245mm
