Mainboard Colorful Battle-AX B760M-T WiFi V20

Đóng
  • Bài viết đánh giá

⚙ THÔNG SỐ CƠ BẢN:

  • BATTLE-AX series customized white motherboard
  • Provide 4 USB 3.2 Gen 1 Type-A high-speed interfaces
  • Provide 2 USB 2.0 interfaces
  • Provide 1 PCIe 4.0 x4 M.2 SSD slot
  • Provide 2 5V 3-pin ARGB pins
  • Provide HDMI+VGA display interface
  • Support iGame Center light efficiency control software, which can synchronously adjust the light efficiency of heat sinks, cooling fans, and memory
  • Six protection technologies, more stable product operation
  • 200 processes are strictly tested with guaranteed quality
  • PCB atomization process comprehensively upgraded

🛒 Xem thêm các sản phẩm Mainboard - Bo mạch chủ tại đây

2,290,000₫

Mã sản phẩm: M.CLF.B760M-T WF.V20

    ⚙ THÔNG SỐ CƠ BẢN:

    • BATTLE-AX series customized white motherboard
    • Provide 4 USB 3.2 Gen 1 Type-A high-speed interfaces
    • Provide 2 USB 2.0 interfaces
    • Provide 1 PCIe 4.0 x4 M.2 SSD slot
    • Provide 2 5V 3-pin ARGB pins
    • Provide HDMI+VGA display interface
    • Support iGame Center light efficiency control software, which can synchronously adjust the light efficiency of heat sinks, cooling fans, and memory
    • Six protection technologies, more stable product operation
    • 200 processes are strictly tested with guaranteed quality
    • PCB atomization process comprehensively upgraded

    🛒 Xem thêm các sản phẩm Mainboard - Bo mạch chủ tại đây

    Xem thêm cấu hình chi tiết

    Gọi đặt mua 1900 0243 (8:30 - 21:00)

    MÔ TẢ SẢN PHẨM

    Thông số kỹ thuật

    Model

    BATTLE-AX B760M-T WIFI V20

    Product SeriesBATTLE-AX series
    ChipsetIntel B760
    Processor

    Support the 14th/13th and 12th generation Intel adapting to the LGA 1700 slot of the motherboard ® Core ™, Pentium ® And Cylon ® processor
    (* Please visit www.colorful.cn for the latest memory compatibility list)

    Memory

    4 DDR4 memory sockets are provided, which can support up to 128 GB of memory (a single socket can support up to 32 GB of memory)
    - Support DDR4-4800 (OC)/4600 (OC)/4400 (OC)/4266 (OC)/4000 (OC)/3733 (OC)/3600 (OC)/3466 (OC)/3200/3000/2933/2800/2666/2400/2133MHz memory
    - Support Extreme Memory Profile (XMP) memory technology
    - Supports dual channel memory technology
    (* Please visit www.colorful.cn for the latest memory compatibility list)

    SATA Ports

    1 M.2 slots and 4 SATA 6Gb/s hard disk interfaces, Support the creation of RAID 0, RAID 1, RAID 5, and RAID 10 disk arrays using SATA hard disk devices
    - M.2_1 slot: supports 2242/2280 M.2 SSD (PCIe 4.0 x4, PCH channel)

    Board I/O

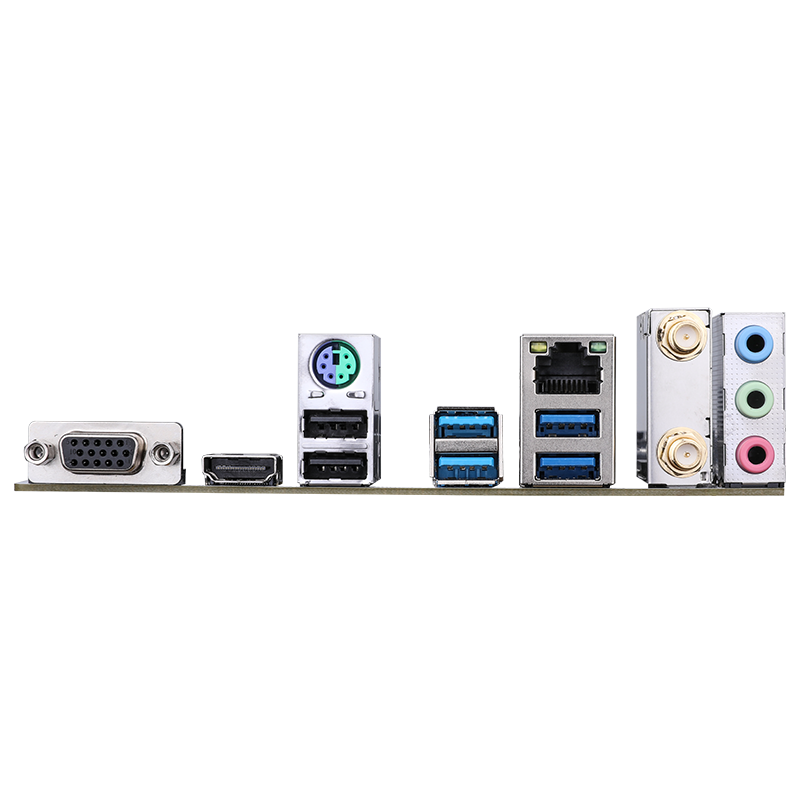

    Rear I/O :
    -1×PS/2 interface
    -2×USB 2.0 interfaces
    -4×USB 3.2 Gen 1 Type-A interfaces
    -1×HDMI 2.0 interface, supports up to 4K 60Hz resolution
    -1×VGA interface
    -1×Gigabit network interface
    -2×Wi-Fi 6 antenna interfaces
    -3×Audio interfaces (audio input/audio output/microphone)
    On board:
    -1×CPU fan pin
    -2×System fan pins
    -1×Water cooling pump pin
    -1×USB 2.0 pin expandable 2 USB 2.0 Type-A interfaces
    -1×USB 3.2 Gen 1 pin expandable 2 USB 3.2 Gen 1 Type-A interfaces
    -2×5V 3-pin ARGB pinss
    -1×Front audio pin
    -1×Front panel pin
    -1×Speaker pin
    -1×COM port pin
    -1×ME write protection jumper
    -1×Clear CMOS jumper
    -1×BIOS burner pin
    -1×POST card pin
    -1×PS/2 Wake-up control jumper

    Expansion Slots1×PCIe 4.0 x16 slot
    1×PCIe 3.0 x1 slot
    BIOS

    128M UEFI, support multiple languages

    Power Management

    Support S3/S4 wake-up, network S5 wake-up, support USB wake-up, support timing boot, call boot

    Hardware Monitor

    CPU fan speed is controllable, system fan speed is controllable (Fan1 supports independent control, Fan2 and Fan3 share control), CPU temperature monitoring, system temperature monitoring, and each group of voltage monitoring

    LAN

    RTL8111H Gigabit Network Card, AX101 WiFi 6 wireless network card, Bluetooth 5.2

    Audio

    Realtek ALC897 high fidelity decoding chip, Support up to 5.1 channels

    ConfigurationM-ATX
    235mm x 196mm
