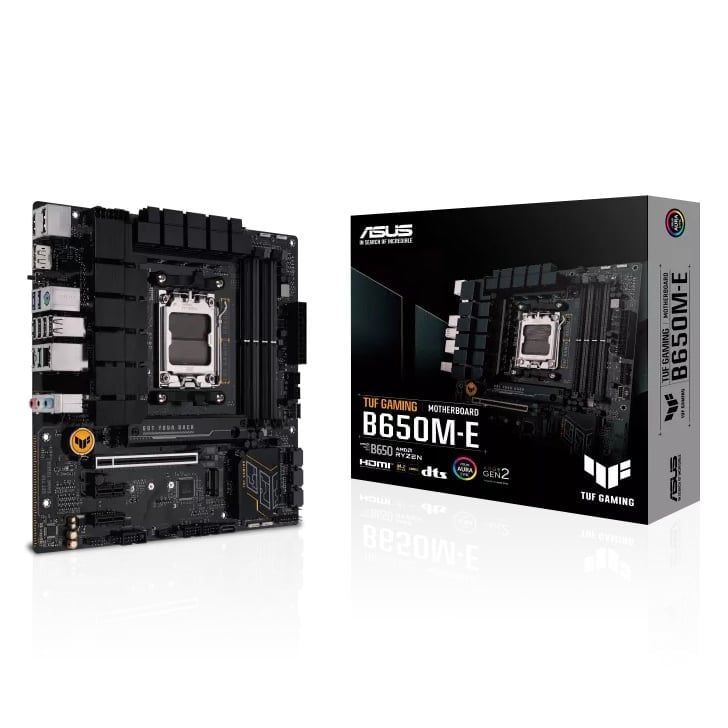

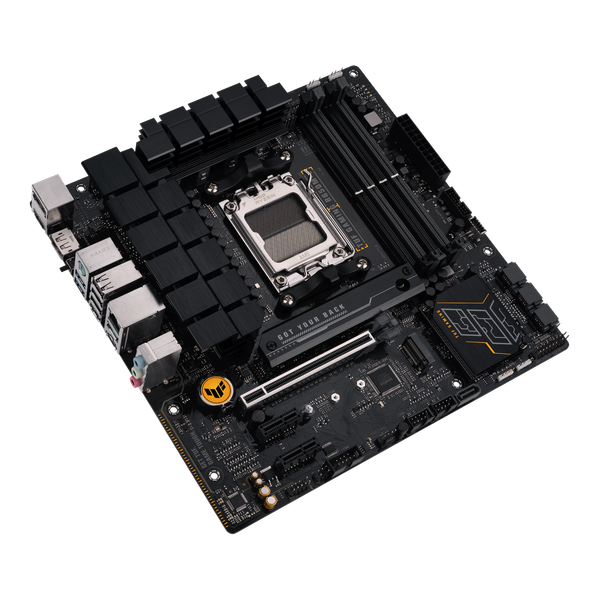

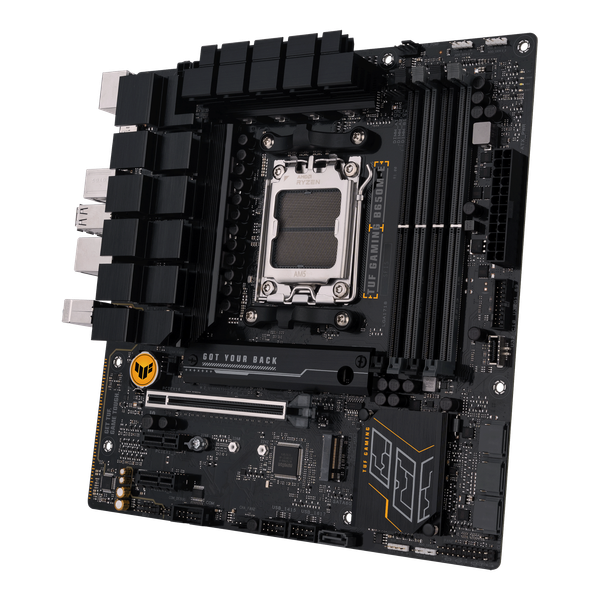

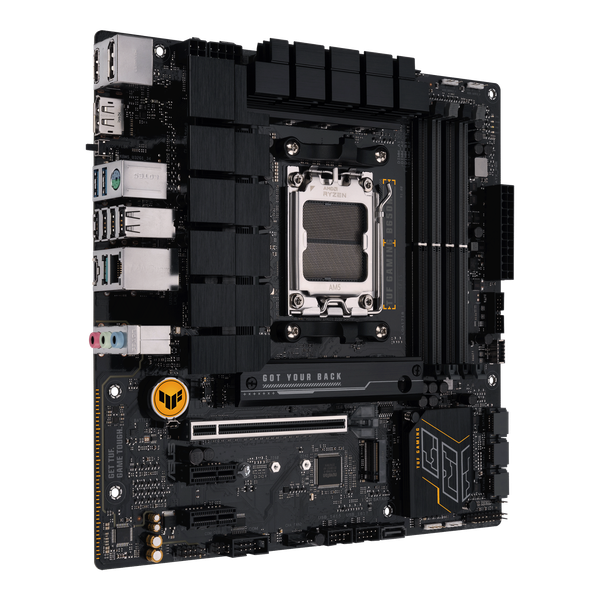

Mainboard ASUS TUF Gaming B650M-E DDR5

Đóng
  • Bài viết đánh giá

⚙ THÔNG SỐ CƠ BẢN:

  • Socket: AMD AM5
  • Kích thước: ATX
  • Khe cắm RAM: 4 khe DDR5

🛒 Xem thêm các sản phẩm Mainboard - Bo mạch chủ tại đây

3,500,000₫

Mã sản phẩm: M.AS.B650M-E.TUF.GM.D5

    ⚙ THÔNG SỐ CƠ BẢN:

    • Socket: AMD AM5
    • Kích thước: ATX
    • Khe cắm RAM: 4 khe DDR5

    🛒 Xem thêm các sản phẩm Mainboard - Bo mạch chủ tại đây

    Xem thêm cấu hình chi tiết

    Gọi đặt mua 1900 0243 (8:30 - 21:00)

    MÔ TẢ SẢN PHẨM

    Thông số kỹ thuật

    ModelTUF GAMING B650M-E
    CPU

    AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*
    * Refer to www.asus.com for CPU support list.

    ChipsetAMD B650
    Memory

    4 x DIMM slots, Max. 192GB, DDR5 7600+(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory*
    Dual Channel Memory Architecture
    Supports AMD Extended Profiles for Overclocking (EXPO™)
    OptiMem II
    * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/
    * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

    Graphics

    2 x DisplayPort**
    1 x HDMI<sup>TM</sup> port***
    * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
    ** Supports max. 8K@60Hz as specified in DisplayPort 1.4.
    *** Supports 4K@60Hz as specified in HDMI 2.1.

    Expansion Slots

    AMD Ryzen™ 9000 & 7000 Series Desktop Processors*
    1 x PCIe 4.0 x16 slot (supports x16 mode)
    AMD Ryzen™ 8000 Series Desktop Processors
    1 x PCIe 4.0 x16 slot (supports x8/x4 mode)<br>AMD B650 Chipset<br>2 x PCIe 4.0 x1 slots<br>* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).<br> Specifications vary by CPU types.
    - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

    Storage

    Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports<br>AMD Ryzen™ 9000 & 7000 Series Desktop Processors*
    M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
    M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
    AMD Ryzen™ 8000 Series Desktop Processors
    M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
    M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)<br>AMD B650 Chipset<br>4 x SATA 6Gb/s ports<br>* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.<br> Specifications vary by CPU types.

    Ethernet

    1 x Realtek 2.5Gb Ethernet
    TUF LANGuard

    USB

    Rear USB (Total 8 ports)
    2 x USB 3.2 Gen 2 (10G) ports (1 x Type-A + 1 x USB Type-C<sup>®</sup>)
    2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)
    4 x USB 2.0 ports (4 x Type-A)
    Front USB (Total 7 ports)
    1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C<sup>®</sup>)
    1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
    2 x USB 2.0 headers support 4 additional USB 2.0 ports

    Audio

    Realtek 7.1 Surround Sound High Definition Audio CODEC*
    - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
    - Supports up to 24-Bit/192 kHz playback"
    Audio Features
    - Audio Shielding
    - Premium audio capacitors
    - Dedicated audio PCB layers
    * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

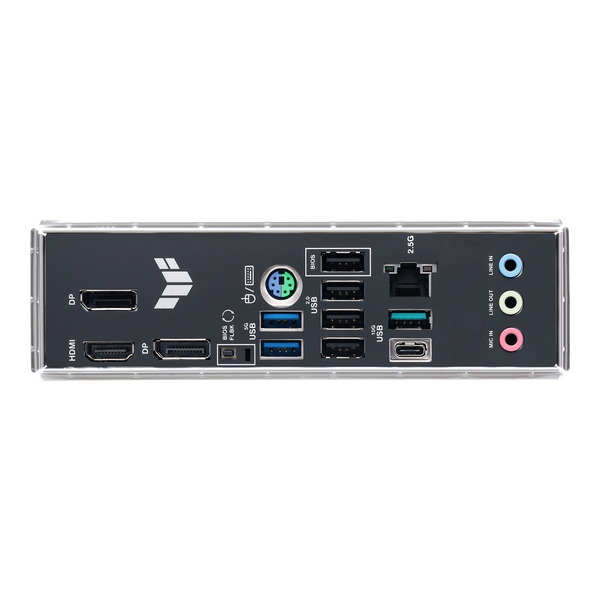

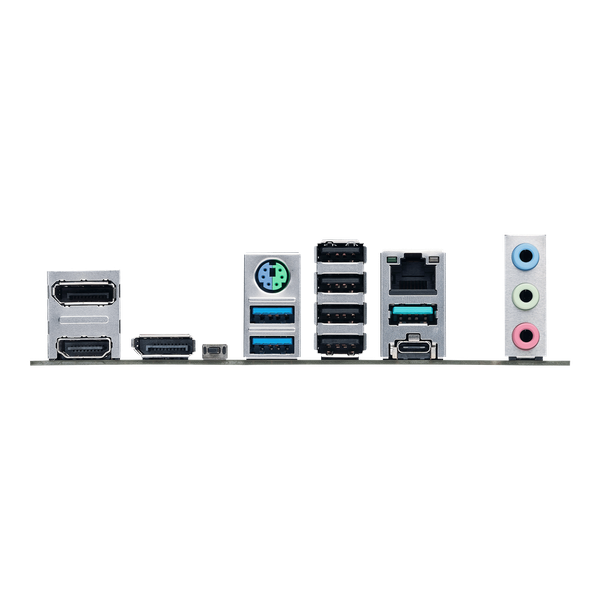

    Back Panel I/O Ports

    2 x USB 3.2 Gen 2 (10G) ports (1 x Type-A + 1 x USB Type-C<sup>®</sup>)
    2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)
    4 x USB 2.0 ports (4 x Type-A)
    2 x DisplayPort
    1 x HDMI<sup>TM</sup> port
    1 x Realtek 2.5Gb Ethernet port
    3 x Audio jacks
    1 x BIOS FlashBack™ button
    1 x PS/2 Keyboard/Mouse combo port

    Internal I/O Connectors

    Fan and Cooling related
    1 x 4-pin CPU Fan header
    1 x 4-pin CPU OPT Fan header
    1 x 4-pin AIO Pump header
    2 x 4-pin Chassis Fan headers
    Power related
    1 x 24-pin Main Power connector
    1 x 8-pin +12V Power connector
    1 x 4-pin +12V Power connector
    Storage related
    2 x M.2 slots (Key M)
    4 x SATA 6Gb/s ports
    USB
    1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C<sup>®</sup>)
    1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
    2 x USB 2.0 headers support 4 additional USB 2.0 ports
    Miscellaneous
    3 x Addressable Gen 2 headers
    1 x Aura RGB header
    1 x Clear CMOS header
    1 x COM Port header
    1 x Front Panel Audio header (AAFP)
    1 x 20-3 pin System Panel header with Chassis intrude function

    Special Features

    ASUS TUF PROTECTION
    - DIGI+ VRM (- Digital power design with DrMOS)
    - ESD Guards
    - TUF LANGuard
    - Overvoltage Protection
    - SafeSlot Core+
    - Stainless-Steel Back I/O
    ASUS Q-Design
    - M.2 Q-Latch
    - Q-DIMM
    - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
    - Q-Slot
    ASUS Thermal Solution
    - M.2 heatsink
    - VRM heatsink design
    ASUS EZ DIY
    - BIOS FlashBack™ button
    - BIOS FlashBack™ LED
    - ProCool
    - Pre-mounted I/O shield
    - SafeSlot Core+
    - SafeDIMM
    Aura Sync
    - Aura RGB header
    - Addressable Gen 2 headers

    Software Features

    ASUS Exclusive Software
    Armoury Crate
    - Aura Creator
    - Aura Sync
    - Fan Xpert 2+
    - Power Saving
    - Two-Way AI Noise Cancelation
    AI Suite 3
    - TurboV EVO
    - DIGI+ VRM
    - PC Cleaner
    TUF GAMING CPU-Z
    DTS Audio Processing
    Norton 360 for Gamers(60 Days Free Trial)
    WinRAR
    UEFI BIOS
    ASUS EZ DIY
    - ASUS CrashFree BIOS 3
    - ASUS EZ Flash 3
    - ASUS UEFI BIOS EZ Mode

    BIOS

    256 Mb Flash ROM, UEFI AMI BIOS

    ManageabilityWOL by PME, PXE

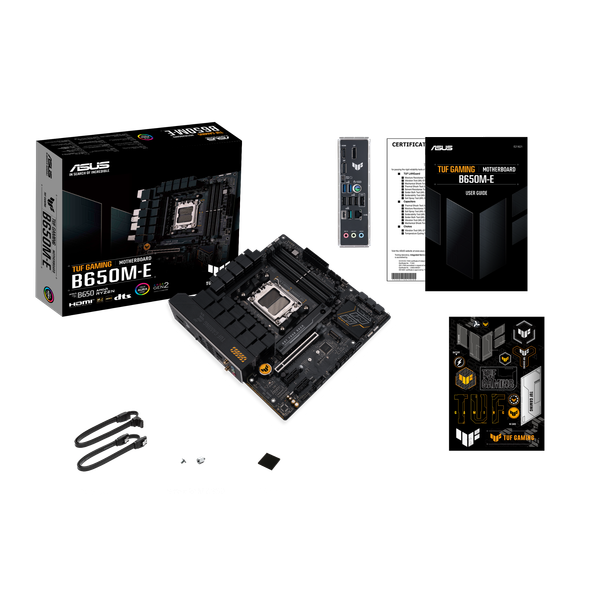

    AccessoriesCables
    2 x SATA 6Gb/s cables
    Miscellaneous
    1 x I/O Shield
    1 x TUF Gaming sticker
    1 x M.2 Q-Latch
    Dimensions

    ATX Form Factor
    30.5 cm x 24.4 cm (12.0 in x 9.6 in)

    Operating System

    Windows 10 x64, Windows 11 x64
