Mainboard ASRock H610M-H2/M.2 D5

Đóng
  • Bài viết đánh giá

⚙ THÔNG SỐ CƠ BẢN:

  • Supports 14th, 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700)
  • 3+1+1 Phase Power Design
  • 2 x DDR5 DIMMs
    Supports Dual Channel, up to 5600*
  • 1 PCIe 4.0 x16, 1 PCIe 3.0 x1
  • Graphics Output Options: 2 HDMI
  • Realtek ALC897 7.1 CH HD Audio Codec
  • 4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4)
  • 4 USB 3.2 Gen1 (2 Rear, 2 Front)
    6 USB 2.0 (4 Rear, 2 Front)
  • Realtek Gigabit LAN

🛒 Xem thêm các sản phẩm Mainboard - Bo mạch chủ tại đây

1,699,000₫

1,833,000₫

-7%

Mã sản phẩm: M.AR.H610M.H2.M2.D5

      ⚙ THÔNG SỐ CƠ BẢN:

      • Supports 14th, 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700)
      • 3+1+1 Phase Power Design
      • 2 x DDR5 DIMMs
        Supports Dual Channel, up to 5600*
      • 1 PCIe 4.0 x16, 1 PCIe 3.0 x1
      • Graphics Output Options: 2 HDMI
      • Realtek ALC897 7.1 CH HD Audio Codec
      • 4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4)
      • 4 USB 3.2 Gen1 (2 Rear, 2 Front)
        6 USB 2.0 (4 Rear, 2 Front)
      • Realtek Gigabit LAN

      🛒 Xem thêm các sản phẩm Mainboard - Bo mạch chủ tại đây

      Xem thêm cấu hình chi tiết

      Gọi đặt mua 1900 0243 (8:30 - 21:00)

      MÔ TẢ SẢN PHẨM

      Thông số kỹ thuật

      Unique Feature

      Superb Productivity
      - Dual Channel DDR5
      Rock-Solid Durability
      - 3+1+1 Power Phase
      EZ Update
      - ASRock Auto Driver Installer

      CPU

      - Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
      - Supports Intel® Hybrid Technology
      - Supports Intel® Turbo Boost Max 3.0 Technology

      Chipset- Intel® H610
      Memory

      - Dual Channel DDR5 Memory Technology
      - 2 x DDR5 DIMM Slots
      - 13th Gen Intel® Core™ Processors support DDR5 non-ECC, un-buffered memory up to 5600
      - 12th Gen Intel® Core™ Processors support DDR5 non-ECC, un-buffered memory up to 4800
      - Max. capacity of system memory: 96GB
      - Supports Intel® Extreme Memory Profile (XMP) 3.0
      Actual support may vary by CPU

      BIOS

      - 128Mb AMI UEFI Legal BIOS with GUI support

      Graphics

      - Intel® Xe Graphics Architecture (Gen 12)
      - 2 x HDMI 2.1 TMDS Compatible, support HDCP 2.3 and max. resolution up to 4K 60Hz
      Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

      Audio

      - 7.1 CH HD Audio (Realtek ALC897 Audio Codec)

      LAN

      - Gigabit LAN 10/100/1000 Mb/s
      - Realtek 8111H

      Slots

      CPU:
      - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode
      Chipset:
      - 1 x PCIe 3.0 x1 Slot (PCIE2)
      Supports NVMe SSD as boot disks

      Storage

      Chipset:
      - 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen3x4 (32 Gb/s) mode
      - 4 x SATA3 6.0 Gb/s Connectors
      Supports NVMe SSD as boot disks

      USB

      - 4 x USB 3.2 Gen1 Type-A (2 Rear, 2 Front)
      - 6 x USB 2.0 (4 Rear, 2 Front)
      All USB ports support ESD Protection

      Connector

      - 1 x SPI TPM Header
      - 1 x Chassis Intrusion and Speaker Header
      - 1 x CPU Fan Connector (4-pin)
      - 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
      - 1 x 24 pin ATX Power Connector
      - 1 x 8 pin 12V Power Connector
      - 1 x Front Panel Audio Connector
      - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports)
      - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
      CPU_FAN1 supports the fan power up to 1A (12W).
      CHA_FAN1/WP supports the fan power up to 2A (24W). CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use

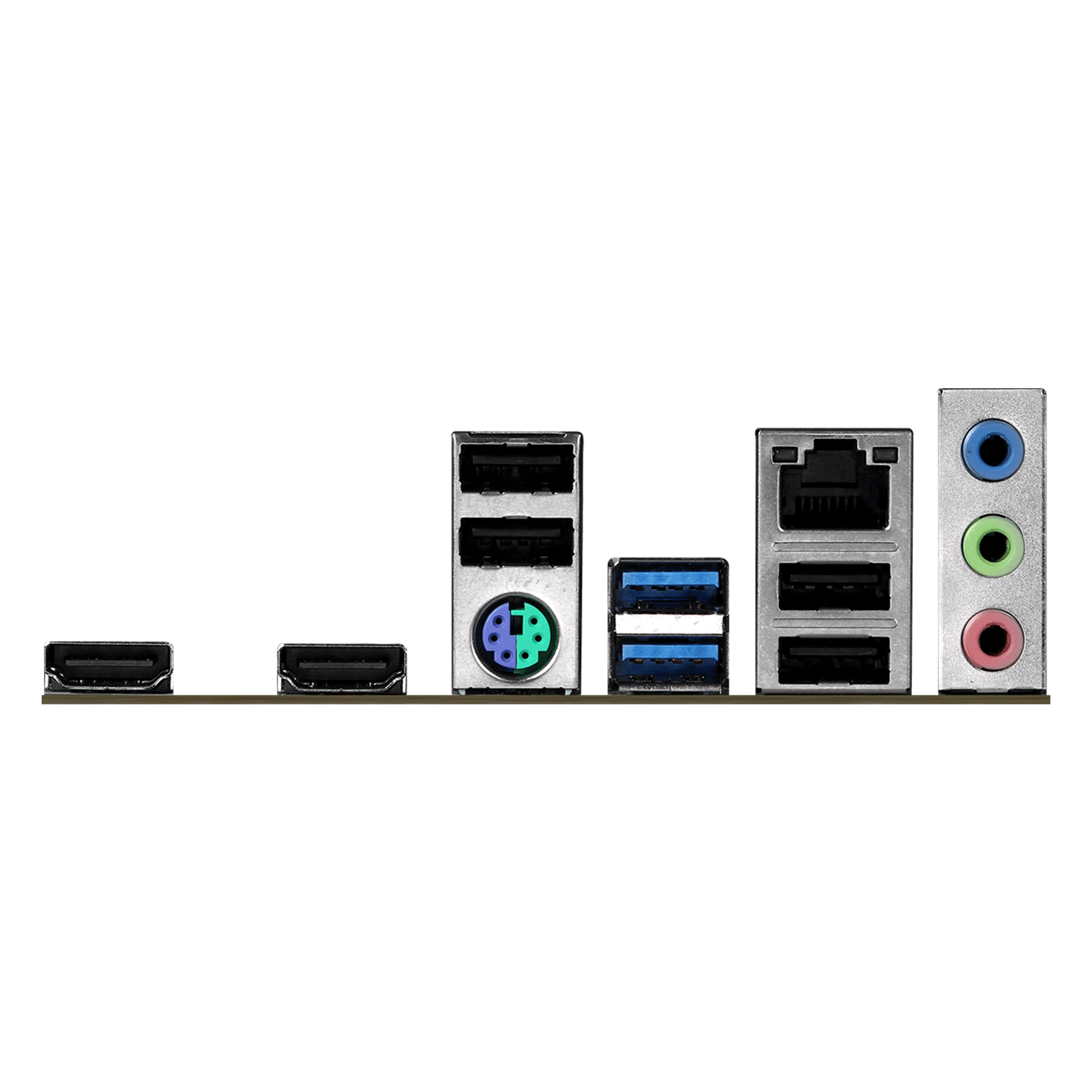

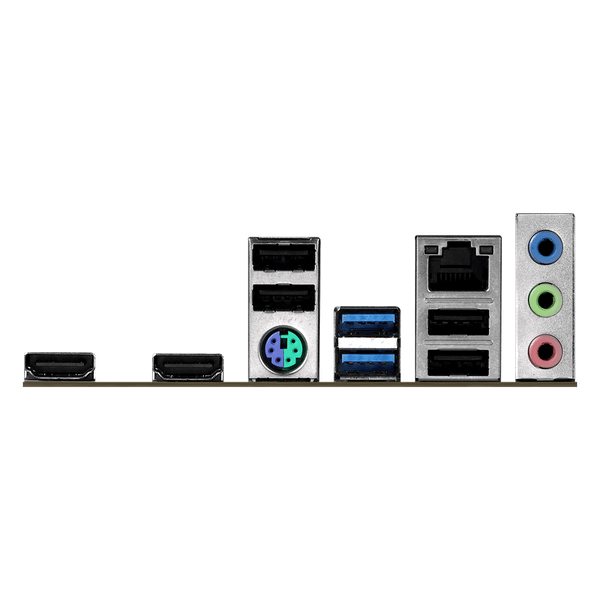

      Rear Panel I/O

      - 1 x PS/2 Mouse/Keyboard Port
      - 2 x HDMI Ports
      - 2 x USB 3.2 Gen1 Type-A Ports
      - 4 x USB 2.0 Ports
      - 1 x RJ-45 LAN Port
      - HD Audio Jacks: Line in / Front Speaker / Microphone

      Software and UEFI

      Software
      - ASRock Motherboard Utility (A-Tuning)
      UEFI
      - ASRock EZ Mode
      - ASRock Full HD UEFI
      - ASRock My Favorites in UEFI
      - ASRock Auto Driver Installer
      - ASRock Instant Flash
      These utilities can be downloaded from ASRock Live Update & APP Shop.

      Accessories- 1 x User Manual
      - 1 x I/O Shield
      - 2 x SATA Data Cables
      - 1 x Screw for M.2 Socket
      Form Factor

      - Micro ATX Form Factor: 8.66-in x 7.6-in, 22.0 cm x 19.3 cm

      OS

      - Microsoft Windows® 10 64-bit / 11 64-bit

      Certifications

      - FCC, CE
      - ErP/EuP ready (ErP/EuP ready power supply is required)
