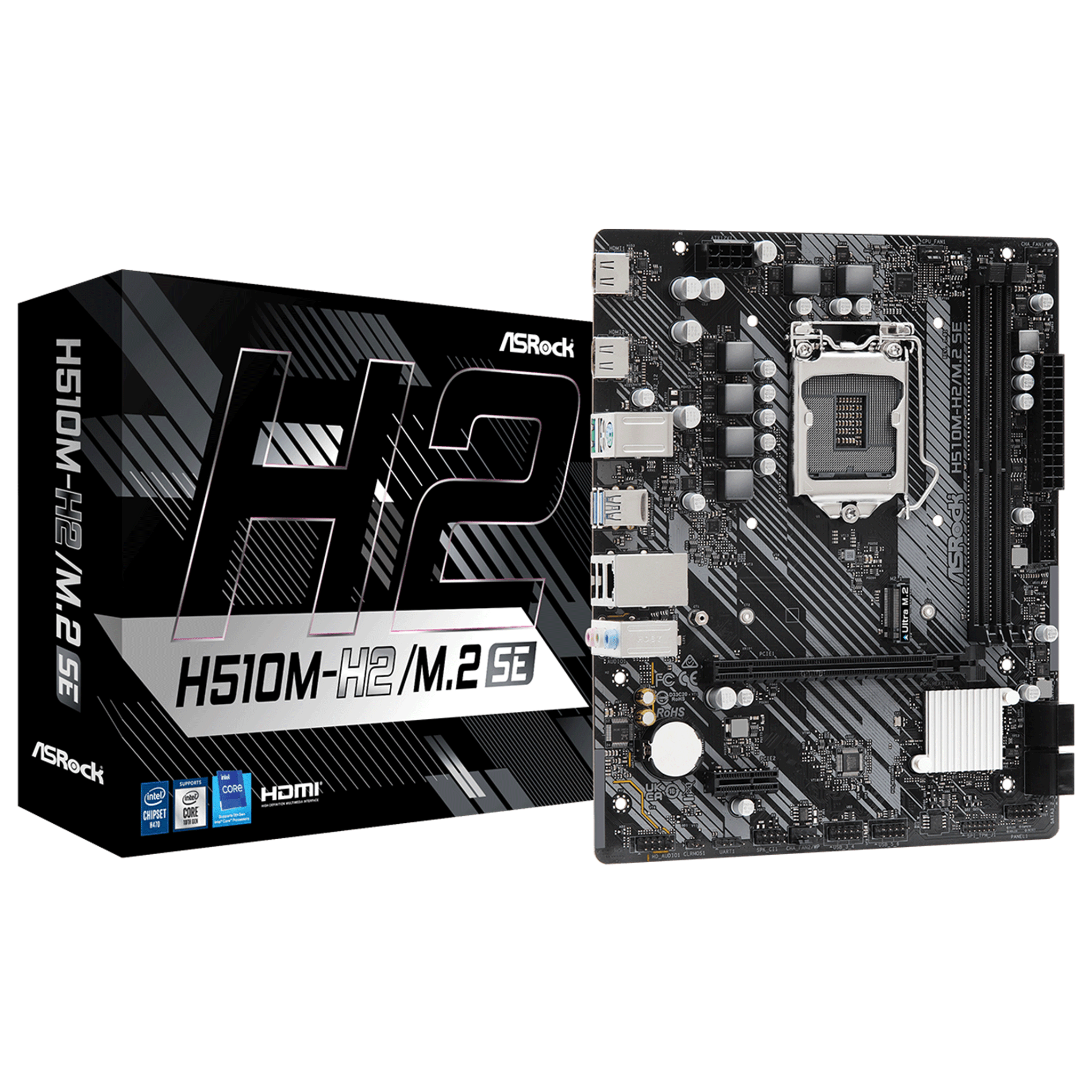

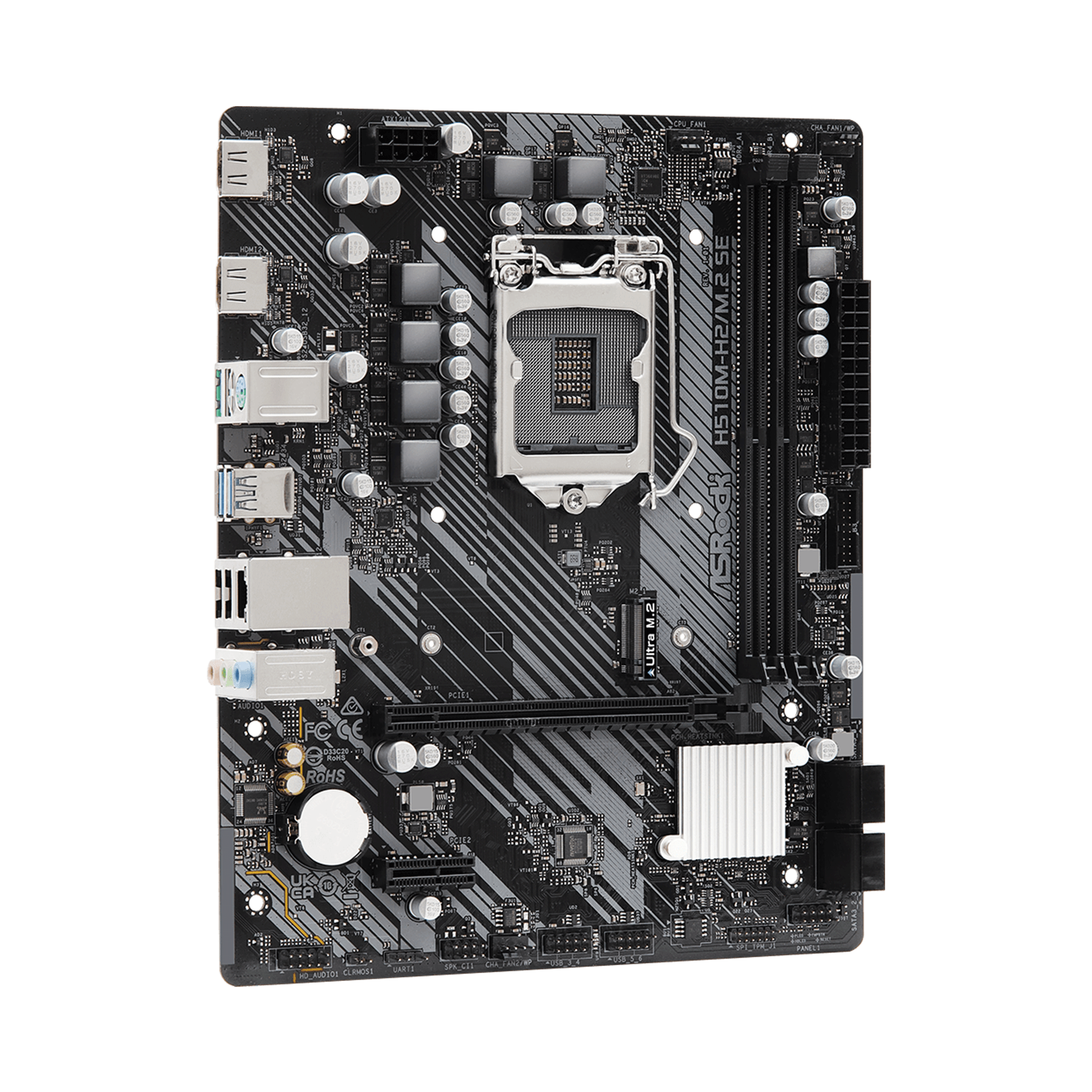

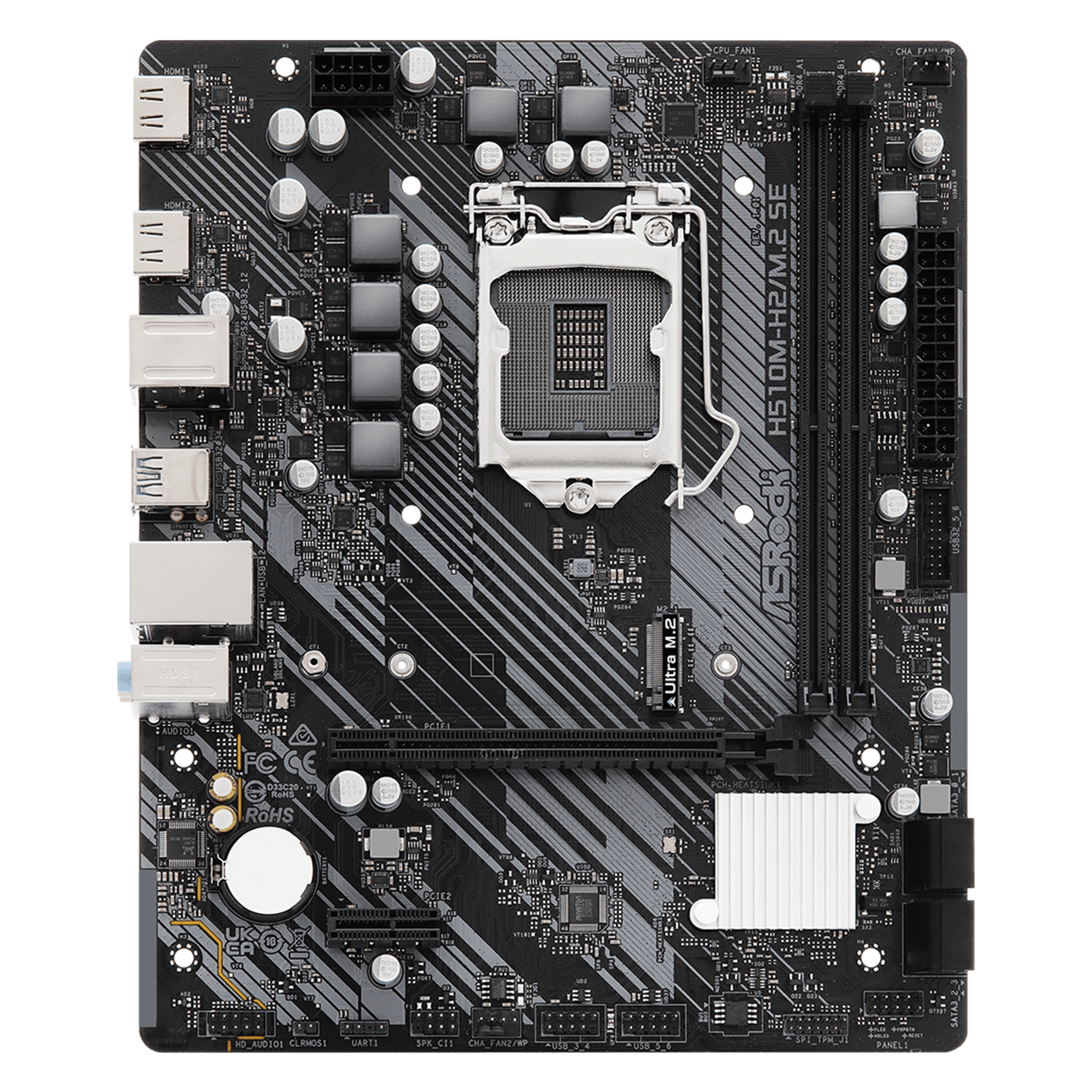

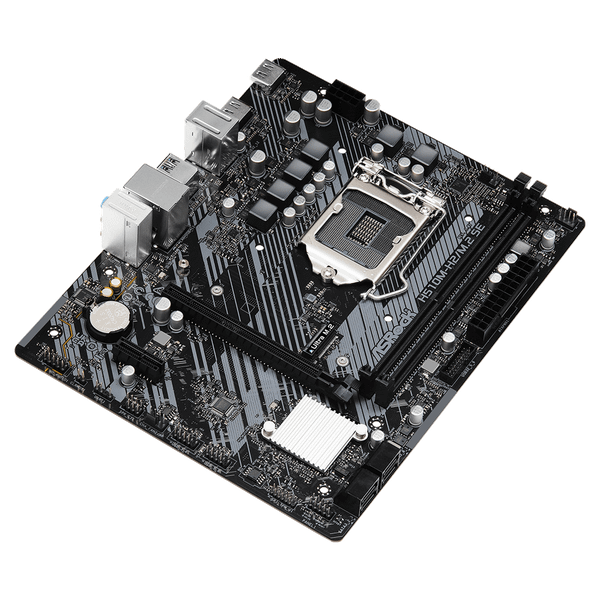

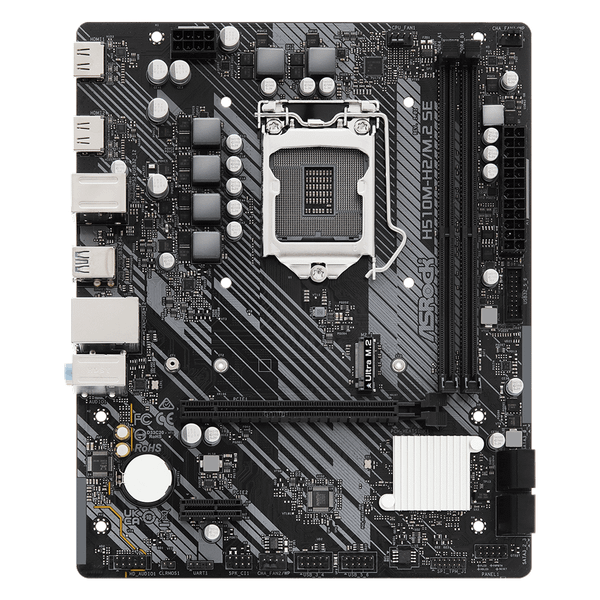

Mainboard ASRock H510M-H2/M.2 SE

Đóng
  • Bài viết đánh giá

⚙ THÔNG SỐ CƠ BẢN:

  • Supports 10th Gen & 11th Gen Intel® Core™ Processors (LGA1200)
  • 4 Power Phase Design
  • Supports DDR4 3200 MHz*
  • Intel® H470 Chipset
  • 1 PCIe 4.0 x16, 1 PCIe 3.0 x1
  • Graphics Output Options: 2 HDMI
  • Realtek ALC897 7.1 CH HD Audio Codec
  • 4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3)
  • 6 USB 3.2 Gen1 (4 Rear, 2 Front),
    6 USB 2.0 (2 Rear, 4 Front)
  • Realtek Gigabit LAN

🛒 Xem thêm các sản phẩm Mainboard - Bo mạch chủ tại đây

1,290,000₫

1,390,000₫

-7%

Mã sản phẩm: M.AR.H510M-H2.M2.SE

    ⚙ THÔNG SỐ CƠ BẢN:

    • Supports 10th Gen & 11th Gen Intel® Core™ Processors (LGA1200)
    • 4 Power Phase Design
    • Supports DDR4 3200 MHz*
    • Intel® H470 Chipset
    • 1 PCIe 4.0 x16, 1 PCIe 3.0 x1
    • Graphics Output Options: 2 HDMI
    • Realtek ALC897 7.1 CH HD Audio Codec
    • 4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3)
    • 6 USB 3.2 Gen1 (4 Rear, 2 Front),
      6 USB 2.0 (2 Rear, 4 Front)
    • Realtek Gigabit LAN

    🛒 Xem thêm các sản phẩm Mainboard - Bo mạch chủ tại đây

    Xem thêm cấu hình chi tiết

    Gọi đặt mua 1900 0243 (8:30 - 21:00)

    MÔ TẢ SẢN PHẨM

    Thông số kỹ thuật

    Unique FeatureRock-Solid Durability
     - 4 Power Phase
    EZ Update

    - ASRock Auto Driver Installer

    CPU

    - Supports 10th Gen & 11th Gen Intel® Core™ Processors (LGA1200)



    - Supports Intel® Turbo Boost Max 3.0 Technology

    Chipset- Intel® H470
    Memory

    - Dual Channel DDR4 Memory Technology

     - 2 x DDR4 DIMM Slots


    - Supports DDR4 3200 / 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory*



    - Supports ECC UDIMM memory modules (operate in non-ECC mode)



    - Max. capacity of system memory: 64GB**



    - Supports Intel® Extreme Memory Profile (XMP) 2.0



    - 15μ Gold Contact in DIMM Slots



    * 11th Gen Intel® Core™ (i9/i7/i5) support DDR4 3200 natively; Core™ (i3), Pentium® and Celeron® support DDR4 2666 natively.



    10th Gen Intel® Core™ (i9/i7) support DDR4 2933 natively; Core™ (i5/i3), Pentium® and Celeron® support DDR4 2666 natively.



    **Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.

    BIOS

    - 128Mb AMI UEFI Legal BIOS with GUI support

    Graphics- 2 x HDMI


    Intel® 11th Gen Processors support HDMI 2.0, HDCP 2.3 and max. resolution up to 4K 60Hz



    Intel® 10th Gen Processors support HDMI 1.4, HDCP 2.3 and max. resolution up to 4K 30Hz



    * Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.



    Graphics specifications may vary between CPU types.

    Audio

    - 7.1 CH HD Audio (Realtek ALC897 Audio Codec)

    LAN

    - Gigabit LAN 10/100/1000 Mb/s

     - Realtek 8111H
    Slots

    Intel® 11th Gen & 10th Gen Processors:



    - 1 x PCIe 4.0 x16 Slot (PCIE1)*

     Intel® H470 Chipset:


    - 1 x PCIe 3.0 x1 Slot (PCIE2)**



    * Intel® 11th Gen Processors support PCIe 4.0 x16



    Intel® 10th Gen Processors support PCIe 3.0 x16



    ** Supports NVMe SSD as boot disks

    StorageChipset:


    - 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes*



    - 4 x SATA3 6.0 Gb/s Connectors



    * Supports Intel® Optane™ Technology



    Supports NVMe SSD as boot disks

    RAID

    - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

    USB

    - 6 x USB 3.2 Gen1 (4 Rear, 2 Front)



    - 6 x USB 2.0 (2 Rear, 4 Front)



    * All USB ports support ESD Protection

    Connector- 1 x SPI TPM Header


    - 1 x Chassis Intrusion and Speaker Header



    - 1 x CPU Fan Connector (4-pin)*



    - 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)**



    - 1 x 24 pin ATX Power Connector



    - 1 x 8 pin 12V Power Connector



    - 1 x Front Panel Audio Connector



    - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)



    - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)



    *CPU_FAN1 supports the fan power up to 1A (12W).



    ** CHA_FAN1~2/WP support the fan power up to 2A (24W).



    CHA_FAN1~2/WP can auto detect if 3-pin or 4-pin fan is in use.

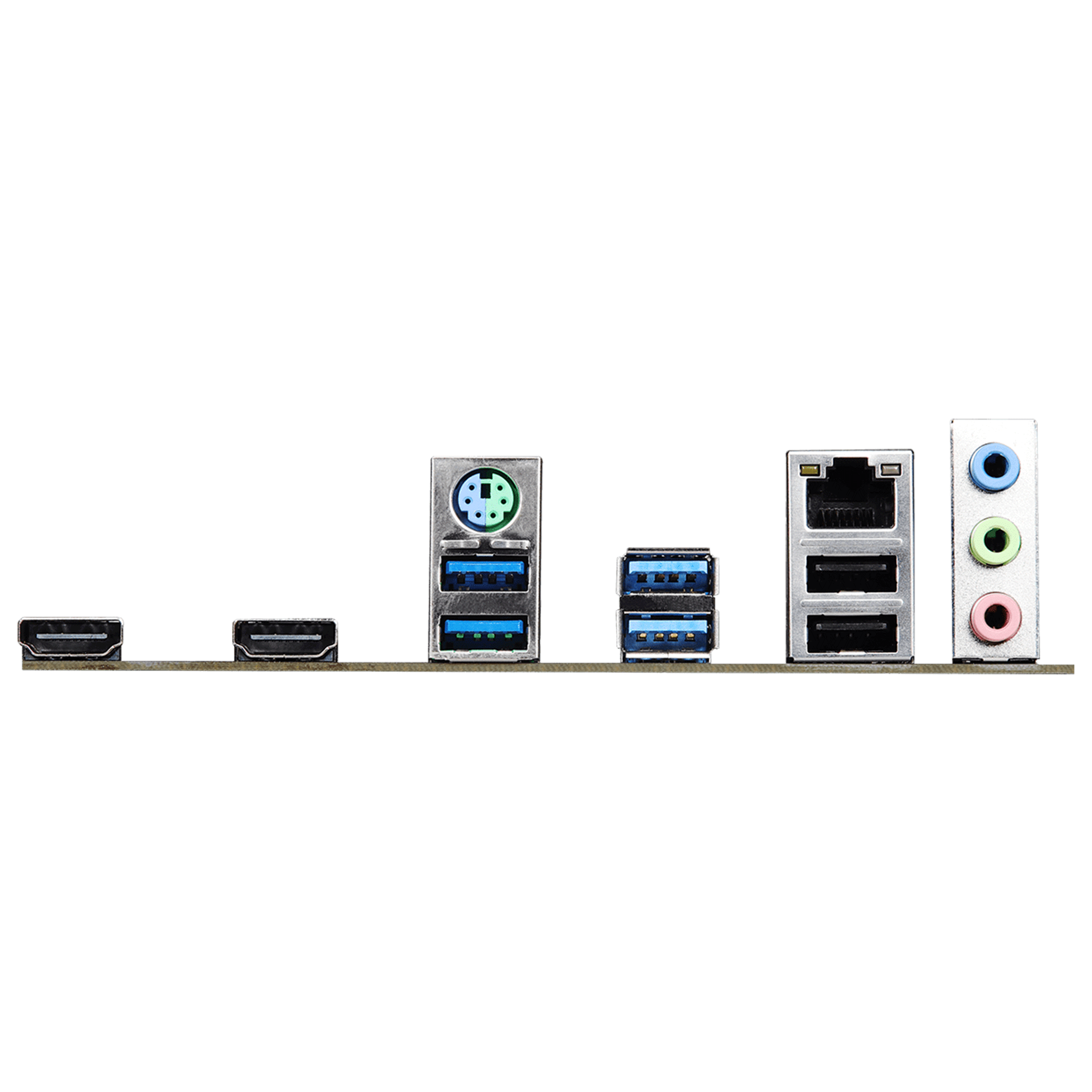

    Rear Panel I/O

    - 1 x PS/2 Mouse/Keyboard Port

     - 2 x HDMI Ports
     - 2 x USB 2.0 Ports
     - 4 x USB 3.2 Gen1 Ports
     - 1 x RJ-45 LAN Port


    - HD Audio Jacks: Line in / Front Speaker / Microphone

    Software and UEFI

    Software


    - ASRock Motherboard Utility (A-Tuning)

     - ASRock XFast LAN
     UEFI
     - ASRock EZ Mode
     - ASRock Full HD UEFI


    - ASRock My Favorites in UEFI



    - ASRock Auto Driver Installer

     - ASRock Instant Flash


    *These utilities can be downloaded from ASRock Live Update & APP Shop.

    Accessories- 1 x User Manual
     - 1 x I/O Shield
     - 2 x SATA Data Cables
     - 1 x Screw for M.2 Socket
    Form Factor

    - Micro ATX Form Factor: 9.1-in x 7.36-in, 23.1 cm x 18.7 cm

    OS

    - Microsoft® Windows® 10 64-bit / 11 64-bit

    Certifications- FCC, CE


    - ErP/EuP ready (ErP/EuP ready power supply is required)
