Mainboard ASRock B760M Steel Legend WiFi QSD – TINHOCNGOISAO.COM

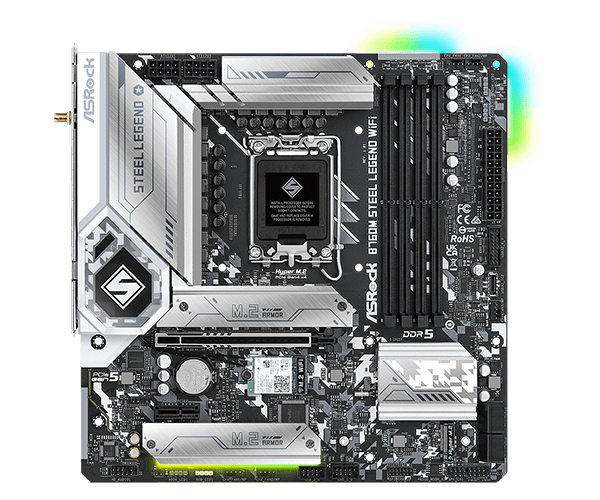

Mainboard ASRock B760M Steel Legend WiFi QSD

Xem tất cả điểm nổi bật (1/ )
Đóng
Loại sản phẩm Mainboard Bo Mạch Chủ
Hãng sản xuất ASRock
Model B760M Steel Legend Wifi
Hỗ trợ CPU
- Hỗ trợ hệ thứ 13 & 12 ( LGA1700 ) Bộ xử lý Intel Core
- Hỗ trợ Công nghệ Intel Hybrid
- Hỗ trợ Công nghệ Intel Turbo Boost Max 3.0
- Hỗ trợ Intel Thermal Velocity Boost (TVB)
- Hỗ trợ Công nghệ tăng cường thích ứng Intel (ABT)
- Hỗ trợ Công cụ ASRock Hyper BCLK
Chipset Intel B760
RAM - Công nghệ bộ nhớ kênh đôi DDR5
- 4 khe cắm DIMM DDR5
- Hỗ trợ bộ nhớ DDR5 non-ECC, un-buffered lên đến 7200+(OC) *
- Tối đa. Dung lượng bộ nhớ hệ thống: 128GB
- Hỗ trợ Intel® Extreme Memory Profile (XMP) 3.0
BIOS BIOS hợp pháp AMI UEFI 128Mb có hỗ trợ GUI
Đồ họa
- Intel® Xe Graphics Architecture (Gen 12)
- 1 x eDP 1.4, supports max. resolution up to Full HD 60Hz
- 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
Âm thanh Âm thanh 7.1 CH HD (Codec âm thanh Realtek ALC897)
Nahimic Audio
LAN
2.5 Gigabit LAN 10/100/1000/2500 Mb/s
Dragon RTL8125BG
Supports Phantom Gaming LAN Software
  • Smart Auto Adjust Bandwidth Control
  • Visual User Friendly UI
  • Visual Network Usage Statistics
  • Optimized Default Setting for Game, Browser, and Streaming Modes
  • User Customized Priority Control
Mạng không dây
- 802.11ax Wi-Fi 6E Module
- Supports IEEE 802.11a/b/g/n/ac/ax
- Supports Dual-Band 2x2 with extended 6GHz band support*
- 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
- Supports Bluetooth + High speed class II
- Supports MU-MIMO
Khe mở rộng CPU:
- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
Chipset:
- 1 x PCIe 4.0 x1 Slot (PCIE2)*
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)
- 15μ Gold Contact in VGA PCIe Slot (PCIE1)
Lưu trữ CPU:
- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
Chipset:
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
- 4 x SATA3 6.0 Gb/s Connectors
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB - 2 x USB 3.2 Gen2 Type-C (1 Rear, 1 Front)
- 1 x USB 3.2 Gen2 Type-A (Rear)
- 6 x USB 3.2 Gen1 (4 Rear, 2 Front)
- 6 x USB 2.0 (2 Rear, 4 Front)
Cổng kết nối bên trong - 1 x eDP Signal Connector
- 1 x SPI TPM Header
- 1 x Chassis Intrusion and Speaker Header
- 1 x RGB LED Header*
- 3 x Addressable LED Headers**
- 1 x CPU Fan Connector (4-pin)***
- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
- 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
- 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
- 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
- 1 x Front Panel Audio Connector
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
- 1 x Front Panel Type C USB 3.2 Gen2 Header (10 Gb/s)
Cổng kết nối phía sau - 2 x Antenna Ports
- 1 x PS/2 Mouse/Keyboard Port
- 1 x HDMI Port
- 1 x DisplayPort 1.4
- 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
- 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s)
- 4 x USB 3.2 Gen1 Ports
- 2 x USB 2.0 Ports
- 1 x RJ-45 LAN Port
- HD Audio Jacks: Line in / Front Speaker / Microphone
Kích thước ATX: 24,4 cm x 24,4 cm
Chứng chỉ FCC, CE
ErP / EuP sẵn sàng (cần có nguồn điện sẵn sàng ErP / EuP)

2,490,000₫

Mã sản phẩm: M.AR.B760M.SL.WF.D5.CU
    Loại sản phẩm Mainboard Bo Mạch Chủ
    Hãng sản xuất ASRock
    Model B760M Steel Legend Wifi
    Hỗ trợ CPU
    - Hỗ trợ hệ thứ 13 & 12 ( LGA1700 ) Bộ xử lý Intel Core
    - Hỗ trợ Công nghệ Intel Hybrid
    - Hỗ trợ Công nghệ Intel Turbo Boost Max 3.0
    - Hỗ trợ Intel Thermal Velocity Boost (TVB)
    - Hỗ trợ Công nghệ tăng cường thích ứng Intel (ABT)
    - Hỗ trợ Công cụ ASRock Hyper BCLK
    Chipset Intel B760
    RAM - Công nghệ bộ nhớ kênh đôi DDR5
    - 4 khe cắm DIMM DDR5
    - Hỗ trợ bộ nhớ DDR5 non-ECC, un-buffered lên đến 7200+(OC) *
    - Tối đa. Dung lượng bộ nhớ hệ thống: 128GB
    - Hỗ trợ Intel® Extreme Memory Profile (XMP) 3.0
    BIOS BIOS hợp pháp AMI UEFI 128Mb có hỗ trợ GUI
    Đồ họa
    - Intel® Xe Graphics Architecture (Gen 12)
    - 1 x eDP 1.4, supports max. resolution up to Full HD 60Hz
    - 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
    - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
    Âm thanh Âm thanh 7.1 CH HD (Codec âm thanh Realtek ALC897)
    Nahimic Audio
    LAN
    2.5 Gigabit LAN 10/100/1000/2500 Mb/s
    Dragon RTL8125BG
    Supports Phantom Gaming LAN Software
    • Smart Auto Adjust Bandwidth Control
    • Visual User Friendly UI
    • Visual Network Usage Statistics
    • Optimized Default Setting for Game, Browser, and Streaming Modes
    • User Customized Priority Control
    Mạng không dây
    - 802.11ax Wi-Fi 6E Module
    - Supports IEEE 802.11a/b/g/n/ac/ax
    - Supports Dual-Band 2x2 with extended 6GHz band support*
    - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
    - Supports Bluetooth + High speed class II
    - Supports MU-MIMO
    Khe mở rộng CPU:
    - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
    Chipset:
    - 1 x PCIe 4.0 x1 Slot (PCIE2)*
    - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)
    - 15μ Gold Contact in VGA PCIe Slot (PCIE1)
    Lưu trữ CPU:
    - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
    Chipset:
    - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
    - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
    - 4 x SATA3 6.0 Gb/s Connectors
    RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
    USB - 2 x USB 3.2 Gen2 Type-C (1 Rear, 1 Front)
    - 1 x USB 3.2 Gen2 Type-A (Rear)
    - 6 x USB 3.2 Gen1 (4 Rear, 2 Front)
    - 6 x USB 2.0 (2 Rear, 4 Front)
    Cổng kết nối bên trong - 1 x eDP Signal Connector
    - 1 x SPI TPM Header
    - 1 x Chassis Intrusion and Speaker Header
    - 1 x RGB LED Header*
    - 3 x Addressable LED Headers**
    - 1 x CPU Fan Connector (4-pin)***
    - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
    - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
    - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
    - 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
    - 1 x Front Panel Audio Connector
    - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
    - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
    - 1 x Front Panel Type C USB 3.2 Gen2 Header (10 Gb/s)
    Cổng kết nối phía sau - 2 x Antenna Ports
    - 1 x PS/2 Mouse/Keyboard Port
    - 1 x HDMI Port
    - 1 x DisplayPort 1.4
    - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
    - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s)
    - 4 x USB 3.2 Gen1 Ports
    - 2 x USB 2.0 Ports
    - 1 x RJ-45 LAN Port
    - HD Audio Jacks: Line in / Front Speaker / Microphone
    Kích thước ATX: 24,4 cm x 24,4 cm
    Chứng chỉ FCC, CE
    ErP / EuP sẵn sàng (cần có nguồn điện sẵn sàng ErP / EuP)
    Xem thêm cấu hình chi tiết
    SẮP VỀ HÀNG (Vui lòng liên hệ trực tiếp)
