⚙ THÔNG SỐ CƠ BẢN:

  • Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
  • 14+2+1 Power Phase, 80A Dr.MOS for Vcore
  • 4 x DDR5 DIMMs
    Supports Dual Channel, up to 7200+ (OC)
  • 1 PCIe 5.0 x16, 1 PCIe 3.0 x16, 1 PCIe 4.0 x1
  • Graphics Output Options: 1 HDMI, 1 DisplayPort
  • Realtek ALC4082 7.1 CH HD Audio Codec, Nahimic Audio
  • 4 SATA3, 1 Blazing M.2 (PCIe Gen5x4), 2 Hyper M.2 (PCIe Gen4x4)
  • 1 USB 3.2 Gen2x2 Type-C (Rear)
    1 USB 3.2 Gen1 Type-C (Front)
    1 USB 3.2 Gen2 Type-A (Rear)
    8 USB 3.2 Gen1 Type-A (4 Rear, 4 Front)
    8 USB 2.0 (4 Rear, 4 Front)
  • Dragon 2.5G LAN
  • 802.11axe WiFi 6E + Bluetooth
  • Supports ASRock Auto Driver Installer, BIOS Flashback

🛒 Xem thêm các sản phẩm Mainboard - Bo mạch chủ tại đây

Mainboard ASRock B650 Steel Legend WiFi

Mã sản phẩm: M.AR.B650.SL.WIFI

6,490,000₫

Khuyến mãi - ưu đãi Khuyến mãi - ưu đãi
    Gọi đặt mua: 1900 0243 (8:30 - 21:00)
    SẮP VỀ HÀNG (Vui lòng liên hệ trực tiếp)

    Thông số kỹ thuật

    ⚙ THÔNG SỐ CƠ BẢN:

    • Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
    • 14+2+1 Power Phase, 80A Dr.MOS for Vcore
    • 4 x DDR5 DIMMs
      Supports Dual Channel, up to 7200+ (OC)
    • 1 PCIe 5.0 x16, 1 PCIe 3.0 x16, 1 PCIe 4.0 x1
    • Graphics Output Options: 1 HDMI, 1 DisplayPort
    • Realtek ALC4082 7.1 CH HD Audio Codec, Nahimic Audio
    • 4 SATA3, 1 Blazing M.2 (PCIe Gen5x4), 2 Hyper M.2 (PCIe Gen4x4)
    • 1 USB 3.2 Gen2x2 Type-C (Rear)
      1 USB 3.2 Gen1 Type-C (Front)
      1 USB 3.2 Gen2 Type-A (Rear)
      8 USB 3.2 Gen1 Type-A (4 Rear, 4 Front)
      8 USB 2.0 (4 Rear, 4 Front)
    • Dragon 2.5G LAN
    • 802.11axe WiFi 6E + Bluetooth
    • Supports ASRock Auto Driver Installer, BIOS Flashback

    🛒 Xem thêm các sản phẩm Mainboard - Bo mạch chủ tại đây

    Xem thêm cấu hình chi tiết
    MÔ TẢ SẢN PHẨM

    Thông số kỹ thuật

    Superb Productivity

    - PCIe Gen5 (Graphics, M.2) - Dual Channel DDR5

    Rock-Solid Durability

    - 14+2+1 Power Phase, 80A Dr.MOS with Enlarged Heatsink Armor - Flexible Integrated I/O Shield - 20K Long-lasting Black Caps (high quality and conductive polymer capacitors)

    Ultrafast Connectivity

    - 2.5G LAN, 802.11axe Wi-Fi 6E Module

    EZ Update

    - BIOS Flashback Button - ASRock Auto Driver Installer

    EZ Troubleshooter

    - ASRock Post Status Checker

    CPU

    - Supports AMD Socket AM5 Ryzen™ 9000, 8000, and 7000 Series Processors*

    Chipset- AMD B650
    Memory

    - Dual Channel DDR5 Memory Technology - 4 x DDR5 DIMM Slots - Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC) - Max. capacity of system memory: 256GB - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules

    BIOS

    - 256Mb AMI UEFI Legal BIOS with GUI support

    Graphics

    Integrated AMD RDNA™ graphics (Actual support may vary by CPU) - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3, and max. resolution up to 4K 120Hz - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3, and max. resolution up to 4K 120Hz

    Audio

    - 7.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec) - Inpidual PCB Layers for R/L Audio Channel - Impedance Sensing on Rear Out port - Nahimic Audio

    LAN

    - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Supports Dragon 2.5G LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game, Browser, and Streaming Modes - User Customized Priority Control

    Wireless LAN

    - 802.11axe Wi-Fi 6E Module - Supports IEEE 802.11a/b/g/n/ac/ax/axe - Supports Dual-Band 2x2 with extended 6GHz band* support - 2 antennas to support 2 (Transmit) x 2 (Receive) persity technology - Supports Bluetooth 5.2 + High speed class II - Supports MU-MIMO

    Slots

    CPU: - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* Chipset: - 1 x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode* - 1 x PCIe 4.0 x1 Slot (PCIE3)* - 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module - Supports AMD CrossFire™ - 15μ Gold Contact in VGA PCIe Slot (PCIE1)

    Storage

    CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2230/2260/2280 PCIe Gen4x4 (64 Gb/s) mode* - 2 x SATA3 6.0 Gb/s Connectors** ASMedia ASM1061: - 2 x SATA3 6.0 Gb/s Connectors

    RAID

    - Supports RAID 0 and RAID 1 for SATA storage devices - Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices*

    USB

    CPU: - 1 x USB 3.2 Gen2 Type-A (Rear) - 2 x USB 3.2 Gen1 Type-A (2 Rear (USB32_12)) Chipset: - 1 x USB 3.2 Gen2x2 Type-C (Rear) - 1 x USB 3.2 Gen1 Type-C (Front) - 6 x USB 3.2 Gen1 Type-A (2 Rear (USB32_34), 4 Front) - 8 x USB 2.0 (4 Rear, 4 Front)

    Connector

    - 1 x SPI TPM Header - 1 x Power LED and Speaker Header - 1 x RGB LED Header* - 3 x Addressable LED Headers** - 1 x CPU Fan Connector (4-pin)*** - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** - 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) - 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) - 1 x Front Panel Type C USB 3.2 Gen1 Header

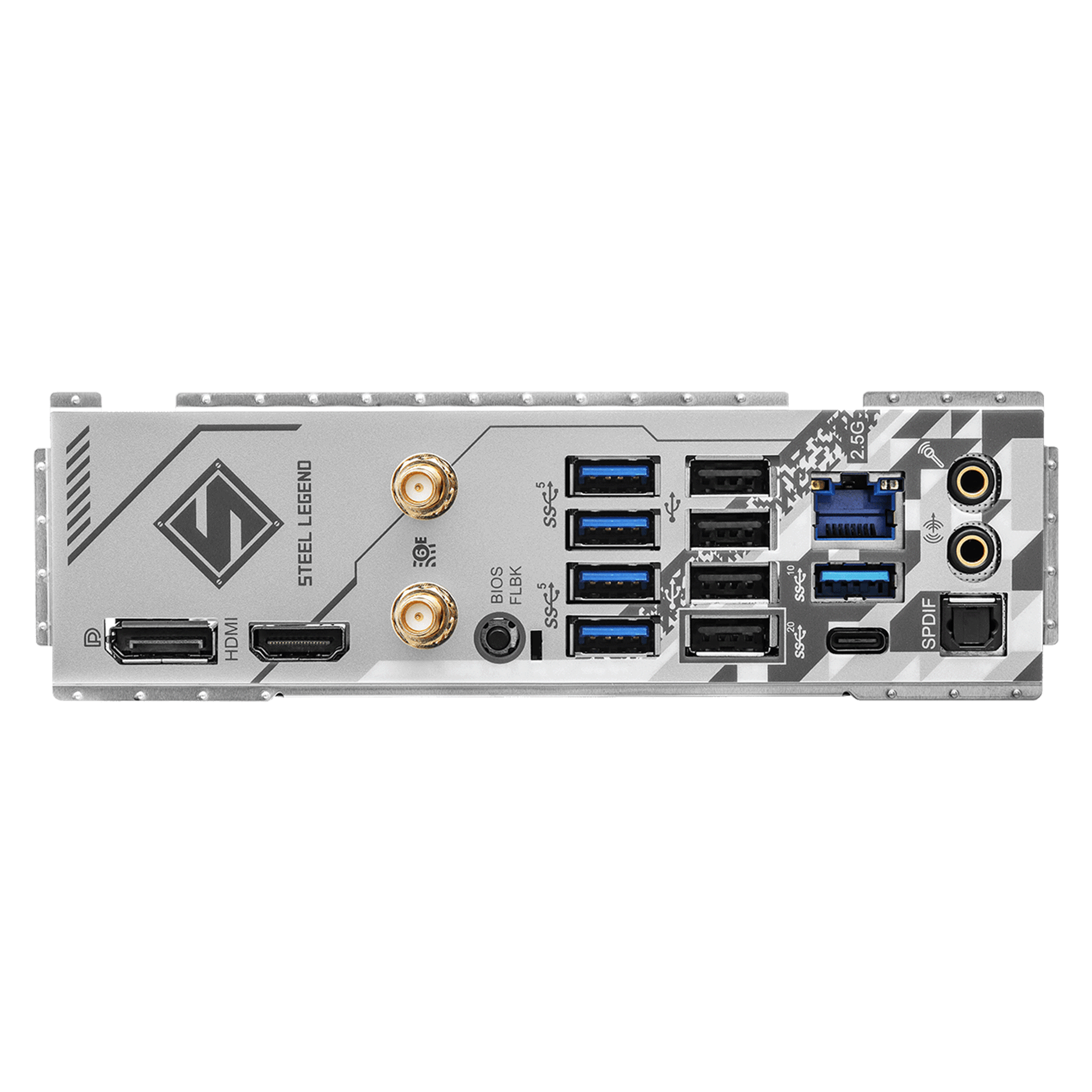

    Rear Panel I/O

    - 2 x Antenna Ports - 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x Optical SPDIF Out Port - 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s) - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) - 4 x USB 3.2 Gen1 Type-A Ports (USB32_34 support Ultra USB Power.) - 4 x USB 2.0 Ports - 1 x RJ-45 LAN Port - 1 x BIOS Flashback Button - 1 x Line Out Jack (Gold Audio Jack) - 1 x Microphone Input Jack (Gold Audio Jack)

    Software and UEFI

    Software: - ASRock Motherboard Utility (A-Tuning) - ASRock Dragon 2.5G LAN Software - ASRock Polychrome SYNC* UEFI: - ASRock Full HD UEFI - ASRock Auto Driver Installer - ASRock Instant Flash

    Accessories

    - 1 x User Manual - 2 x SATA Data Cables - 2 x ASRock WiFi 2.4/5/6 GHz Antennas - 3 x Screws for M.2 Sockets - 1 x Standoff for M.2 Socket

    Form Factor

    - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm - 8 Layer PCB

    OS

    - Microsoft Windows® 10 64-bit / 11 64-bit

    Certifications

    - FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required)
